12 Pole Heavy Duty Electrical Spider Box 300 X 287 X 230mm Dimension

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP12
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Protection Grade: IP65 Water Resistant Rated Current: 63 AMP
Rated Voltage: 250 VOLT Color: Black
Net Weight: 10 Kgs Product Size: 300x287x230 Mm
High Light:

spider power box

,

temp power spider box


Product Description

MP12 12 pole Water Resistant Mobile Power Distribution Box Heavy-duty Rubber Electrical Power Distribution Board 63 AMP



Application



The PowerHOUSE Terrapin Station Power Distribution Box meets stringent CE requirements for indoor or outdoor construction site applications where open-neutral ground fault protection and weathe resistance is needed. The box delivers power from electrical panels or portable generators and is ideal for power tools, portable lights, chargers and other equipment.



Markets Served



  • Motion Picture and Television Production
  • Outdoor Events
  • Exhibition center
  • military living quarters



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply panel mounted plug  1 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
   1 * 40A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 63A MCB
   1 * 32A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 40A MCB
   3 * 32A / 415V 3 pins IP67  CEE panel mounted socket  4 * 3P 32A MCB
   3 * 16A / 230V SCHUKO  socket outlets  3 * 1P 16A MCB



  • All electrical components like MCB, RCD, RCBO, industrial plugs, industrial sockets can be customized.



Product Pictures

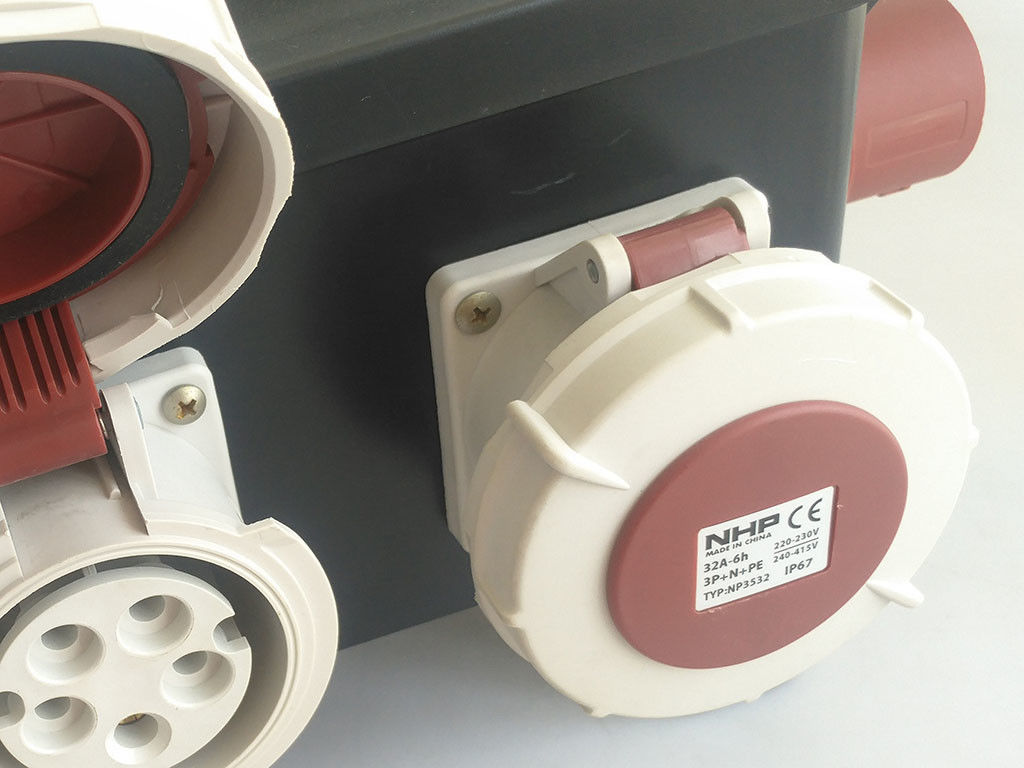

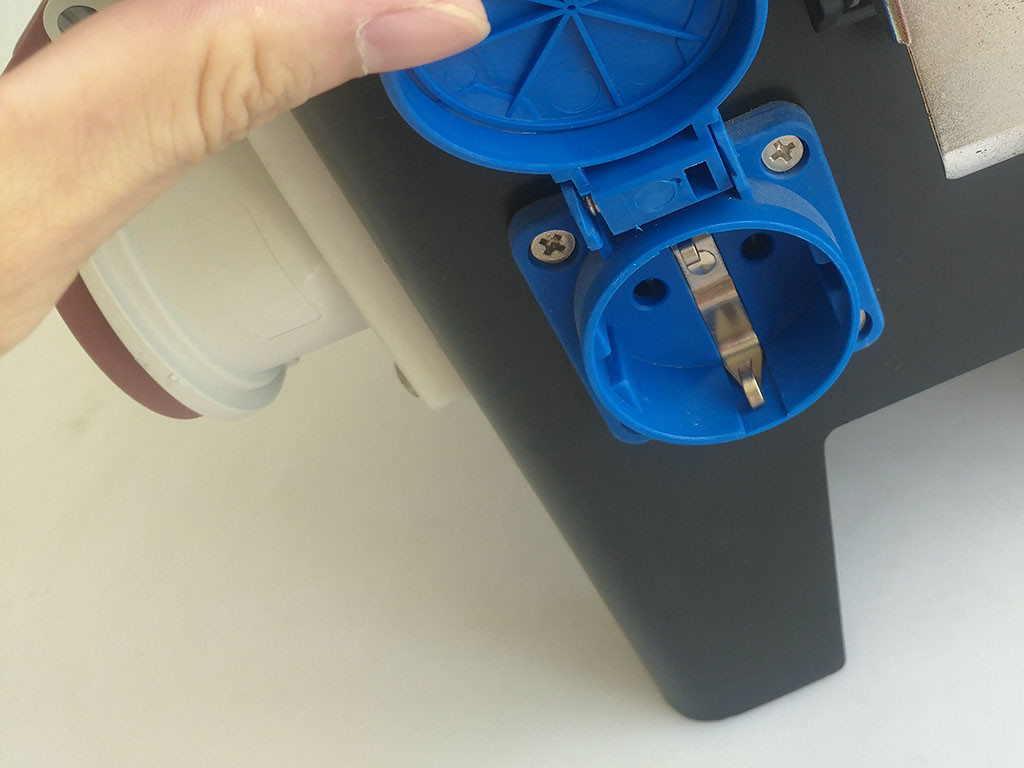

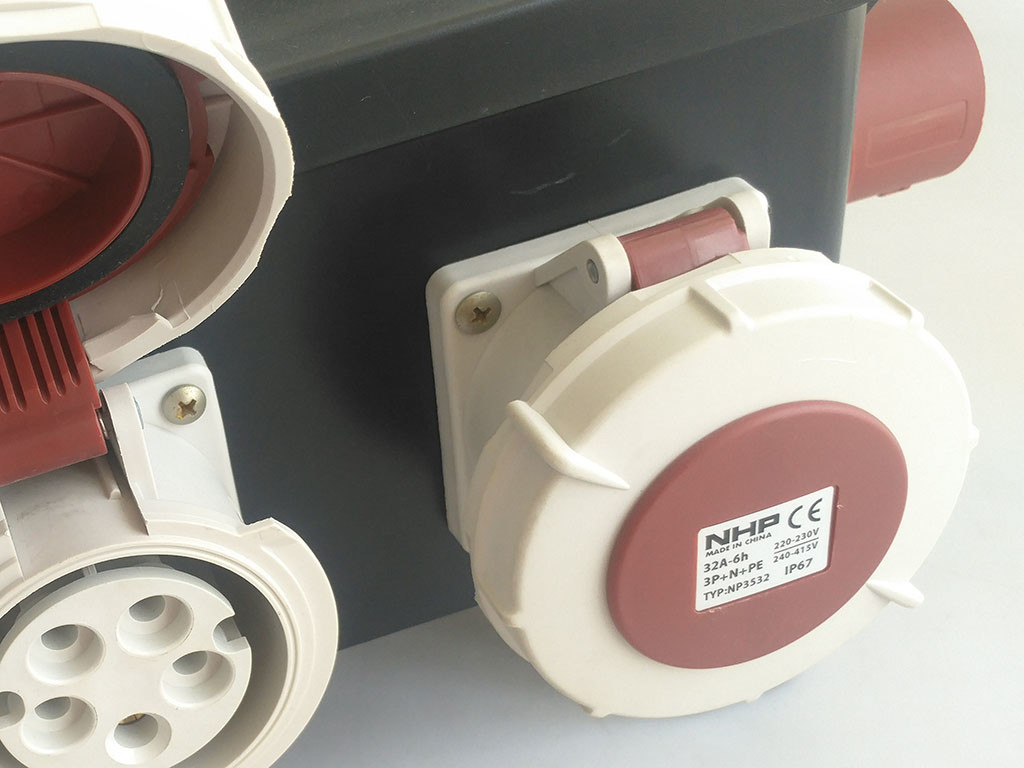

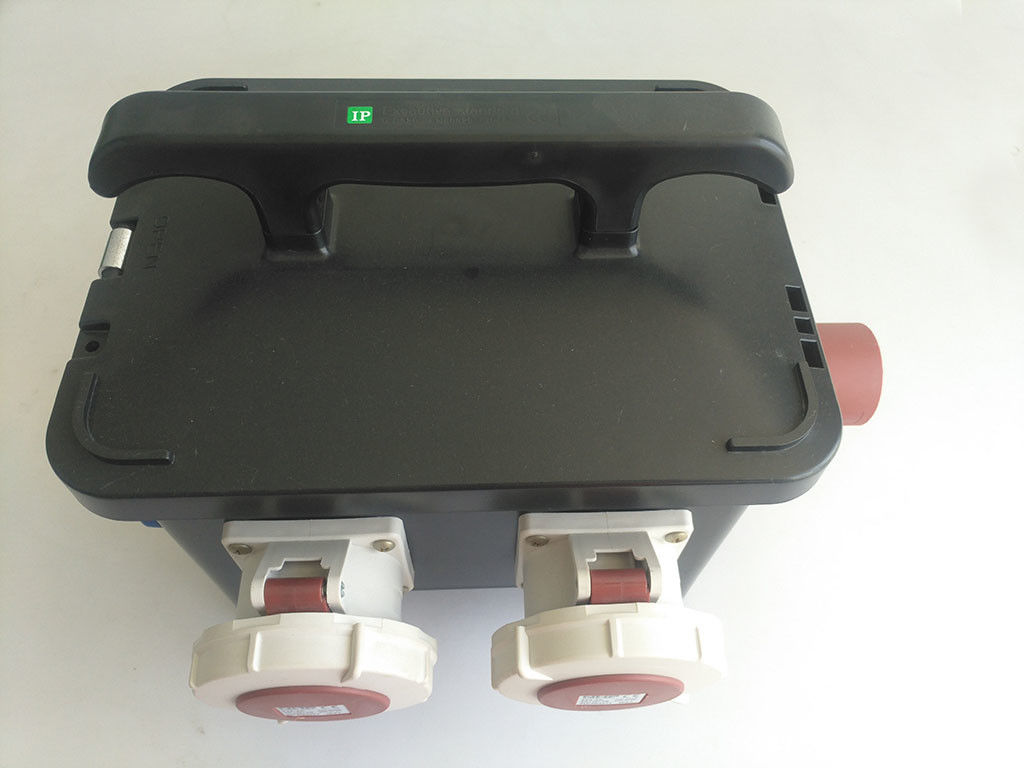

12 Pole Heavy Duty Electrical Spider Box 300 X 287 X 230mm Dimension 0

12 Pole Heavy Duty Electrical Spider Box 300 X 287 X 230mm Dimension 1
