Customized Portable Power Distribution Board 37 * 34 * 33cm Dimension

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene PE Poles: 24 Ways
Dimension: 37*34*33cm Net Weight: 13.5kgs
IP Grade: IP66 Waterproofing Color: Yellow
High Light:

generator power distribution

,

portable distribution board


Product Description

24-poles IP67 Weather-resistant Customized Lightweight Portable Power Distribution Box with Overcurrent Protection



Application



These compact boxes feature a strong carrying handle and a built in stackable mounting base for ground clearance and stability. They are available in sizes ranging from 50 Amp to 400 Amp.



Features & Benefits



  • Meets the requirements for construction site use
  • Meets the standards for open-neutral socket protection for enhanced safety
  • Distribution boxes for flexible current supply, portable and handy,
  • High resistance to weathering and chemicals;



Markets Served



  • airport
  • mining
  • marine terminals
  • logistics and civil environment like scientific offices and service industry.



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
 7.5 meters 5*10mm2 cable  1 * 32A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 32A MCB
   1 * 16A / 415V 5 pins IP67  CEE panel mounted socket  1 * 1P 32A MCB
   4 * 16A / 415V 3 pins IP67  CEE panel mounted socket  4 * 3P 16A MCB
     2 * 1P 16A MCB

Product Pictures

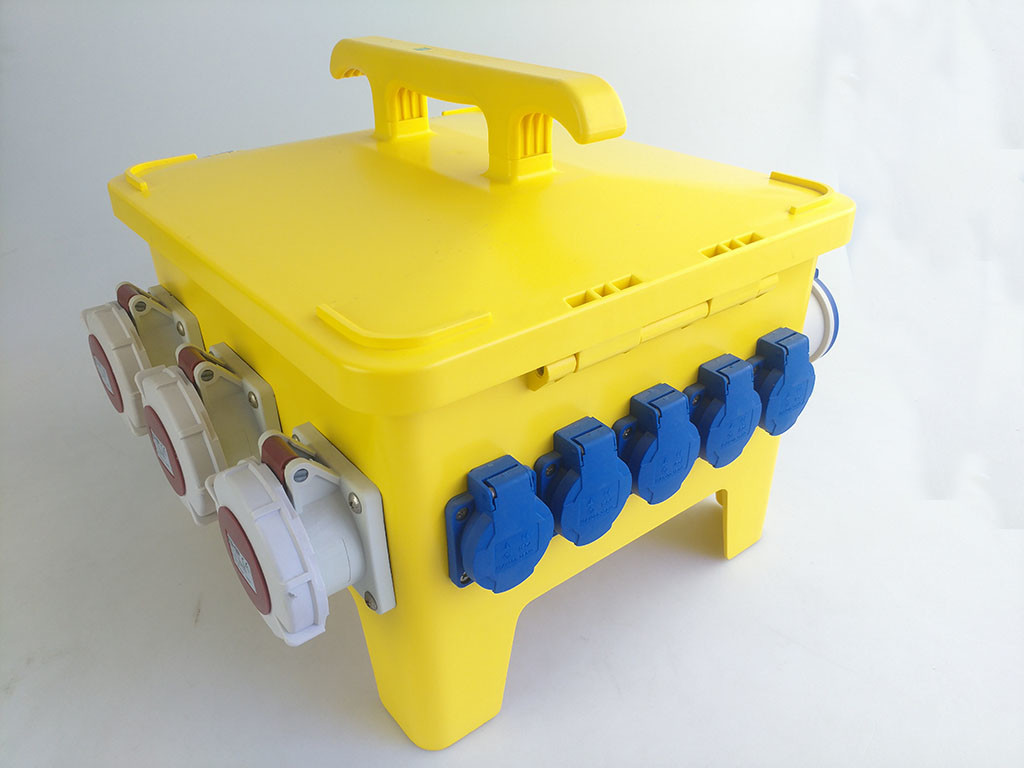

Customized Portable Power Distribution Board 37 * 34 * 33cm Dimension 0

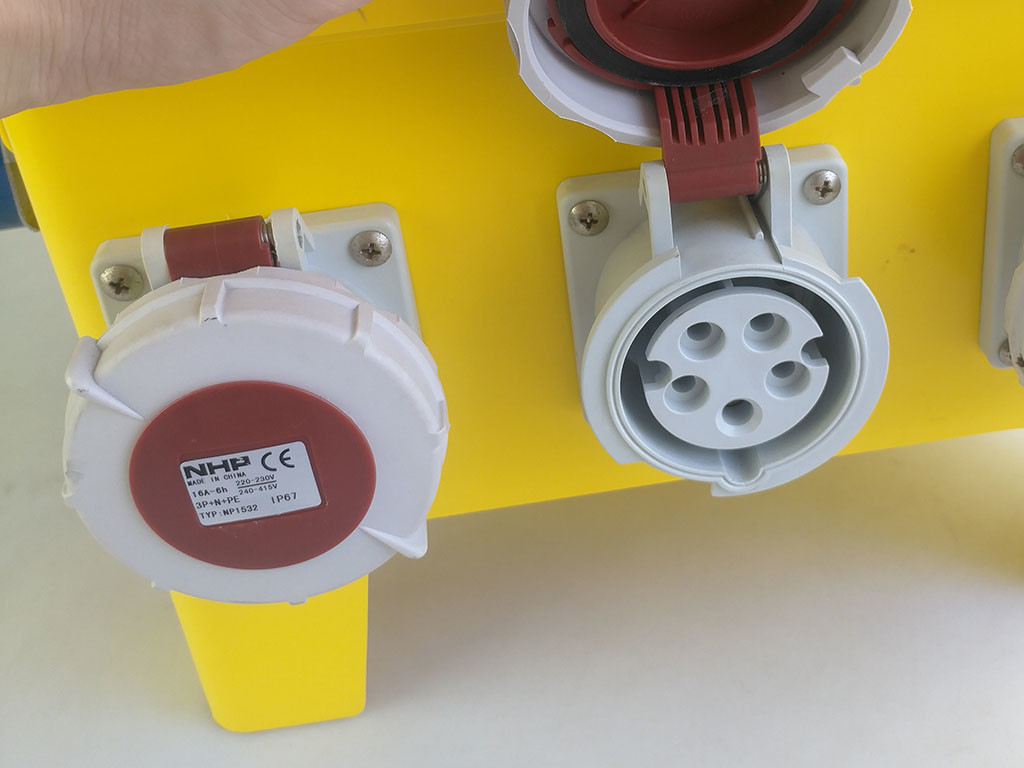

Customized Portable Power Distribution Board 37 * 34 * 33cm Dimension 1
