IP66 Waterproof Electrical Spider Box High Durability Polyethylene PE Shell

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene PE Poles: 24 Ways
Dimension: 37*34*33cm Net Weight: 13.5kgs
IP Grade: IP66 Waterproofing Color: Yellow
Highlight:

spider power box

,

temp power spider box


Product Description

24 Ways IP66 Waterproof Durable Rubber Power Distribution Equipment Yellow Terrapin Station with Plugs and Sockets



Application



The "Spider Box" Temporary Power Distribution Unit is designed to safely distribute temporary power on jobsites. It is appropriate for outdoor use and designed to stand up to the toughest workplace conditions. The 120V/20A receptacles are protected by individual GFCIs with power on indicators. The outlets also provide open neutral and reverse phasing protection.



Features & Benefits



  • Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
  • Locking receptacles provide secure connections that prevent accidental separation
  • Heavy-duty PE legs position the box at the NEC regulatory while allowing for storage and transport stacking
  • Molded handle enhances portability while improving stackability of multiple units





Markets Served



  • Maintenance
  • Shipbuilding
  • Generator Rental and Entertainment
  • oil



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted Receptacle  1 * 4P 63A 30mA RCD
 3.5 meters 5*10mm2 cable  1 * 32A / 415V 5 pins IP67  CEE panel mounted Receptacle  1 * 3P 32A MCB
   2 * 16A / 415V 5 pins IP67  CEE panel mounted Receptacle  2 * 1P 32A MCB
   3 * 16A / 415V 3 pins IP67  CEE panel mounted Receptacle  3 * 3P 16A MCB
     2 * 1P 16A MCB



Product Pictures

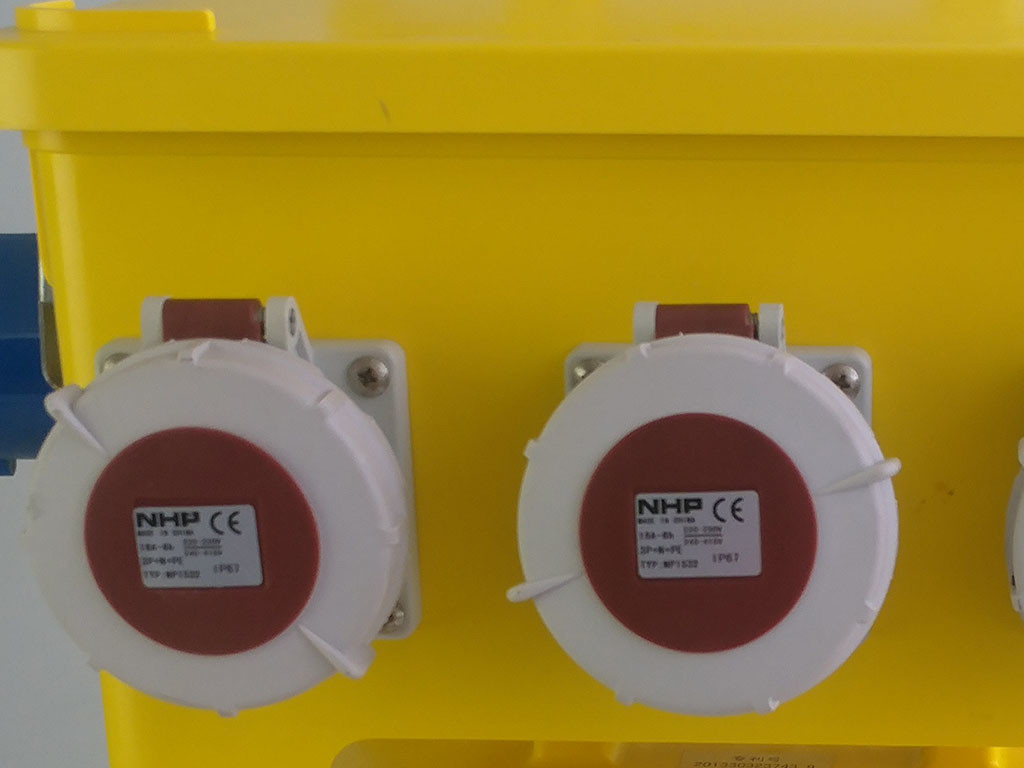

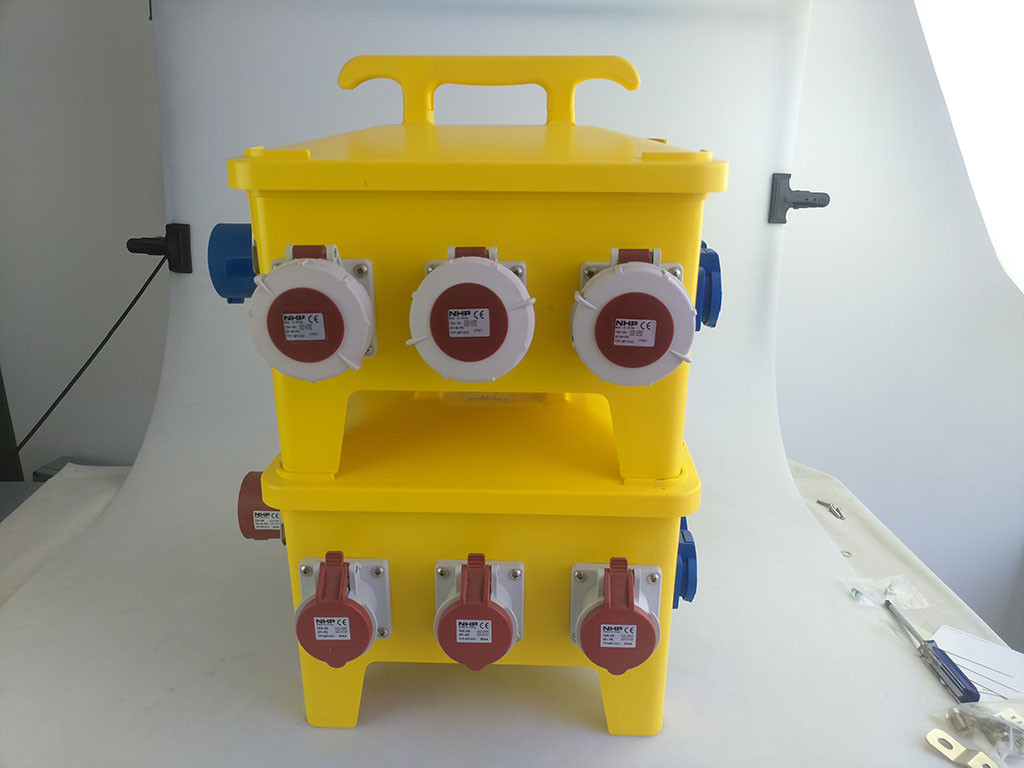

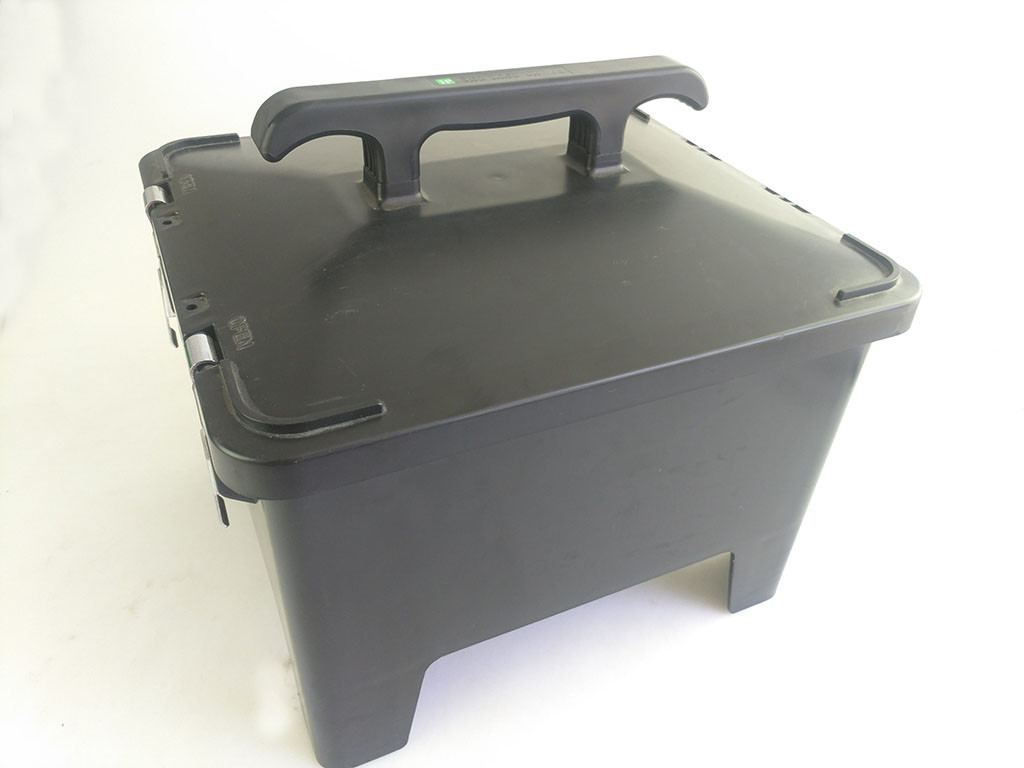

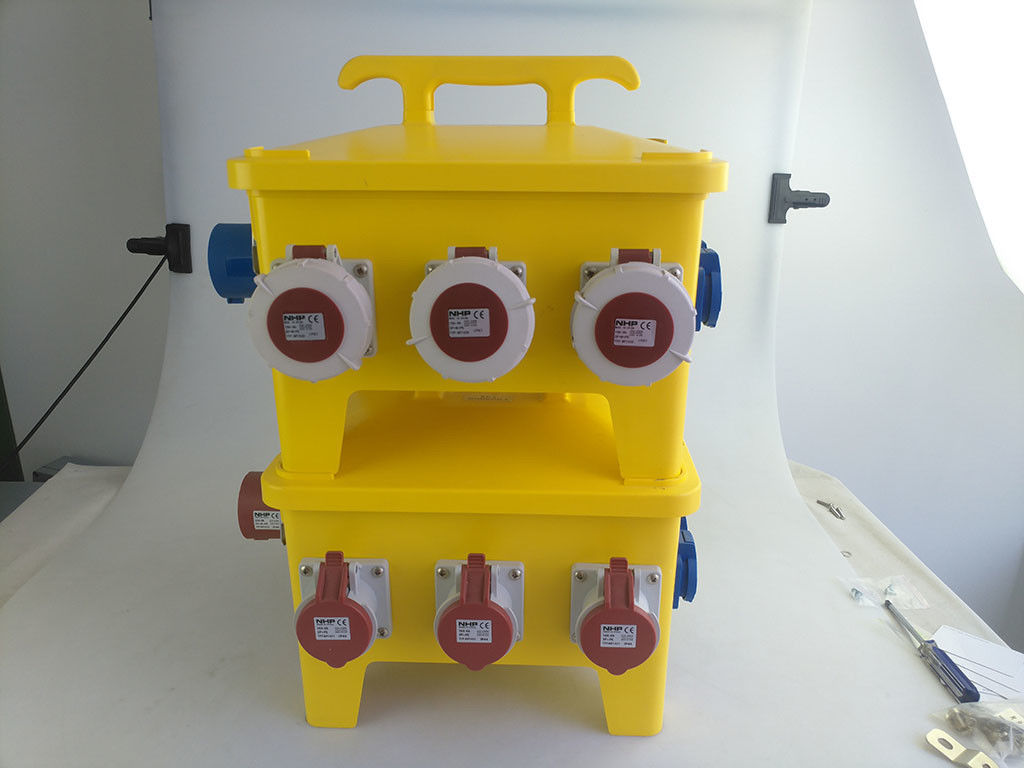

IP66 Waterproof Electrical Spider Box High Durability Polyethylene PE Shell 0

IP66 Waterproof Electrical Spider Box High Durability Polyethylene PE Shell 1
