| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP24 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Polyethylene PE | Poles: | 24 Ways |
|---|---|---|---|
| Dimension: | 37*34*33cm | Net Weight: | 13.5kgs |
| IP Grade: | IP66 Waterproofing | Color: | Yellow |
| Highlight: | generator power distribution,portable distribution board |
||
24-pole IP66 Weather Resistance Customized Lightweight Portable Power Enclosure with Overcurrent Protection
The Rubber power distribution boxes are constructed using a high impact resistant injection molded weatherproof rubber enclosure.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply plug | 1 * 63A / 415V 5 pins IP67 CEE panel mounted Receptacles | 1 * 4P 63A 30mA RCD |
| 7 meters 5*10mm2 cable | 3 * 32A / 415V 5 pins IP67 CEE panel mounted Receptacles | 3 * 3P 32A MCB |
| 4 * 16A / 415V 5 pins IP67 CEE panel mounted Receptacles | 4 * 1P 32A MCB | |
| 3 * 16A / 415V 3 pins IP67 CEE panel mounted Receptacles | 3 * 3P 16A MCB | |
| 2 * 1P 16A MCB |

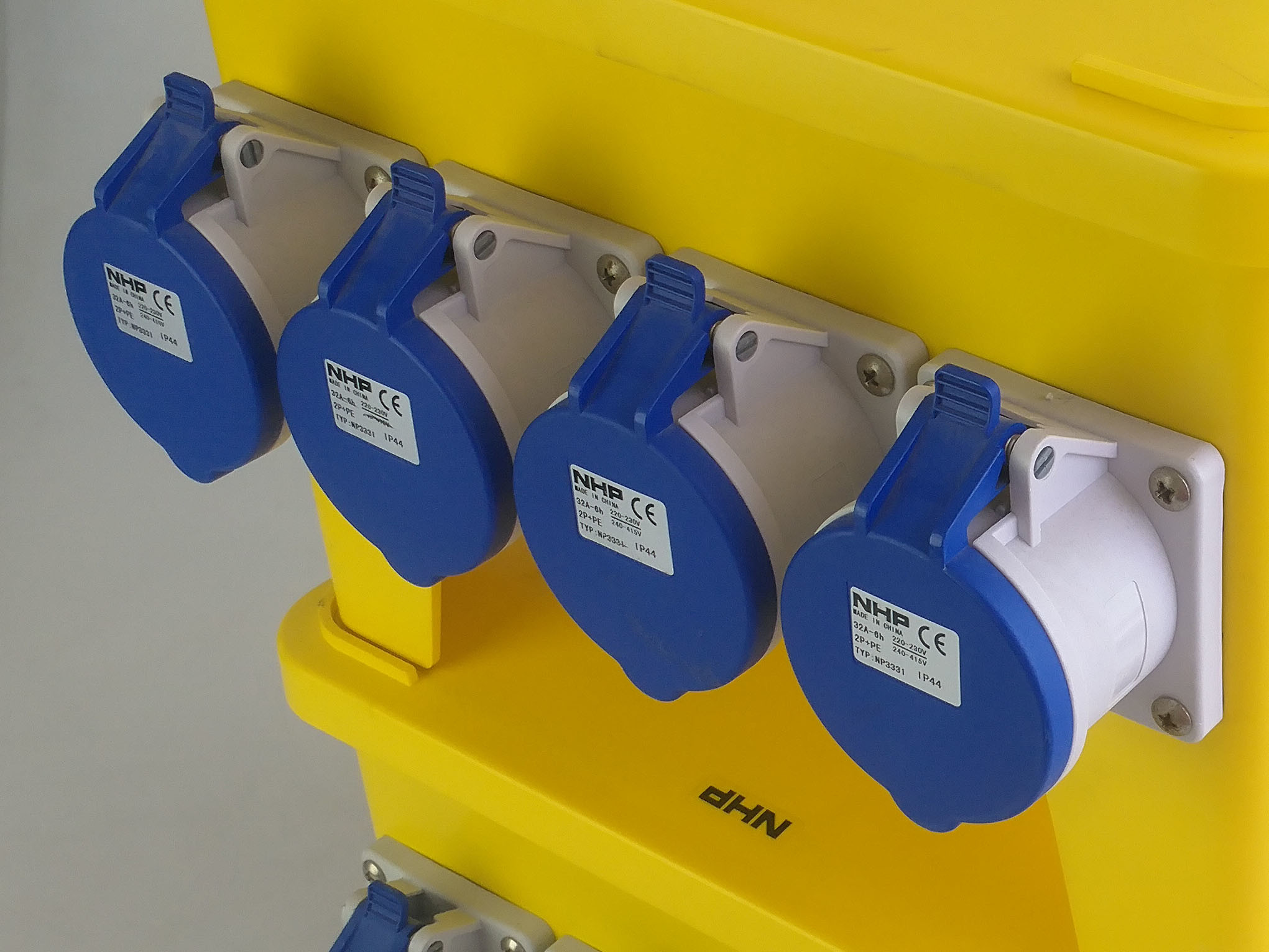

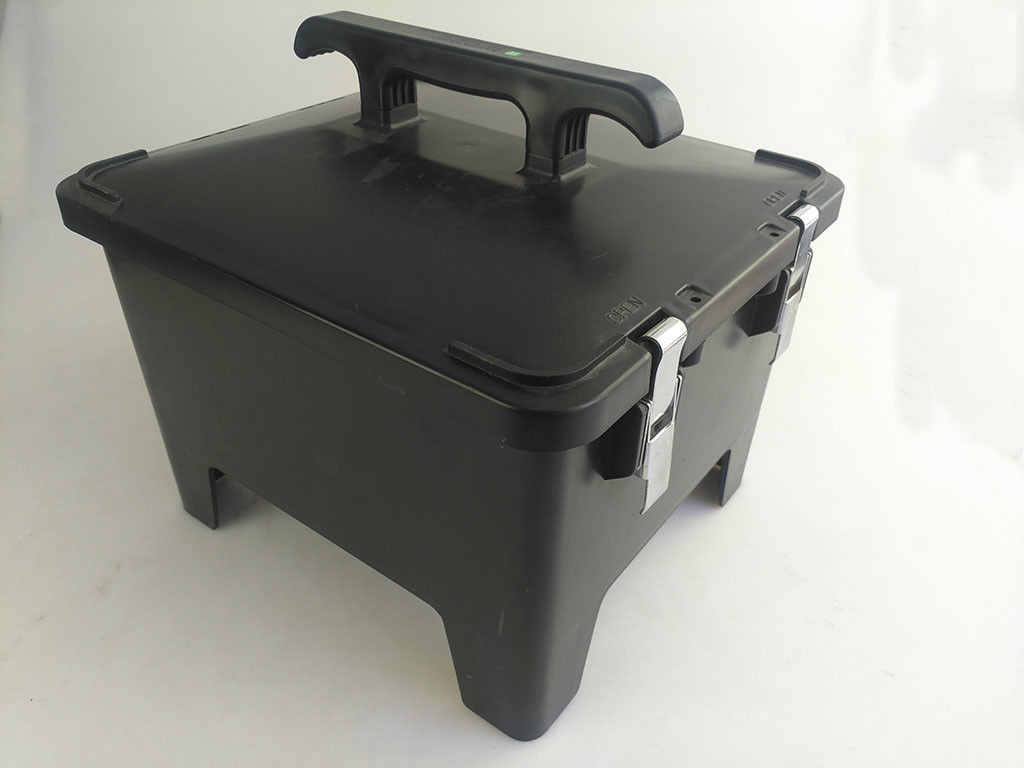

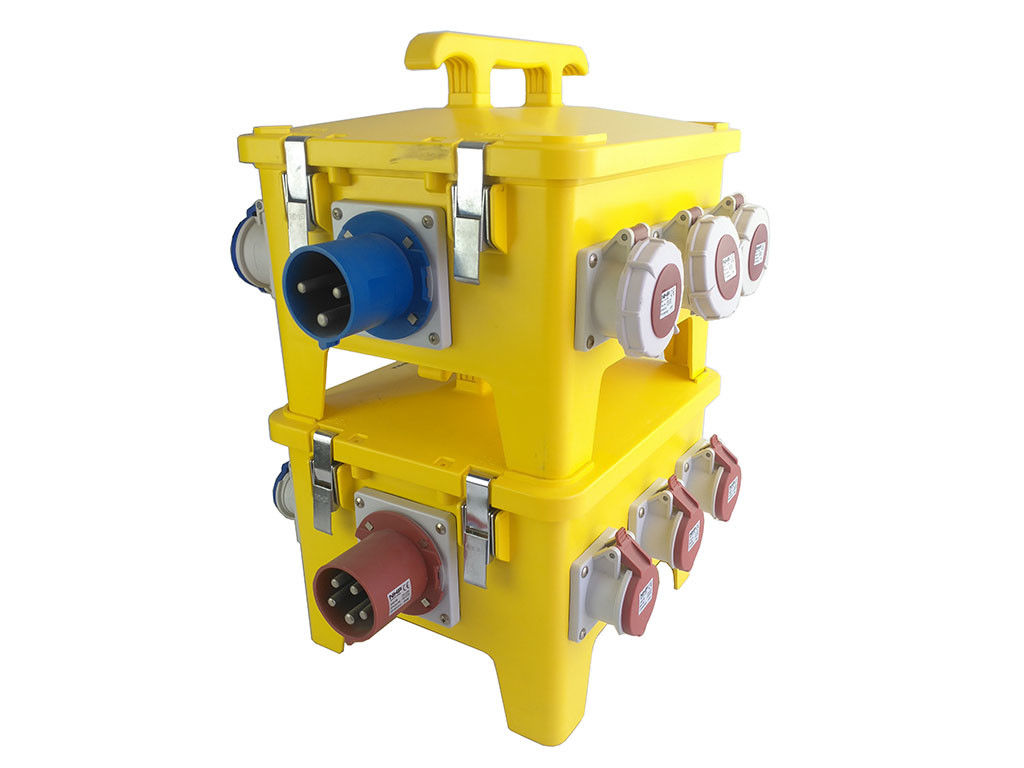

Product Pictures
