24 Poles Generator Power Distribution , Movable Portable Distribution Board

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene PE Poles: 24 Ways
Dimension: 37*34*33cm Net Weight: 13.5kgs
IP Grade: IP66 Waterproofing Color: Yellow
High Light:

temporary distribution board

,

portable distribution board


Product Description

24 ways IP56 Weather Resistant Customized Lightweight Movable Power Distribution Box with Overcurrent Protection



Application



All temporary power distribution boxes are manufactured Zhejiang Hanben Electrical and tested to IEC (12 Months Certification) and the products used within our distribution systems conform to EN 60309, EN 60529, EN 60947 and have a 12 month warranty.





Features & Benefits



  • IK8 mechanical protection degree;
  • High quality thermoplastic material;
  • Available component preset as requested;





Markets Served



  • maintenance in the tunnel range of rail transit
  • Exhibition center
  • Factories
  • manufacturing industry



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
 5 meters 5*10mm2 cable  3 * 32A / 415V 5 pins IP67  CEE panel mounted socket  3 * 3P 32A MCB
   3 * 16A / 415V 5 pins IP67  CEE panel mounted socket  3 * 1P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE panel mounted socket  2 * 3P 16A MCB
     2 * 1P 16A MCB



Product Pictures



24 Poles Generator Power Distribution , Movable Portable Distribution Board 0

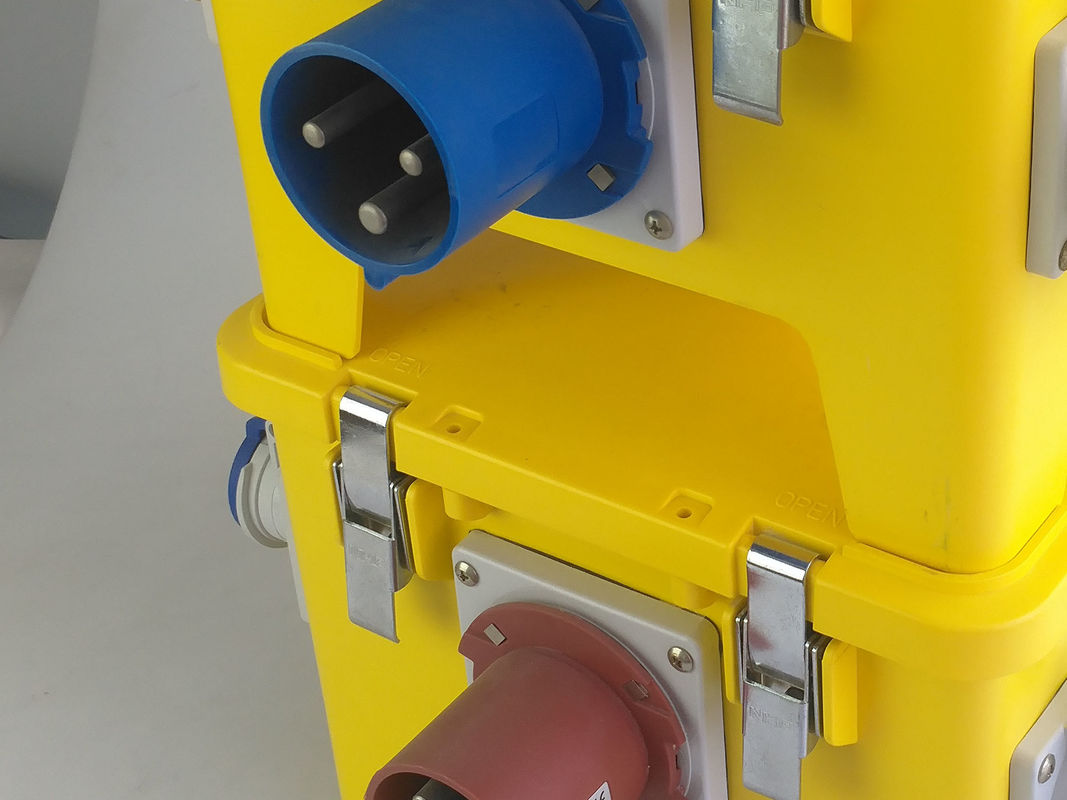

24 Poles Generator Power Distribution , Movable Portable Distribution Board 1
