| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP36 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | PE | Rated Voltage: | 220-230V / 240-415V |
|---|---|---|---|
| Rated Current: | 125 Amps | Protection Type: | IP66 Waterproof |
| Poles: | 36 Ways | Color: | Yellow |
| Highlight: | power distribution box,temporary power boxes spider |
||
36 Ways IP 66 Watertight Shock Resistant Mobile Distribution Box Yellow Distribution Unit with Industrial Plugs
Temporary power distribution substations and portable power distribution panels are used to convert one type of voltage to another type of voltage, while enabling operators to power a variety of devices from multiple receptacles.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply surface mounted plug | 1 * 63A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 4P 63A 30mA RCD |
| 3 meters 5*10mm2 cable | 1 * 32A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 63A MCB |
| 2 * 16A / 415V 5 pins IP67 CEE flush mouted socket | 2 * 3P 32A MCB | |
| 1 * 16A / 415V 3 pins IP67 CEE flush mouted socket | 2 * 3P 16A MCB | |
| 4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |

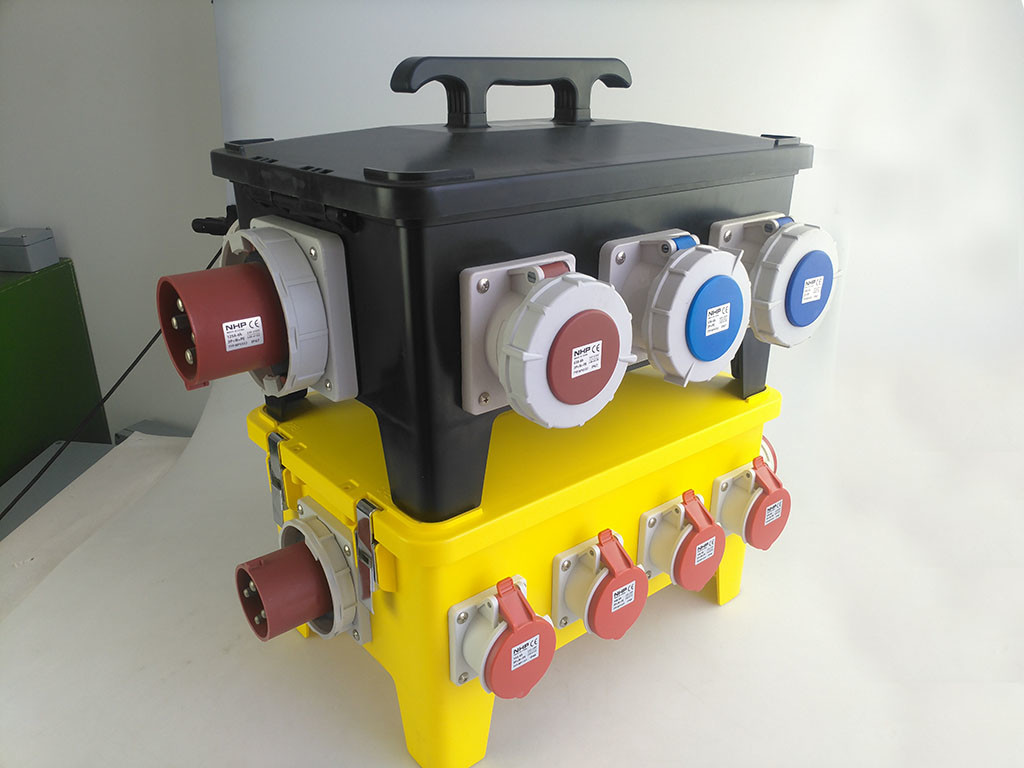

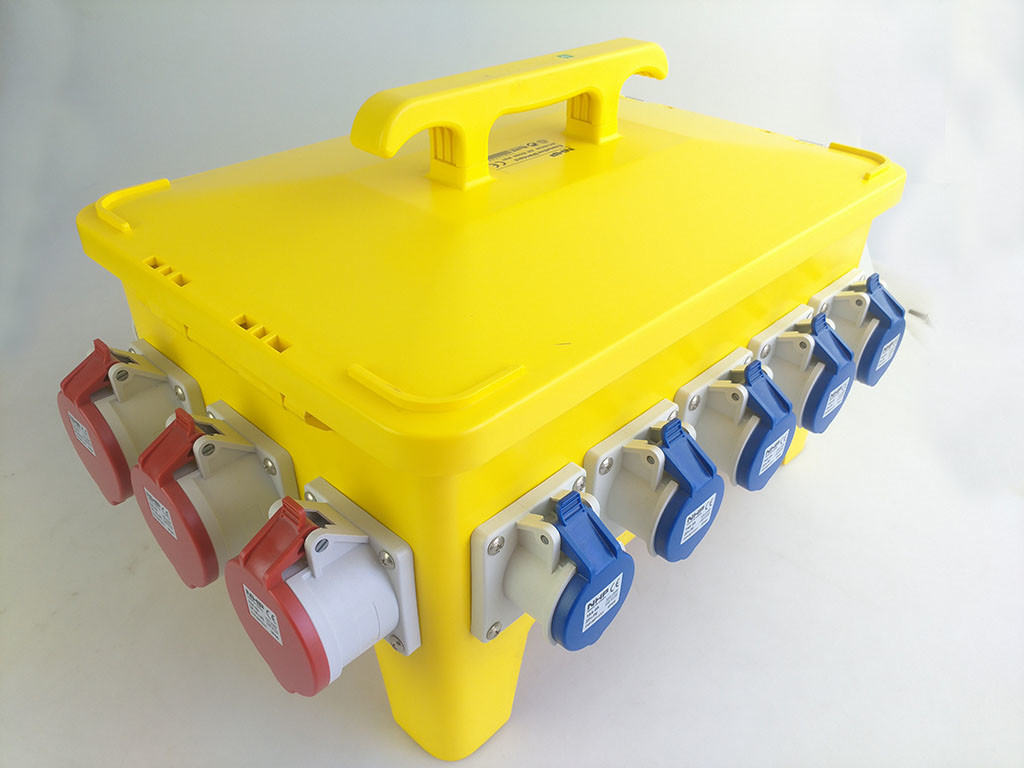

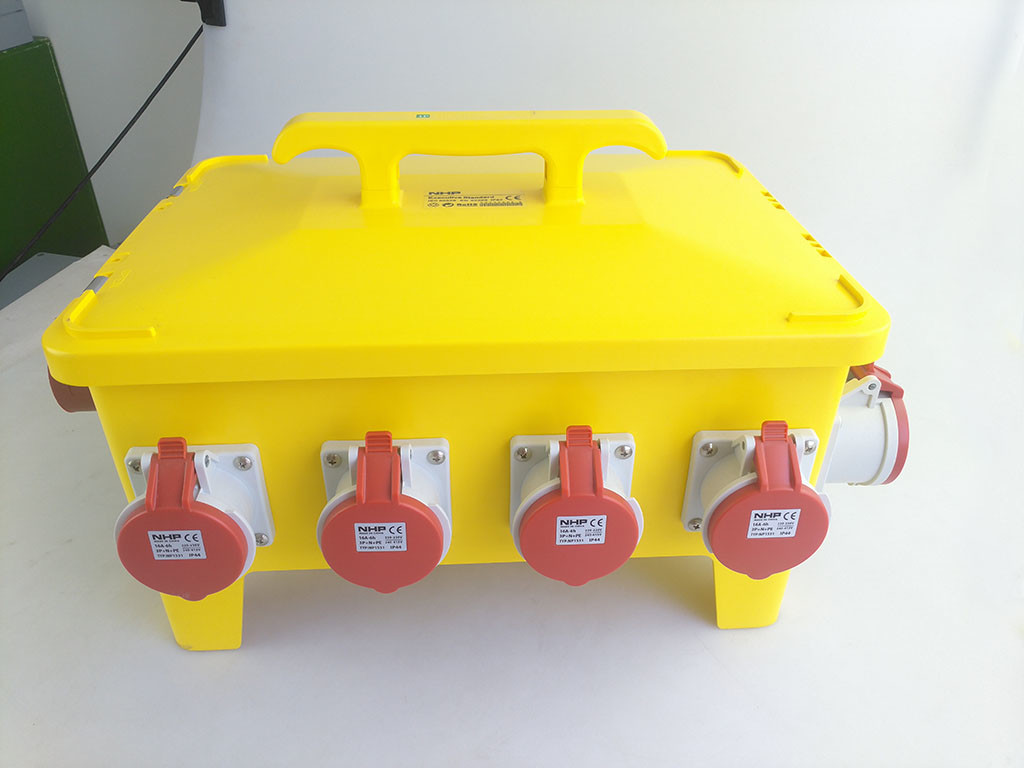

Product Pictures
