IP66 36 Ways Portable Distribution Box Yellow Load Master Overcurrent Protection

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Linear Low Density Polyethylene Frequency: 50/60Hz
Rated Voltage: 220-230V Rated Current: 125A
Protection Degree: IP66 Waterproof Dimension: 370*340*330CM
High Light:

power distribution box

,

temporary power boxes spider


Product Description

36 Ways IP66 Weather-resistant PE Portable Electrical Distribution Box Yellow Load Master with Overcurrent Protection



Application



HYPER is your one stop source for all your Power Distribution needs. Equipment is IEC listed. Enclosures are designed for harsh environment and outdoor applications, available in a NEMA 1 rating for indoor and NEMA 3R.



Features & Benefits



  • Revolutionary Form-Factor
  • IP44/IP65/IP66/IP67 protection degree against dust and liquid bodies
  • Feed thru feature allows multiple boxes to be placed along one feed
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion



Markets Served



  • Theatrical
  • Live Events
  • Convention Centers
  • Motion Picture and Television Production



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5P IP67  CEE Receptacles  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 63A MCB
   2 * 16A / 415V 5P IP67  CEE Receptacles  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE Receptacles  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

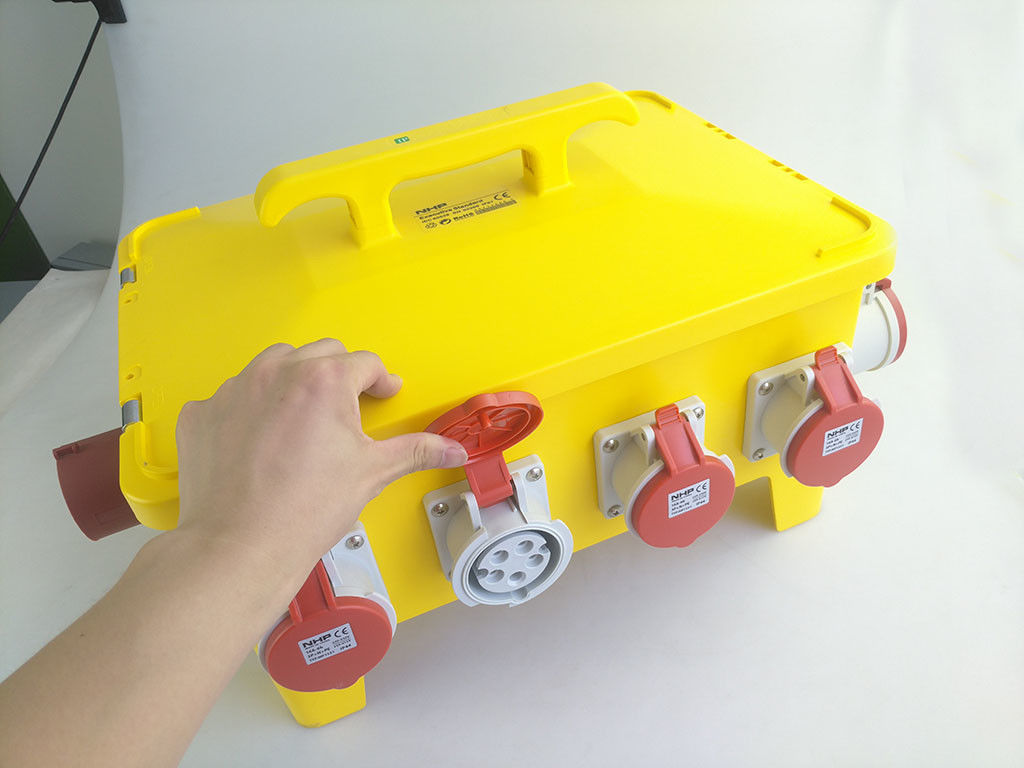

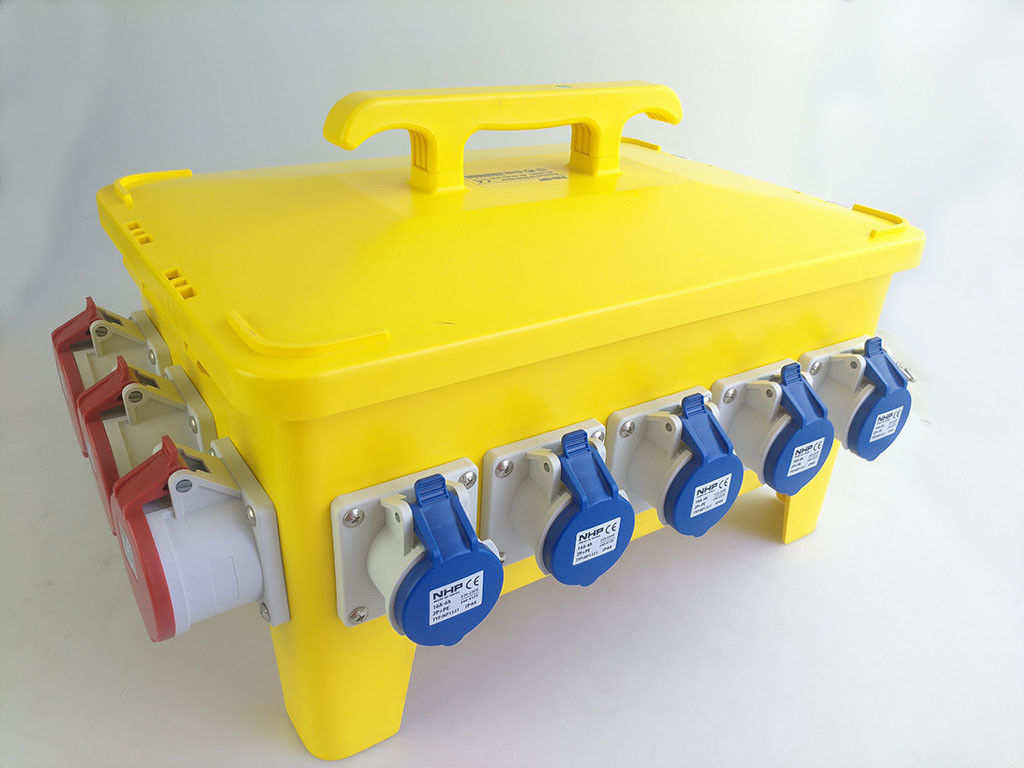

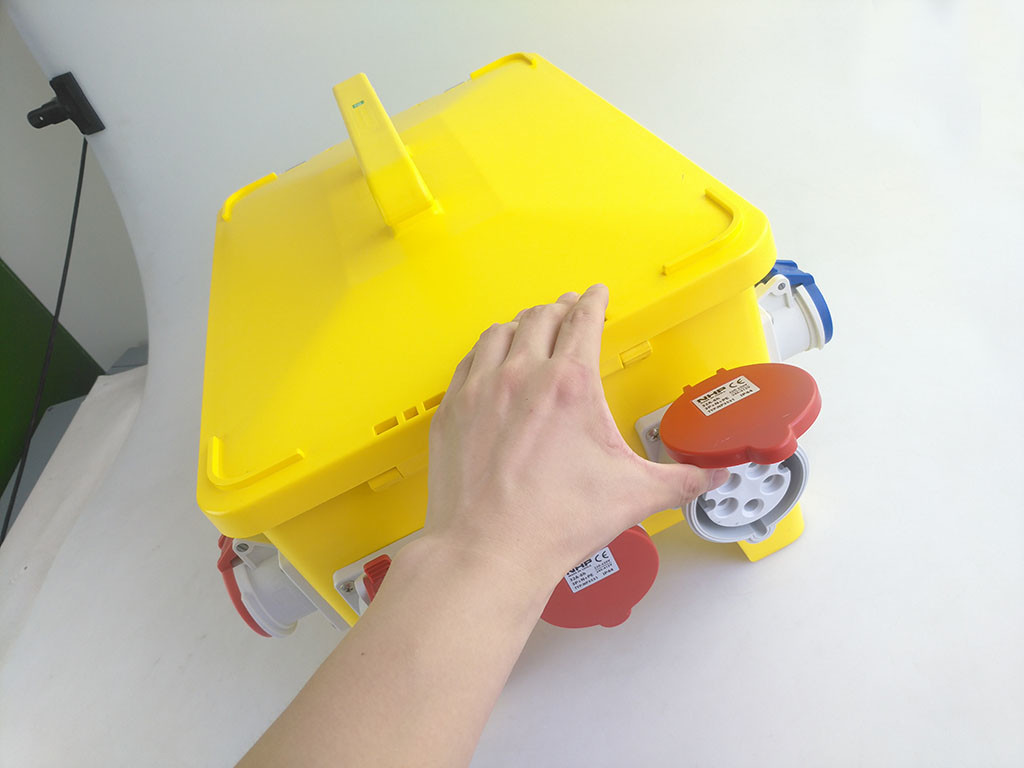

IP66 36 Ways Portable Distribution Box Yellow Load Master Overcurrent Protection 0

IP66 36 Ways Portable Distribution Box Yellow Load Master Overcurrent Protection 1
