| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP36 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Rubber | Color: | Black |
|---|---|---|---|
| Rated Voltage: | 220 V | Rated Current: | 160 A |
| Protection Degree: | IP 66 | Dimension: | 370*340*330mm |
| Highlight: | power distribution box,temporary power boxes spider |
||
36poles IP66 Weatherproof Safety Moveable Enclosure Temporary Power Distribution Box Black Terrapin Station
Flexible configuration alternatives provide the ability to meet unique application requirements without compromise, based on a field proven platform that is designed to survive even the harshest jobsite environments.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply surface mounted plug | 1 * 63A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 4P 63A 30mA RCD |
| 5 meters 5*10mm2 cable | 1 * 32A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 63A MCB |
| 2 * 16A / 415V 5 pins IP67 CEE flush mouted socket | 1 * 3P 32A MCB | |
| 2 * 16A / 415V 3 pins IP67 CEE flush mouted socket | 2 * 3P 16A MCB | |
| 4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |

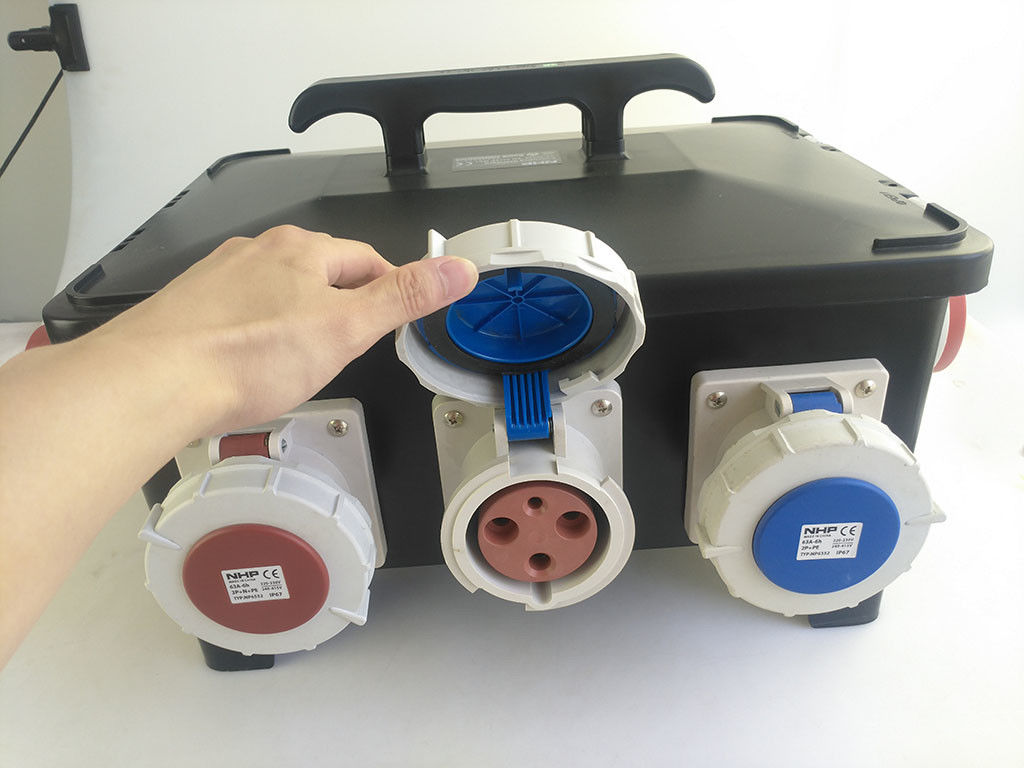

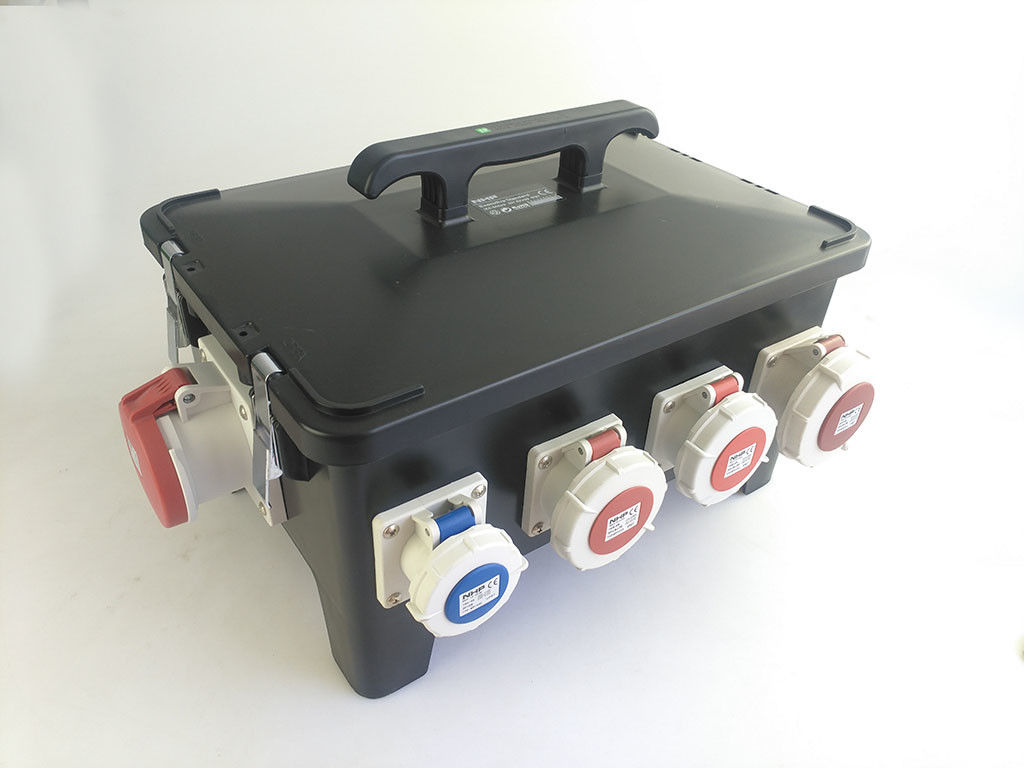

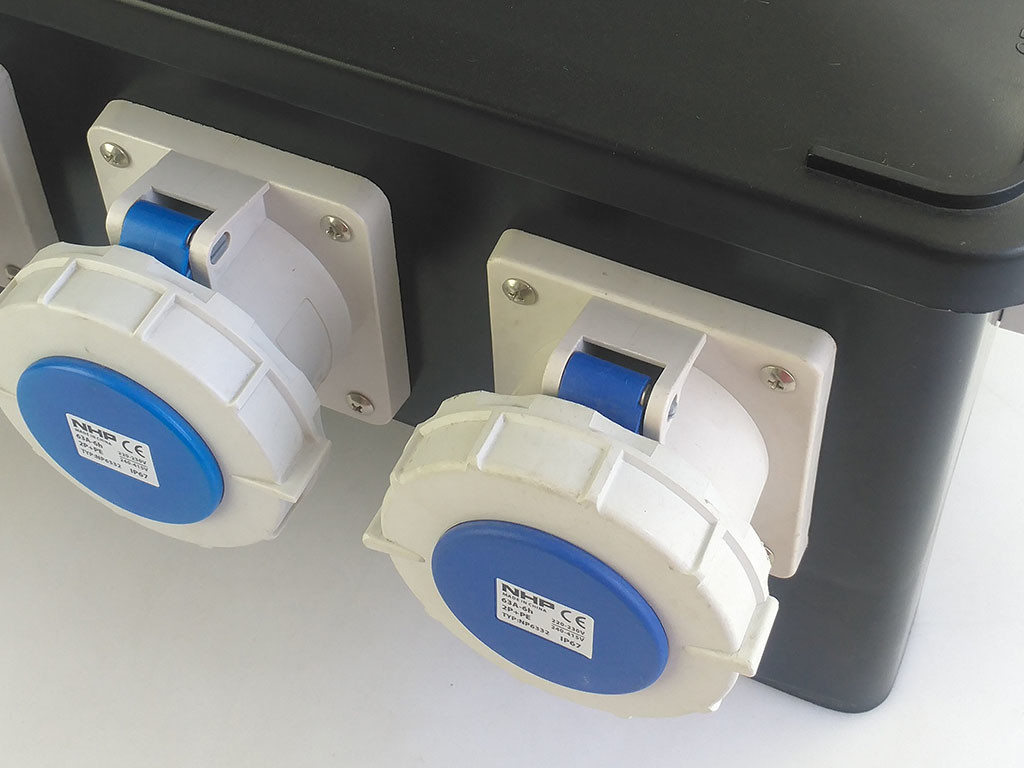

Product Pictures
