Wall Mounted High Current Plugs And Sockets With Metal Box IP67 Seawater Resistant

Basic Information

Place of Origin:	China
Brand Name:	HYPER
Certification:	DIN VDE 0623 EN/IEC 60309-2
Model Number:	75126

Minimum Order Quantity:	500pcs
Packaging Details:	packed by standard paper carton
Delivery Time:	15 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100,000pcs / month

Get Best Price Contact Now

Detail Information

Ampere:	400 Amps	Poles:	5 Poles
Voltage:	400 Volts	Frequency:	50-60 Hz
Protection Type:	IP67 Waterproof	Type:	Receptacle With Switched Metal Box
Highlight:	industrial electrical sockets and plugs , heavy duty plug sockets

Product Description

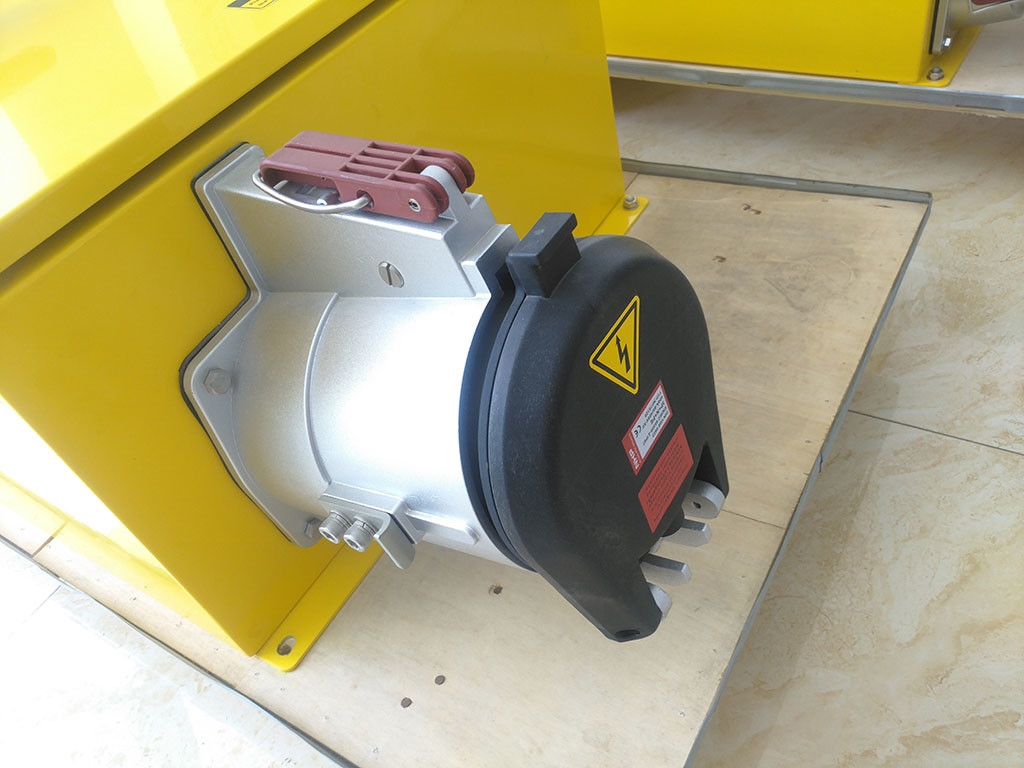

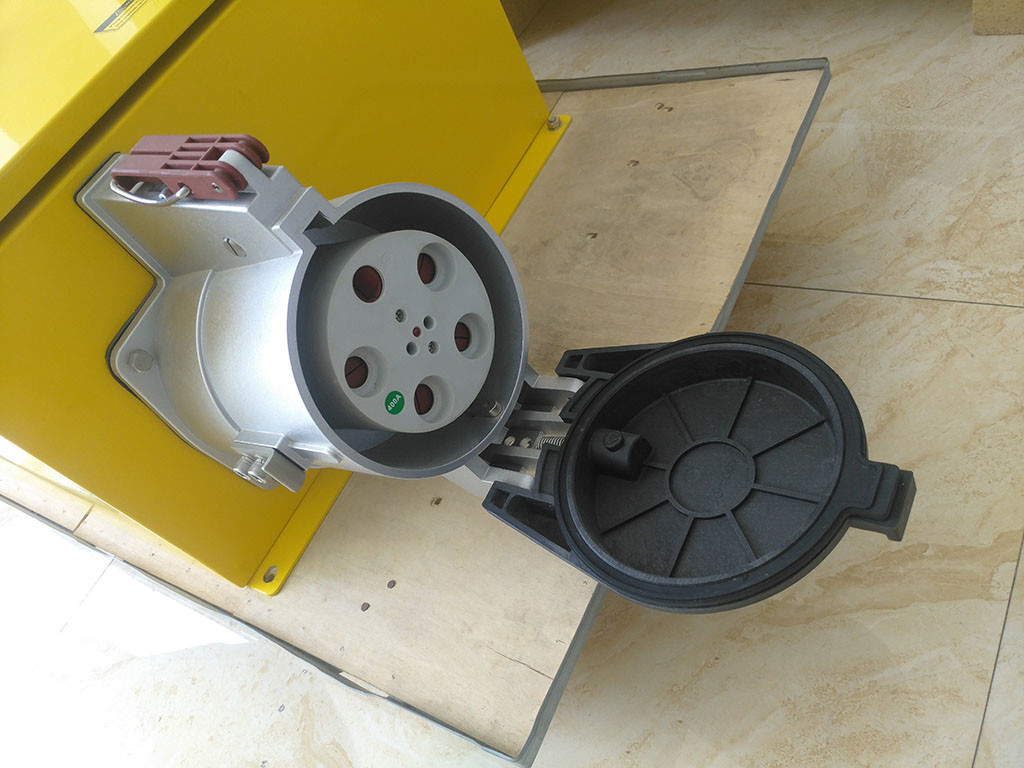

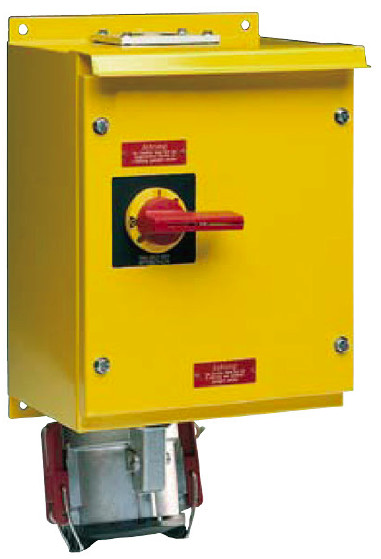

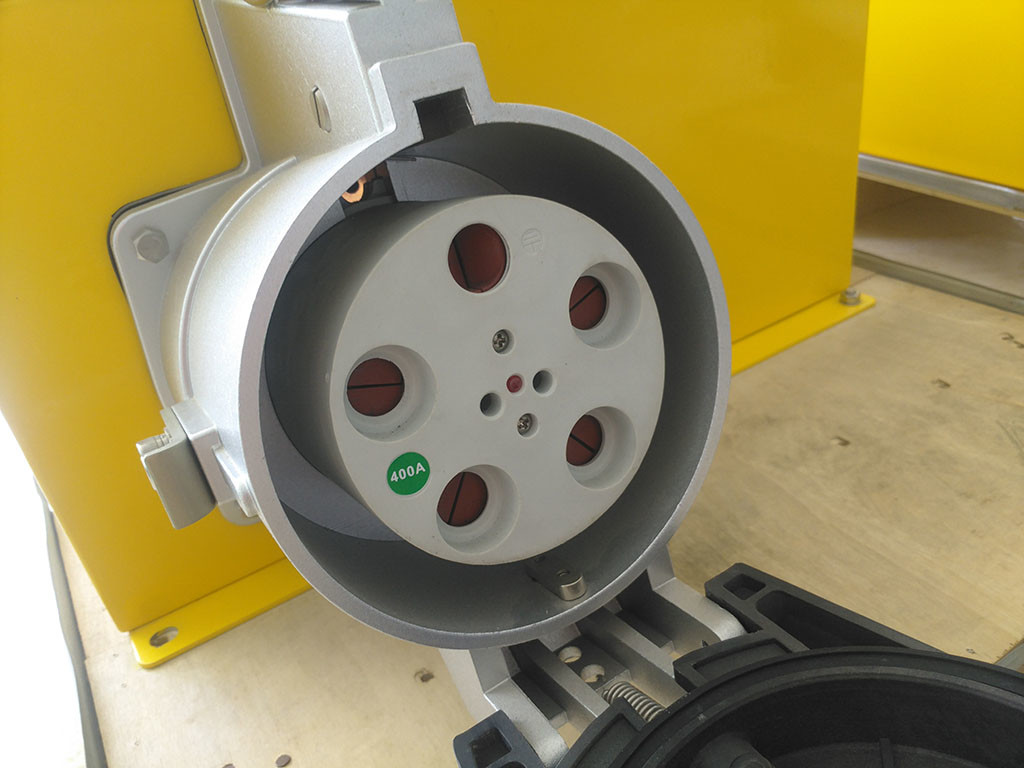

5P 400A IP67 Seawater Resistant High Current Inclination Wall Mounted Receptacle with Switched Metal Box part no. 75126

Description:

Connector units 200 A ... 400 A
To ensure maximum safety for users, we can offer special connector units:
CUMI (connector unit with mechanical interlock)
CUBC (connector unit with block contactor)
CUCB (connector unit with circuit breaker)

Part no. 75126

For this model, 250A is also available.

Technique Parameter:

Technical information
Ampere	400 A
Poles	5 p
Voltage	400 V
Earth position	6 h
Hertz	50-60 Hz
Connection technology	Screw terminals
Contact	standard
Protection type	IP 55

Product Dimension:

Wall Mounted High Current Plugs And Sockets With Metal Box IP67 Seawater Resistant 0

Picture:
