| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 4051 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | High Ampere Industrial Plug | Poles: | 4 P |
|---|---|---|---|
| Current: | 420 A | Voltage & Frequency: | 400V 50-60Hz |
| Earth Position: | 6h | Protection Grade: | IP67 Watertight |
| Highlight: | industrial electrical sockets and plugs,heavy duty plug sockets |
||

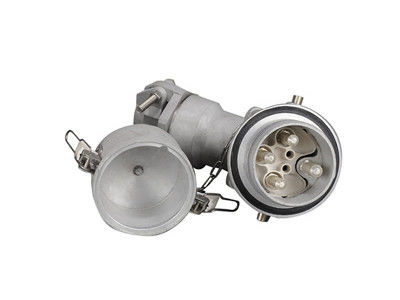

4P 420A IP67 Watertight High Ampere Industrial Plug High Current Plugs And Sockets with Cover part no. 4051
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 420A | 4 | 4051 | 1 | 6190 | |||||
| 5 | 4061 | 1 | 6375 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 420A | 4 | 384 | 185 | 160 | 222 | 120 | 331 | 331 | ||
| 5 | 384 | 185 | 160 | 222 | 120 | 331 | 331 | |||
| Conductor cross-sectional area (mm2)Min To Max 120-150 | ||||||||||
Product Dimension:
