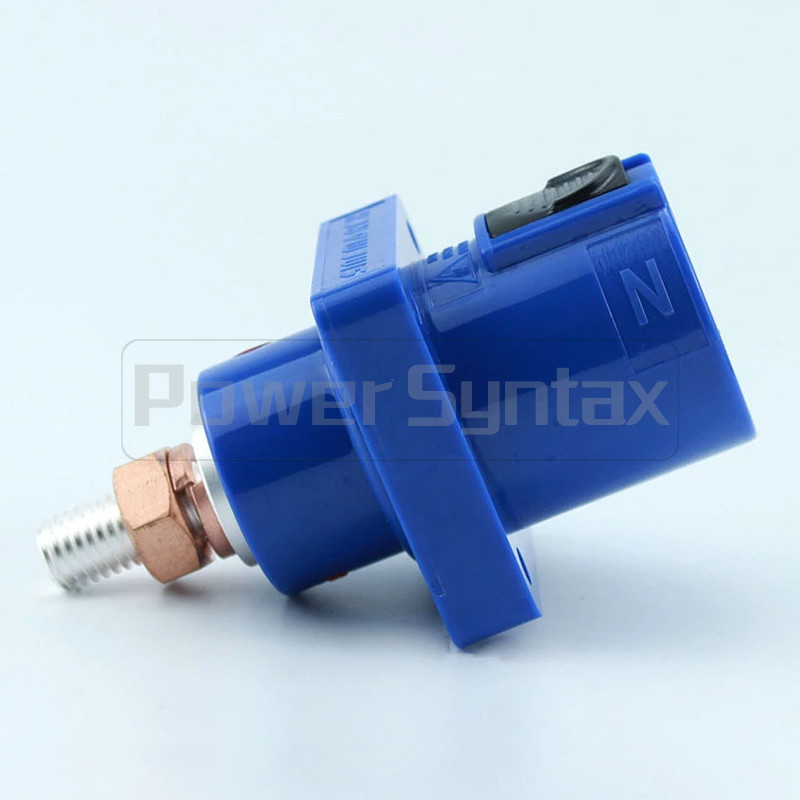

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set



Technical Parameters:

Basic Information
Brand / Manufacturer PowerSyntax
Manufacturer Part Number PSM1, PSM2, PSM3, PSM4, PSM5
Plug / Socket Male Socket
Mounting Type Panel Mount
Electrical
Number of Contacts Single Pole
Current Rating (Ampere) 400 amp continuous
Operating Voltage 1000VAC / 1000VDC acc. to DIN EN 61984
Test Voltage 4500V AC
Short Circuit Rating 16kA for 1s, 34kA peak
Insulation Resistance >5000 Mohm
Electrical Protection IP2X Finger touch protected
Contact Resistance < 0.1 mOhm
Mechanical
Contact Material Brass (up to 400 amp), Silver Plated
Housing Material PBT High Temperature Thermoplastic
Locking Bayonet with secondary locking pin
Mating Cycles 500
Contact Type Set Screw (up to 400 amp) and Threaded post/hole
Contact to Housing Retention Nylon Cotter Pin
Cable Retention Cable gland nut
Vibration 10-2000Hz/15g
Cable CSA (Cross-sectional Area) Up to 120mm2
Environmental
Operating Temperature -30°C to +125°C (-22°F to +257°F)
Ingress Protection IP67 when mated
Flammability UL94-V0
RoHS Compliant



Dimension Drawing:

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 0

Identification of Color Codes / Model Numbers:

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 1



Features and Benefits:

• PowerSyntax Line Source / Line Drain / Panel Source / Panel Drain are Full Set of 5 x L1/L2/L3/Neutral/Earth.

• 1000VAC / 1000VDC acc. to DIN EN 61984 voltage rating

• Intermateable (Compatible) with other versions.

• CE compliant.

• Contact retained within the thermoplastic housing with a flame-retardant UL94-VO plastic pin. This method ensures quick assembling and disassembling. No special extracting tools are needed.

• Heavy-duty ergonomic hand grip, with sides specially designed for easy pushing/pulling when mating/unmating.

• Metric thread M40 cable gland IP67 watertight compliant with EN/CE, adapters available for cables over 32 mm diameter

• Screw, Crimp and Lug terminals to facilitate cables from 25mm² to 300 mm²

• Mechanically keyed to prevent mating errors.

• Permanent marking to identify phase/line and safety information embossed on connector’s body.

• Multipoint contact area.

• Silver Plated Contacts.

• High Impact bodies.

• EN harmonized color coding (Europe). Also available in UK, Australia and USA color codes.

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 2

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 3



IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 4

IP67 High Current Power Connectors Male Sockets PSM 5 X 400A PowerSyntax Panel Source Set 5



Description:

The PowerSyntax 400A European Standard Single Pole Power Connector Series is designed for power distribution systems, offering the ultimate features in safety and reliability under the most severe operating conditions.



The PowerSyntax Powerlocks are available in Line Source, Line Drain, Panel Source & Panel Drain formats. It's the cable size, cross-sectional area (CSA termination), that determines which connectors are required. PowerSyntax power connectors are available with Set Screw termination for cables up to 120mm2.



Typical applications for PowerSyntax connectors include three/phase motors, generators, load banks and lighting distributions panels. PowerSyntax connectors are also suitable for utility companies and heavy industry environments. PowerSyntax connectors are designed and tested to comply with European and US electrical safety standards and specifications. Our PowerSyntax connectors are compatible with major brands of single-pole power connectors.



The PowerSyntax connector series has permanent integral keys which prevent the accidental connection of dissimilar types.



Each connector type has a unique keyed position. Visual identifications are easily made by means of the color insulator.



Order Reminds:

Whatever models do you choose to buy, you have to buy set of 5 powerlock connectors, for example, if you want to buy the Line Source connectors, you have to buy all the full set of L1, L2, L3, Neutral and Earthing connectors.



Applications:

• Electrical power systems

• Power distribution

• Outdoor concerts and sporting events

• Outdoor broadcasting

• Theaters

• Mobile generators

• Industrial vehicles

• Railway installations

• Military installations

• Load banks

• Backup power systems

• Electrical power supply companies

• Heavy industry



Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.



Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
