PC IP67 Waterproof Hinged Window Syntax AW18 18 Modules With Electric Cover 340*101*28mm

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN 60309, IEC 60529
Model Number: AW18
Minimum Order Quantity: 1PC
Packaging Details: Packed by strong paper cartons
Delivery Time: 2-3 weeks
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs/month
Detail Information
Poles: 18 Poles Dimension: 340mm*101mm*28mm
IP Grade: IP67 Waterproof Frame Color: Electric Grey
Material: PC (Polycarbonate Resin, A Kind Of Plastic)
High Light:

340*101*28 mm Waterproof Hinged Window

,

PC IP67 Waterproof Hinged Window

,

Waterproof Hinged Window with Electric Cover


Product Description

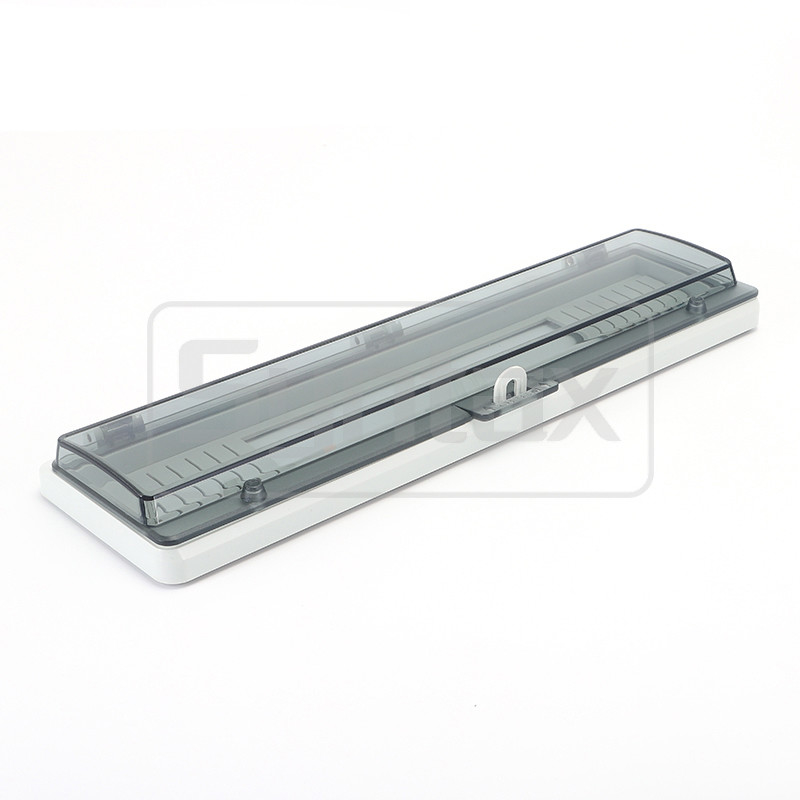

Syntax AW18 PC IP67 Waterproof Hinged Window 18 Modules with Lock Screws and Clear Electric Grey Cover 340*101*28mm



Features:

• Model No.: AW18.

• Poles: 18 Poles / Ways / Modules.

• Design based on EN 60309, IEC 60529.

• Water resistant design, IP rating up to IP67.

• Frame color: electric grey.

• Windows are spring-loaded and secured with thumb screws.

• With protective cover and knurled screws.

• Material: PC (Polycarbonate Resin, a kind of plastic).

• Temperature rating -25°C to +80°C.

• External Dimensions: 340*101*28mm.



Description:

The AW Series Polycarbonate IP67 Waterproof Hinged Window for enclosures from our trusted and reliable own brand Syntax. This range of hinged windows are an excellent addition of accessories for enclosures / distribution boxes / socket boxes, increasing visibility of internal electrical parts and components without coming into contact with them or opening the lid of the enclosure. This range of spring loaded inspection windows are ideal for troubleshooting on the go and can be secured via thumb screws for extra security. These inspection windows for enclosures are made using a durable polycarbonate and offer an IP rating of IP67, offering excellent protection from dust and liquids indoors and outdoors.



OEM and ODM services are available.



Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.



Applications:

• Electrical
• Button switching elements
• Telecommunication
• Network Junction boxes
• Mechanical and automation



Dimension Drawings for the whole series windows:



PC IP67 Waterproof Hinged Window Syntax AW18 18 Modules With Electric Cover 340*101*28mm 0PC IP67 Waterproof Hinged Window Syntax AW18 18 Modules With Electric Cover 340*101*28mm 1PC IP67 Waterproof Hinged Window Syntax AW18 18 Modules With Electric Cover 340*101*28mm 2



Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
