Syntax CT2 16A Power Splitter IP44 Weather Resistance Power Maintance Socket Box 430*120*70mm

Syntax CT2 16A Power Splitter IP44 Weather Resistance Power Maintance Socket Box 430*120*70mm

Technical Parameters:

Dimension Drawing of Empty Box:

Features and Benefits:

Design based on EN 60309, IEC 60529.

Waterproof and Shockproof design, IP rating up to IP67.

Color: Black, Yellow or Grey.

Material: PC (Polycarbonate Resin, the best material of plastic).

Operating Temperature:-20℃～+75℃.

Dimension: 430mm*120mm*70mm.

THE ADVANTAGES OF OUR DISTRIBUTION BOXES:

Quick assembly/dismantling

Safe connections

Re-usability of all components

Robust distributor

Easy handling of distribution boxes and of the entire system

Specification:

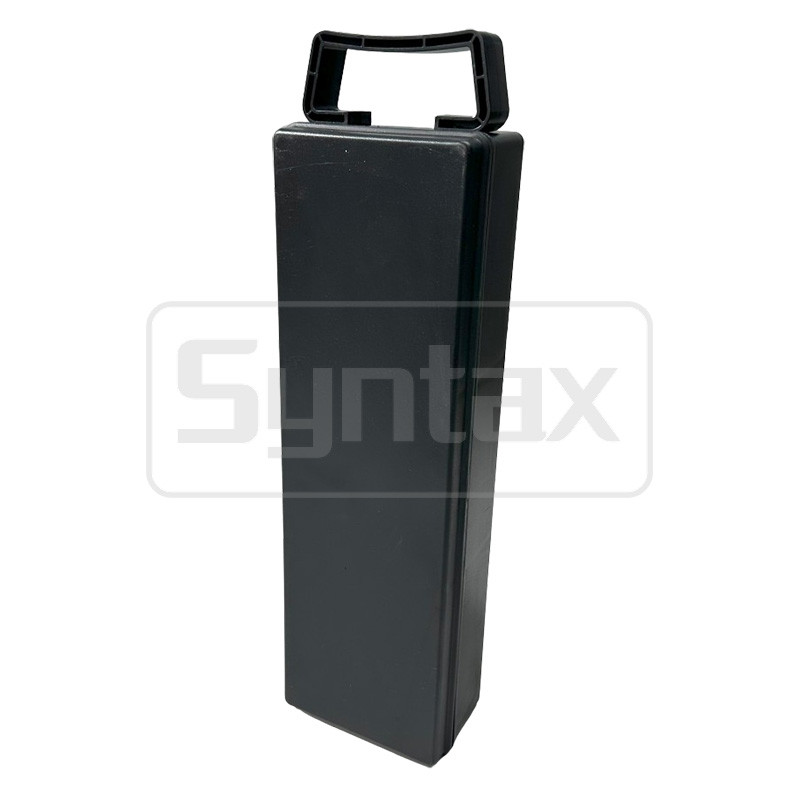

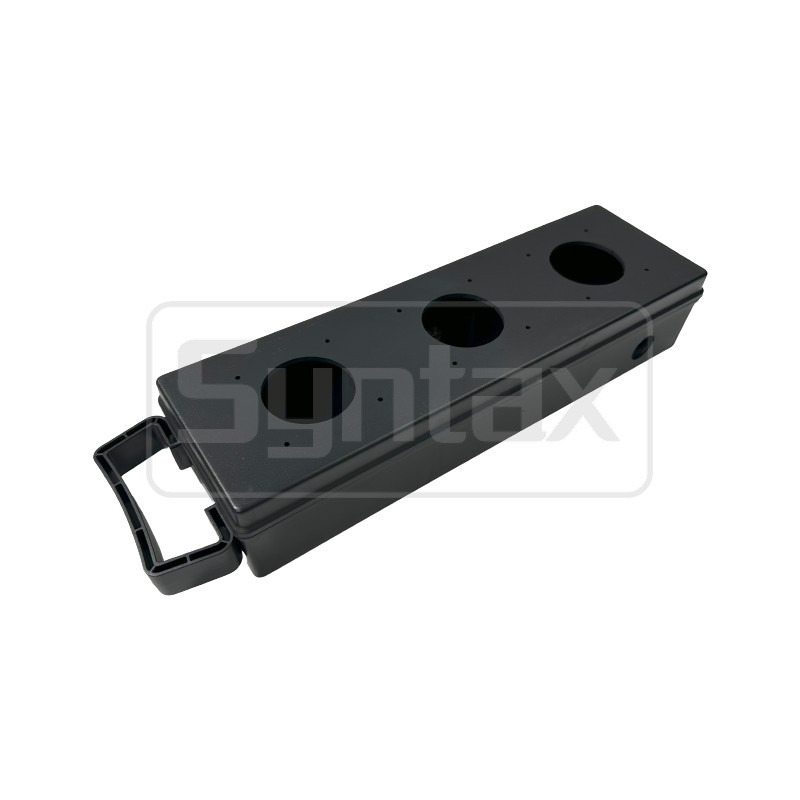

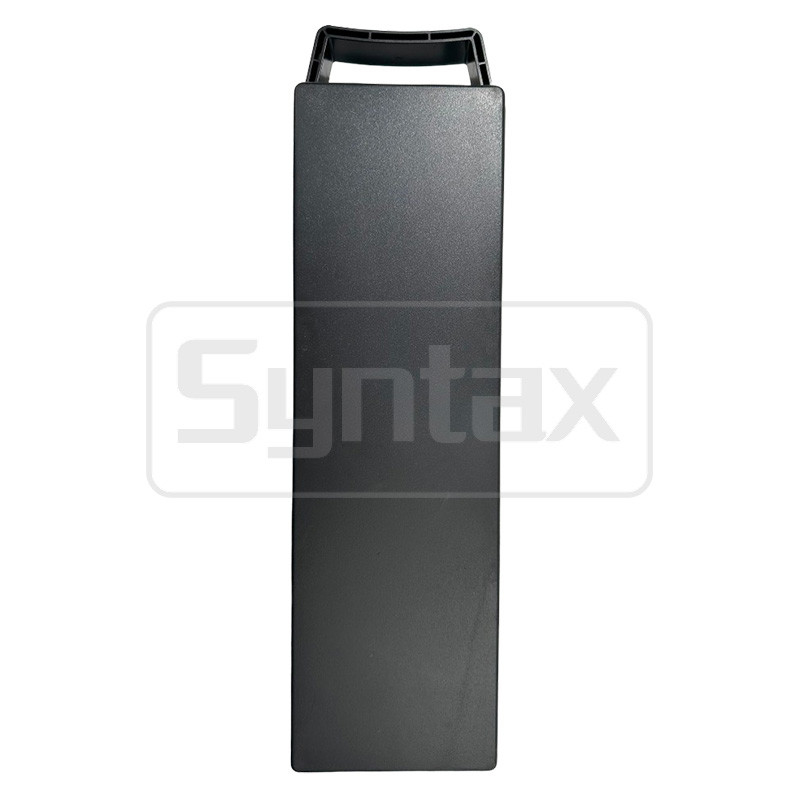

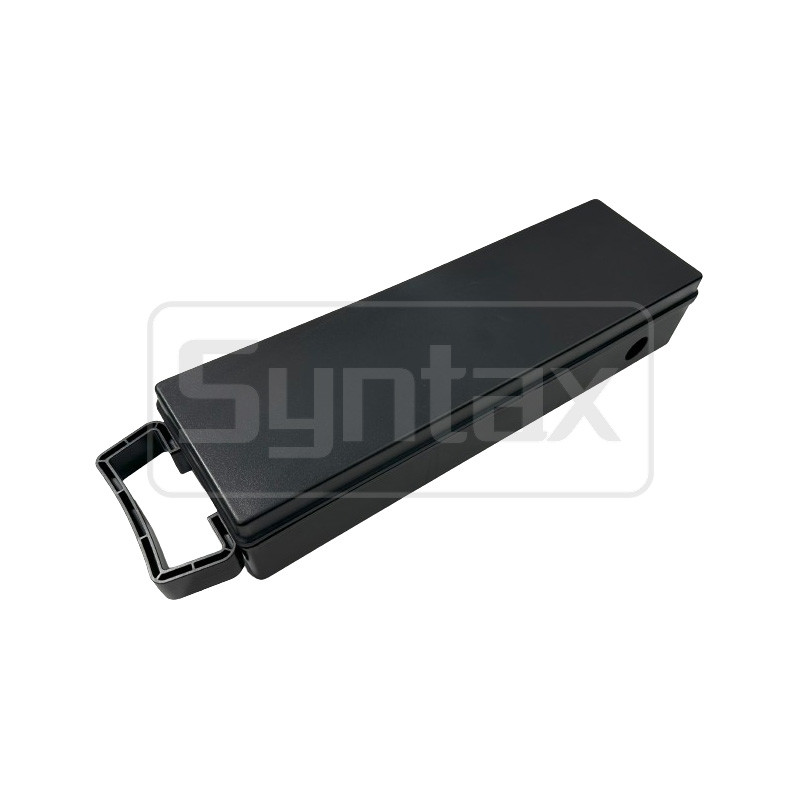

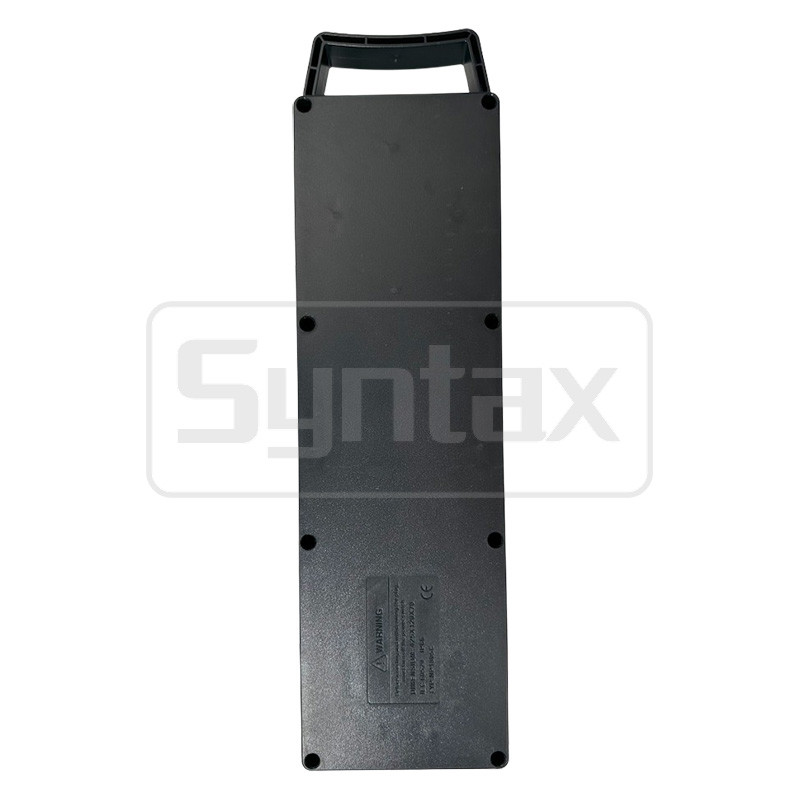

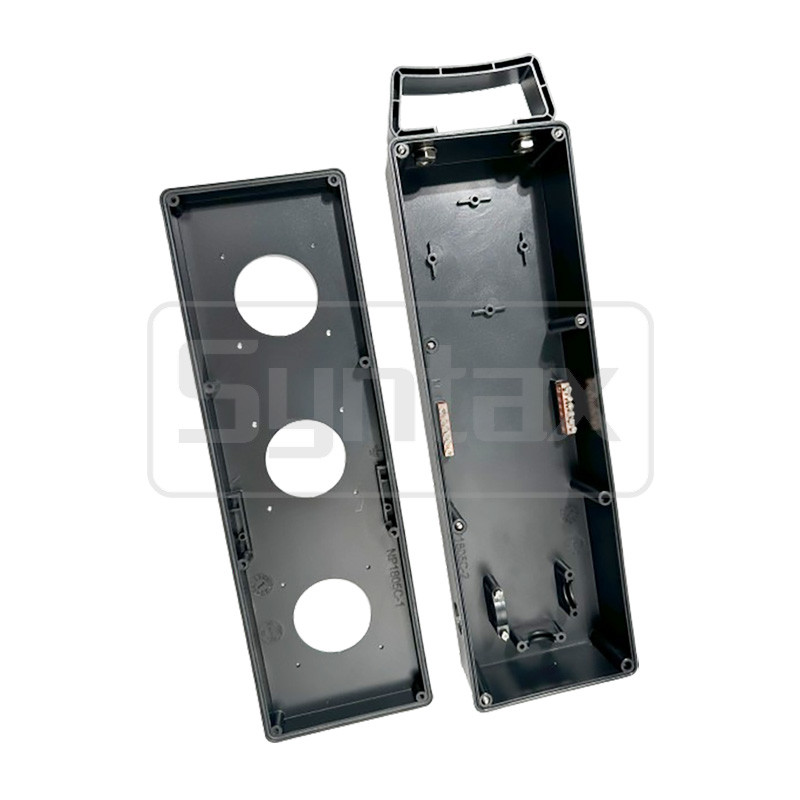

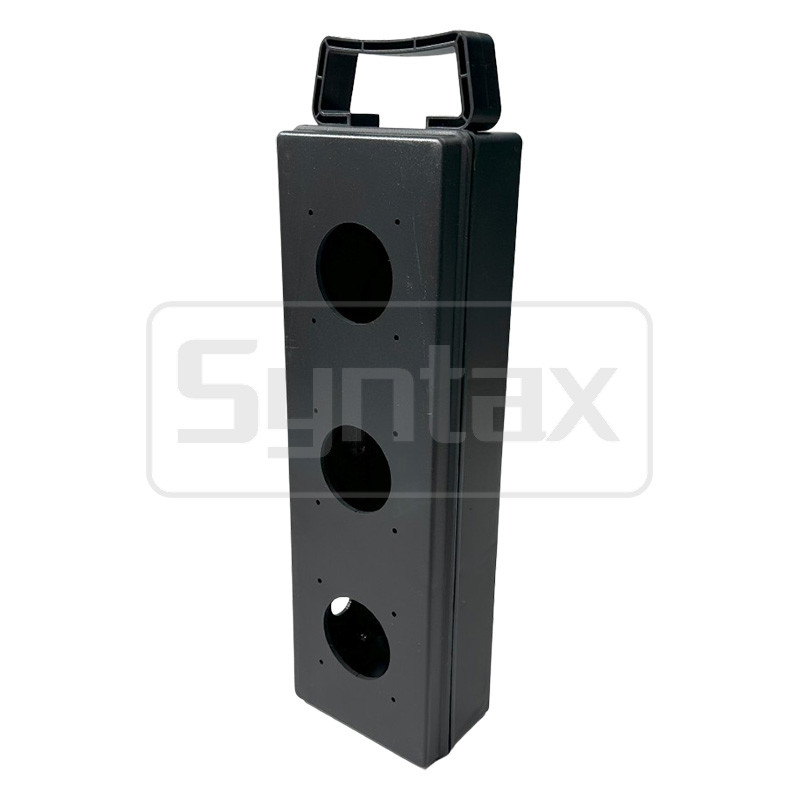

The CT2 Power Distro Box is made from tough plastic - PC, with a 5 mtrs incoming cable, easily getting the power supply from far distance. It gives 3 x 16A outlet sockets allowing multiple applications to be connected at anytime plus the box has a very useful carry handle allowing the splitter to be easily moved around the site. You can hang it in the air as a floating socket box, or lie down just like a home use extension socket.

Since it has 3 nos 16A sockets, allows three different 16A applications to be connected at one time, has a IP44 rating to ensure users are kept safe in dusty and rainy environments plus it is supplied with a tough rubber cable to ensure maximum electrical safety.

The box is compact size includes portable easy-to-carry top handle.

Plug these portable distribution boxes into a power source, such as a generator, to power equipment when electricity is not available. All have breakers’ protection to minimize the risk of electric shock. They're also known as spider boxes.

The design of the polycarbonate plastic distribution box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.

OEM and ODM services are available.

Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.

Applications:

Connectors for every task

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
