Syntax MP24 Event Power Distro Box 63A 3pH+N+E 400V Black Bespoke Socket Board For Indonesia Project

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Poles: 24 Ways
Dimension: 370*340*330mm IP Protection Rate: IP67 Waterproof
Color: Black
High Light:

event power distribution unit


portable distribution unit


32A socket box

Product Description

Syntax MP24 Event Power Distro Box 63A 3pH+N+E 400V Black Bespoke Socket Board For Indonesia Project


Technical Parameters:

Attribute Value
Box MP24 Portable Distribution Box IP67
Color Black
Dimension of Box 370*340*330mm


Main Switch

1 x 5P 63A 400V IP67 Inlet,

protected by 1 x 4P 63A 30mA RCD.

Outgoing 1

Outgoing 1 Breaker

1 x 5P 63A 400V IP67 Panel Mounted Sockets,

protected by 1 x 3P 63A MCB.

Outgoing 2

Outgoing 2 Breaker

1 x 5P 32A 400V IP67 Panel Mounted Sockets,

protected by 1 x 3P 32A MCB.

Outgoing 3

Outgoing 3 Breaker

1 x 5P 16A 400V IP67 Panel Mounted Sockets,

protected by 1 x 3P 16A MCB.

Outgoing 4

Outgoing 4 Breaker

2 x 3P 16A 220V IP67 Panel Mounted Sockets,

protected by 2 x 1P 16A MCBs.

Outgoing 5

Outgoing 5 Breaker

4 x 2P+E 16A 220V IP54 Schuko Sockets,

protected by 4 x 1P 16A MCBs.


Distribution Box by Syntax

Industrial Plugs & Sockets by PowerSyntax

Breakers by Chint

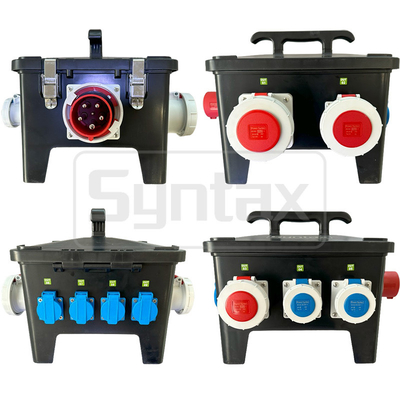

Syntax MP24 Event Power Distro Box 63A 3pH+N+E 400V Black Bespoke Socket Board For Indonesia Project 0


Dimension Drawing of Empty Box:

Syntax MP24 Event Power Distro Box 63A 3pH+N+E 400V Black Bespoke Socket Board For Indonesia Project 1


Features and Benefits:

Design based on EN 60439-4, IEC 60529.

Waterproof and Shockproof design, IP rating up to IP67.

Color: Yellow or Black.

Material: PC (Polycarbonate Resin, the best material of plastic).

Stackable Design for easier storage and daisy chaining.

Operating Temperature:-20℃~+75℃.

Dimension: 370mm*340mm*330mm.



Quick assembly/dismantling.

Safe connections.

Reliable in operation.

Reusability of all components.

Suitable for indoor or outdoor use.

Robust distributor.

Easy handling of distribution boxes and of the entire system.

Integrated feet to facilitate stacking.

24 Months Warranty on all Parts and Manufacturing Defects.



Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!


Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.


The MP series portable distribution boxes are primarily designed and manufactured for use within the events industry our range of portable event power distribution units provide all of the essential requirements for a successful installation.


Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.


Overload protection by circuit-breakers like MCB, RCD, RCCB, and RCBO to make sure the safety of the workforce and equipment.


This three phase 63 Amp portable socket box outdoors is specially bespoke by the customer that main switch by RCD, three phase sockets by 3 poles MCBs, single phase sockets by 1 pole MCBs. We can bespoke power distro boards built to order.


These units can be built to your individual specification, please call or email us with your requirements.


Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.



• Tunnel construction

Drilling rigs

Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

Strip mining

• Chemistry



Container terminals and crane connections in harbors

For versatile power supply at large-scale indoor and outdoor events

Power supply for market places


Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.


Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

  • Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
  • Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
  • Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
  • Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
  • Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
  • Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
  • Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
