| Place of Origin: | China |
|---|---|
| Brand Name: | Syntax |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | RB13 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Packed by paper carton |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 sets/month |
| Material: | Solid Rubber (TPV) | Poles: | 13 Ways |
|---|---|---|---|
| Dimension: | 345.3*250.3*311.5mm | IP Protection Rate: | IP67 Waterproof |
| Color: | Black | ||
| High Light: | rubber box 32 amp,rubber enclosure,solid rubber box |
||
Syntax New RB13 Portable Rubber Box 32A Three Phase Outdoor Mains Distro Box For Live Event Industry in Dubai
Technical Parameters:
|
Drawing:
Dimension Drawing of Empty Box:
Features and Benefits:
Design based on EN 60439-4, IEC 60529.
Water resistant design, IP rating up to IP67.
Impact Protection up to IK10.
UV Resistance: High.
Enclosure Heat Resistance: 100℃ for 100 Hours.
Chemical Resistance: Acids, Bases & Salts.
Color: both Yellow and Black are available.
Material: High Quality Rubber.

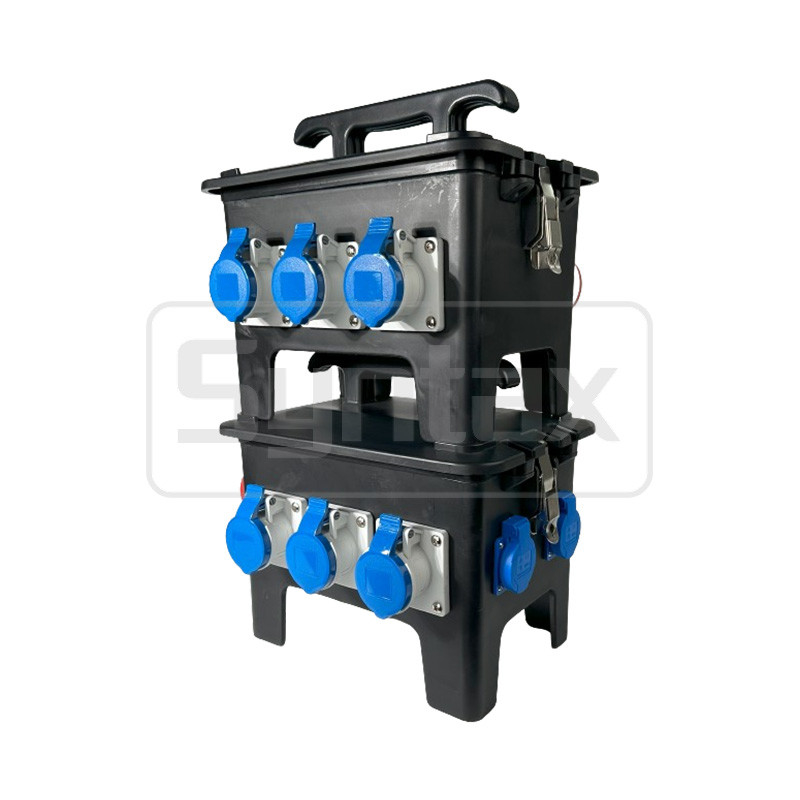

Stackable Design for easier storage and daisy chaining.
Dimension: 345.3mm*250.3mm*311.5mm.
THE ADVANTAGES OF OUR DISTRIBUTION BOXES:
Quick assembly/dismantling.
Safe connections.
Reusability of all components.
Unbreakable, halogen-free and aging-resistant solid rubber housing.
Easy handling of distribution boxes and of the entire system.
24 Months Warranty on all Parts and Manufacturing Defects.
Plugs and sockets are fitted with carriage bolts and lock nuts (to prevent violations).
Specification:
Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!
Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.
The RB series handy solid-rubber boxes are made in solid rubber. We have black and yellow colors optional, if you have special color request, we can also do it for you.
This three phase 32 Amp portable rubber box is newly developed for the live events industry in Dubai, with the incoming of 5P 32A appliance inlet, 3 nos 3P 16A 220V IP44 Panel Mounted Sockets, and 7 nos 2P +E 16A 220V IP54 Schuko Sockets. We can bespoke power distro boxes built to order.
OEM and ODM services are available.
Applications:
• Tunnel construction
• Drilling rigs
• Gravel pits
• Marine
• Railway
• Military
• Industry
• Construction site
• Event technology
• Strip mining
• Chemistry
• Airports
• Quarries
• Container terminals and crane connections in harbors
• For versatile power supply at large-scale indoor and outdoor events
• Power supply for market places
Customized Solutions:
If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.
Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:
