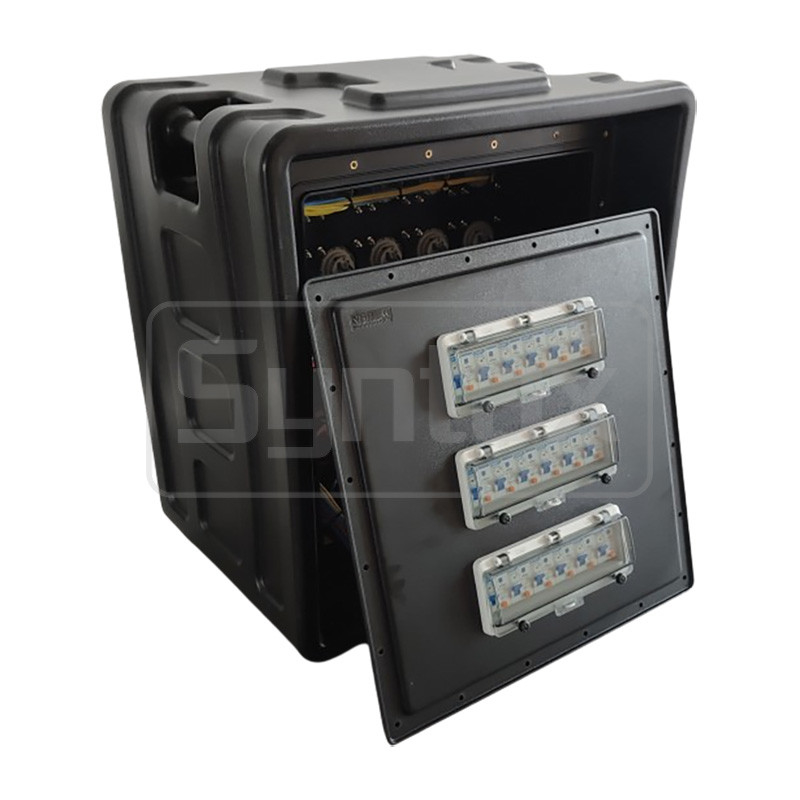

Syntax MD3 200A HDPE Power Distribution Units IP67 Industrial Socket Box 630x430x680mm

Syntax MD3 200A HDPE Power Distribution Units IP67 3 Phase 125 amp Industrial Socket Box 630x430x680mm

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60439-4, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP67.

• Color: Black, Orange and Yellow are available.

• Material: HDPE / PE (polyethylene, a kind of plastic).

• Stackable Design for easier storage and steady body.

• Operating Temperature:-20℃～+75℃.

• Dimension: 630mm x 430mm x 680mm.

The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• Integrated feet to facilitate stacking.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!

Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.

The MD series IP67 Weather Protected 3 Phase Power Distribution Box from Syntax offers excellent electric power distributing and safety to work alongside your generator. The best value in market, our distribution boards offer the ultimate in portable power distribution.

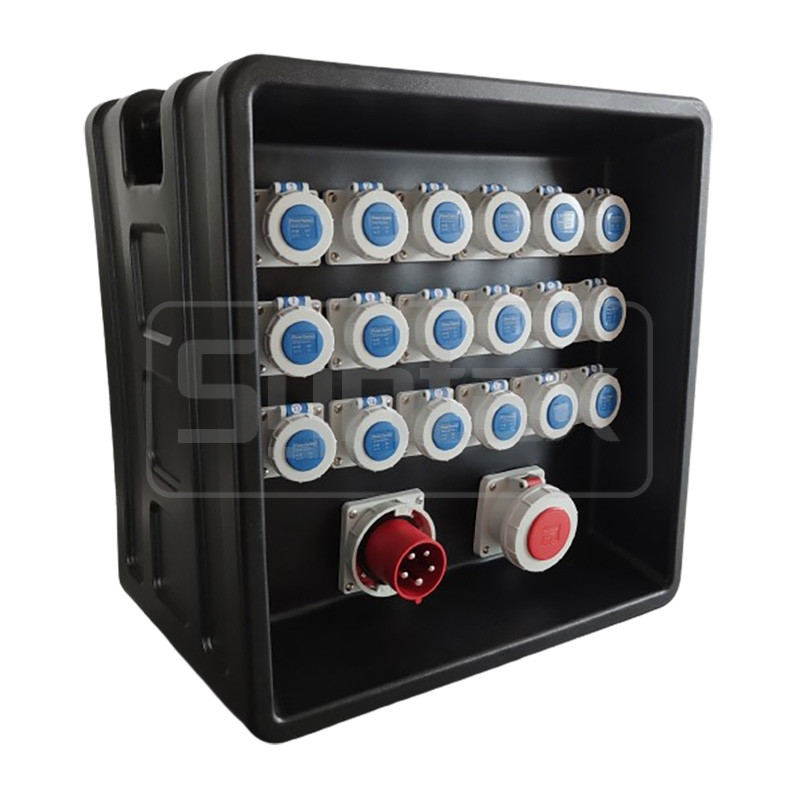

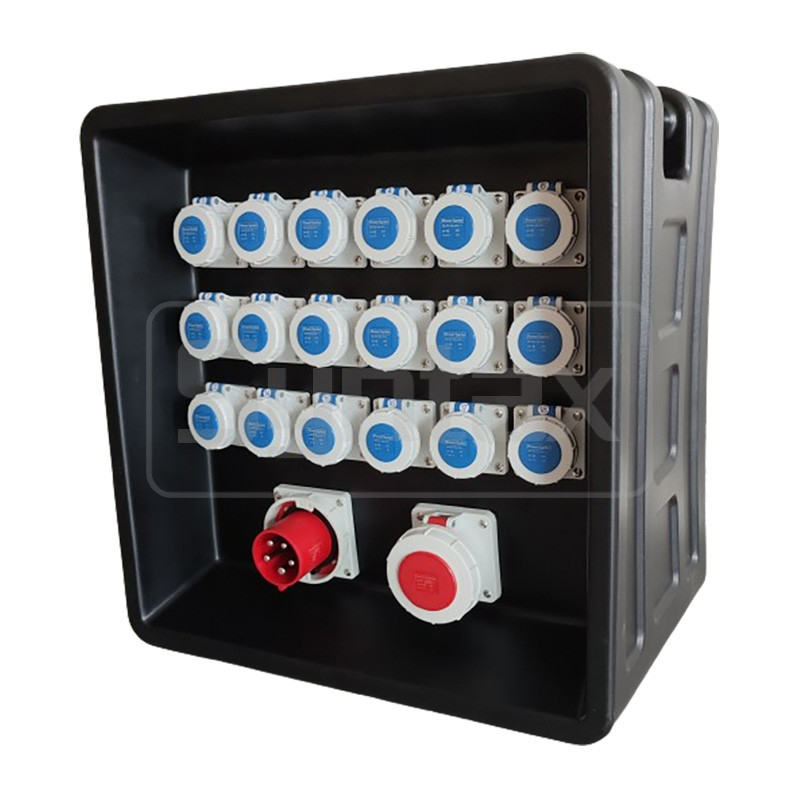

This three phase 63 Amp portable socket box outdoors is specially bespoke by a customer from Ireland that has 18 nos 3P 16A 220V Panel Mounted Sockets as outgoing sockets, each protected by RCBOs. We can bespoke power distro boxes built to order.

The Syntax units offering excellent circuit protection using MCB, RCD, RCCB or RCBO breakers, you can be rest assured you and your workforce remain as safe as possible whilst using our equipment.

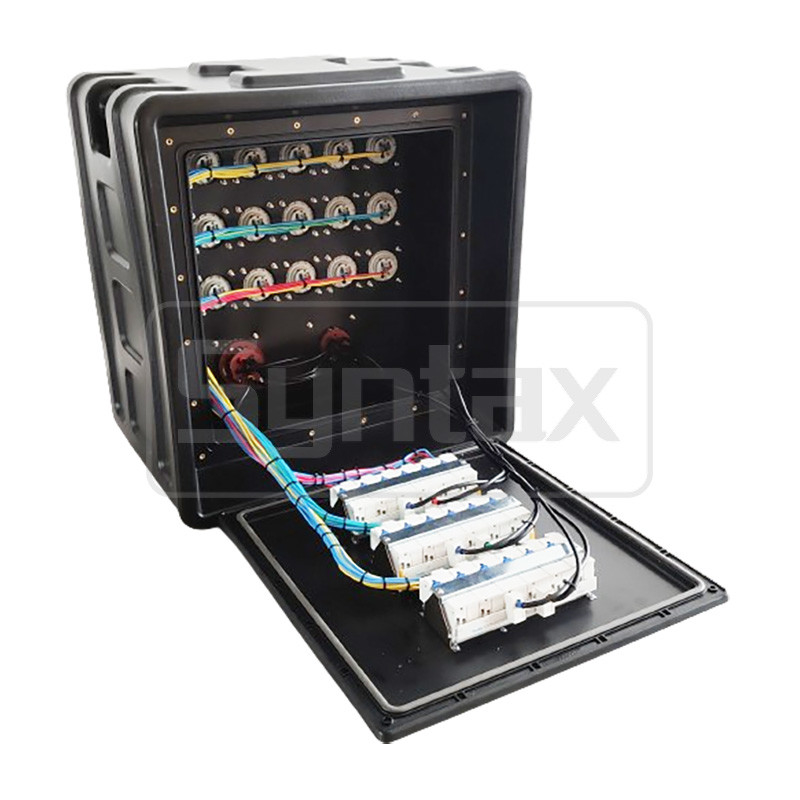

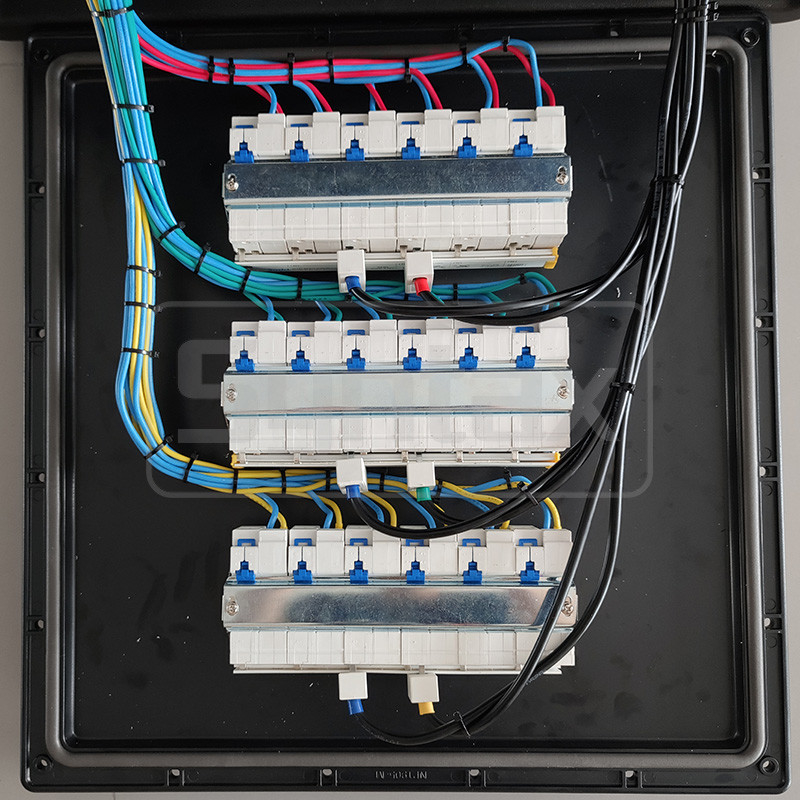

The design of the plastic CEE socket box can be customized as per your requirement and specification, we have CNC perforating machines for cutting the holes for installing any devices onto the box. Because we have an experienced and professional electrician team for the installation of the box, we can pre-wire the plugs & sockets, circuit breakers and other electric devices before delivering to you.

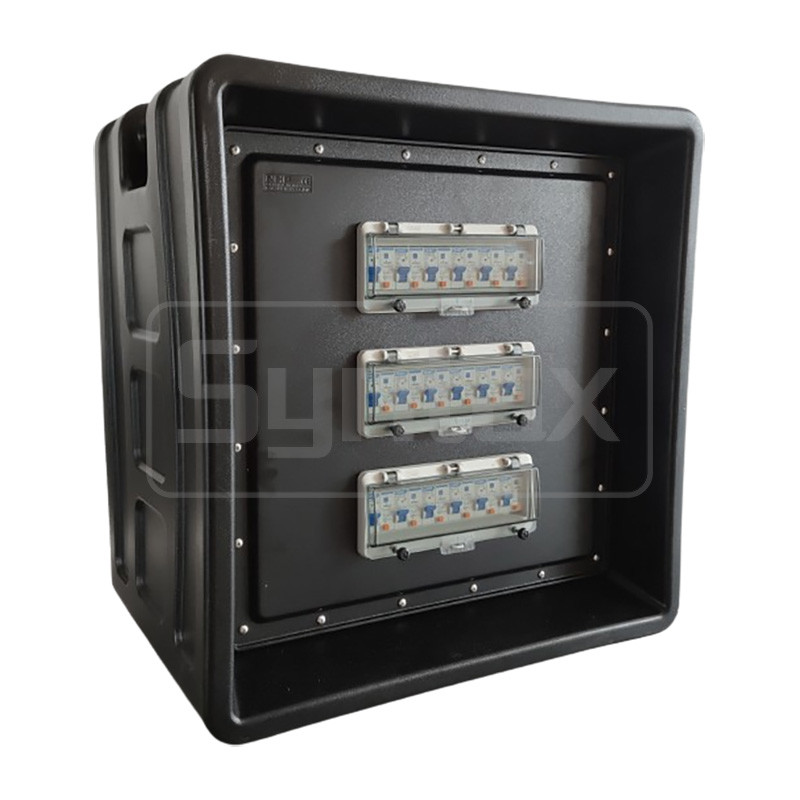

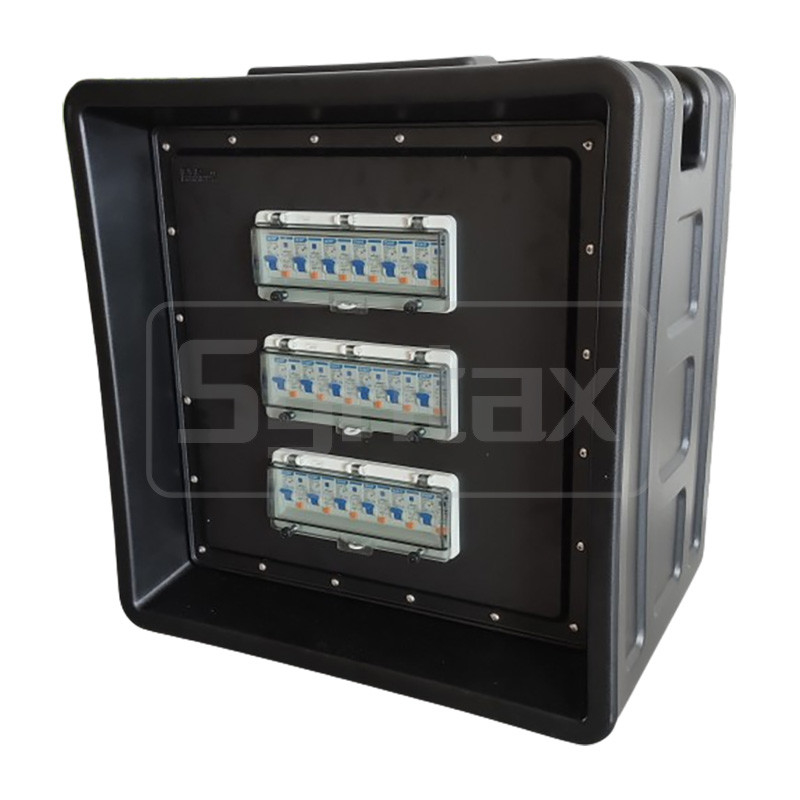

We can also use our IP67 waterproof lockable hinged windows to prevent the electrical devices like circuit breakers, signal lamps, push buttons and etc. from water, rain, and dust.

Remarks for the PE material: the PE material is heavy duty, hard, strong and tough. The box is hard to be crack, PE material has the closest performance as rubber material. Both of them are the hardest material of plastic.

Applications:

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.
• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.
• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.
• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.
• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.
• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.
• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
