Syntax CX2 Wall Mounted Distribution Box 100AMP Three Phase Made in PC Electric Grey Stage Box 280*280*155mm

Syntax CX2 Wall Mounted Distribution Box 100AMP Three Phase Made in PC Electric Grey Stage Box 280*280*155mm

Technical Parameters:

Drawing:

Dimension Drawing of Empty Box:

Features and Benefits:

• Design based on EN 60309, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP65.

• Color: Electric Grey. Other colors can be customized.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Wall Mounted or fixed a handle / a trolley on the box.

• Operating Temperature:-20℃～+75℃.

• Dimension: 280mm*280mm*155mm.

The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• 24 Months Warranty on all Parts and Manufacturing Defects.

Specification:

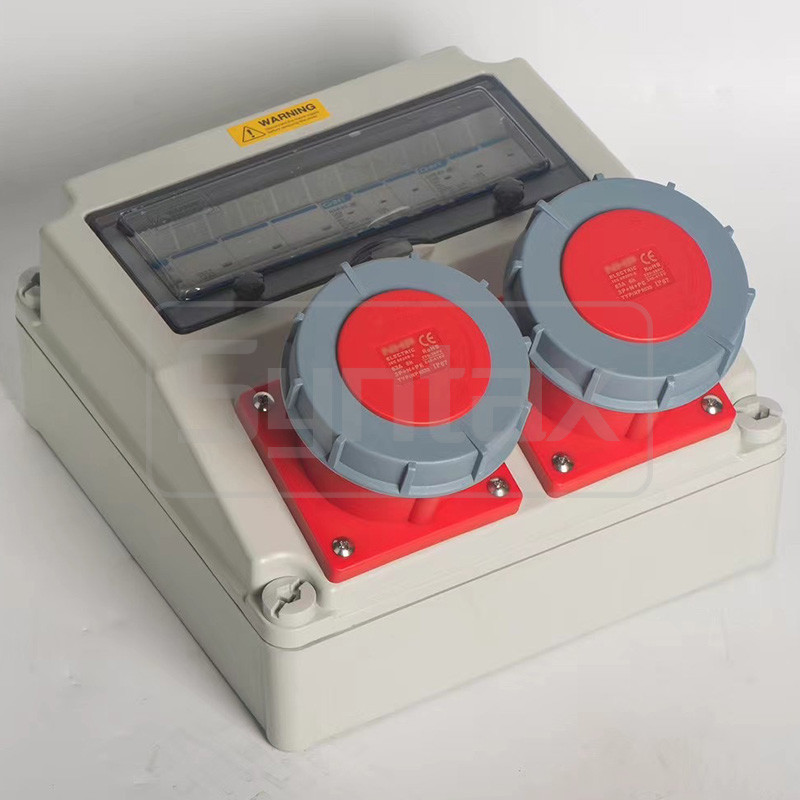

The 100 AMP wall mounted distro box is made in PC material in wall mounted type, there’s no incoming plug of the box, A 100A MCB for the connection of the incoming cables. The outgoing sockets are two 5P 32A 400V sockets, which are protected by 3 poles MCBs. All the power distro boards are built to order.

Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!

Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.

The MP series portable distribution boxes are primarily designed and manufactured for use within the events industry our range of portable event power distribution units provide all of the essential requirements for a successful installation.

Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.

Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.

Applications:

• Tunnel construction

• Drilling rigs

• Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

• Strip mining

• Chemistry

• Airports

• Quarries

• Container terminals and crane connections in harbors

• For versatile power supply at large-scale indoor and outdoor events

• Power supply for market places

Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.

Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
