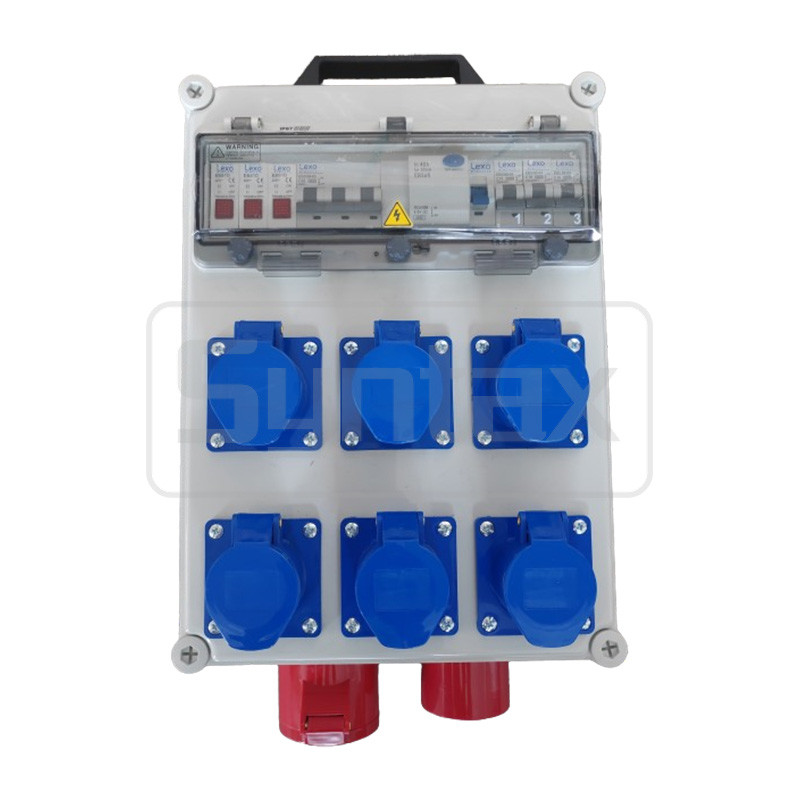

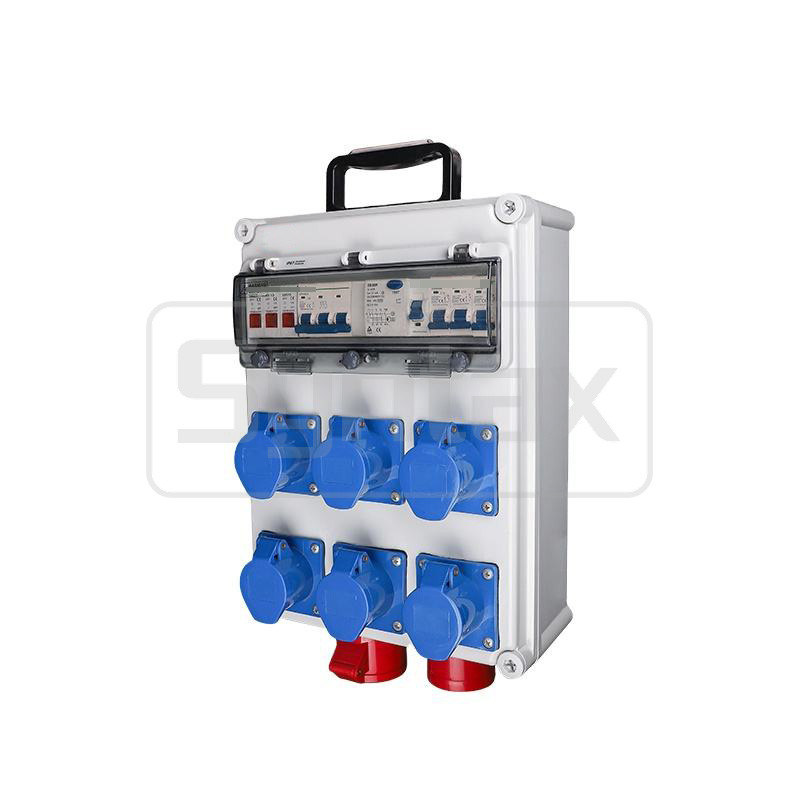

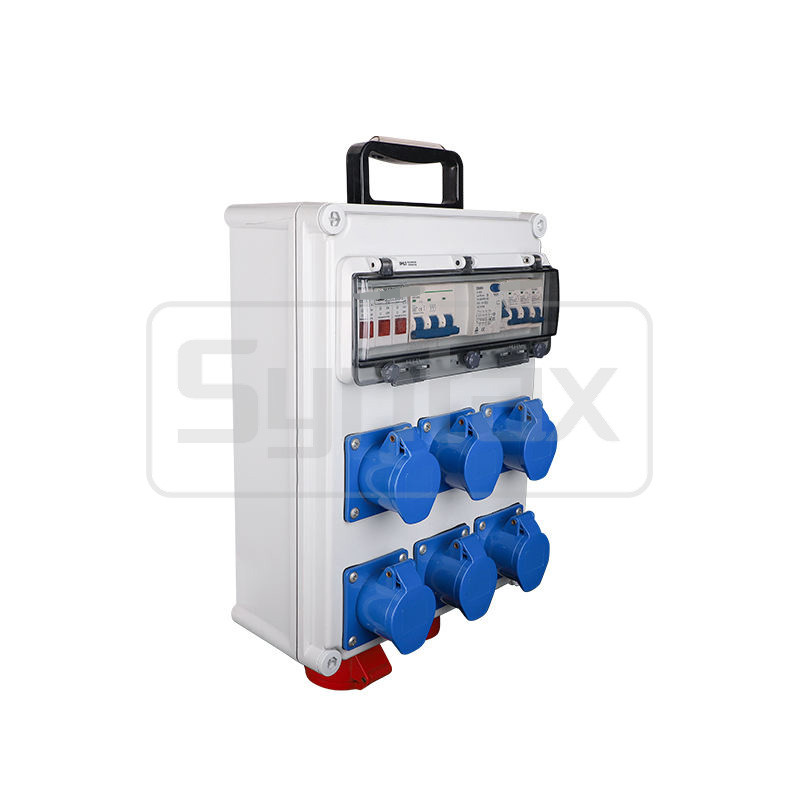

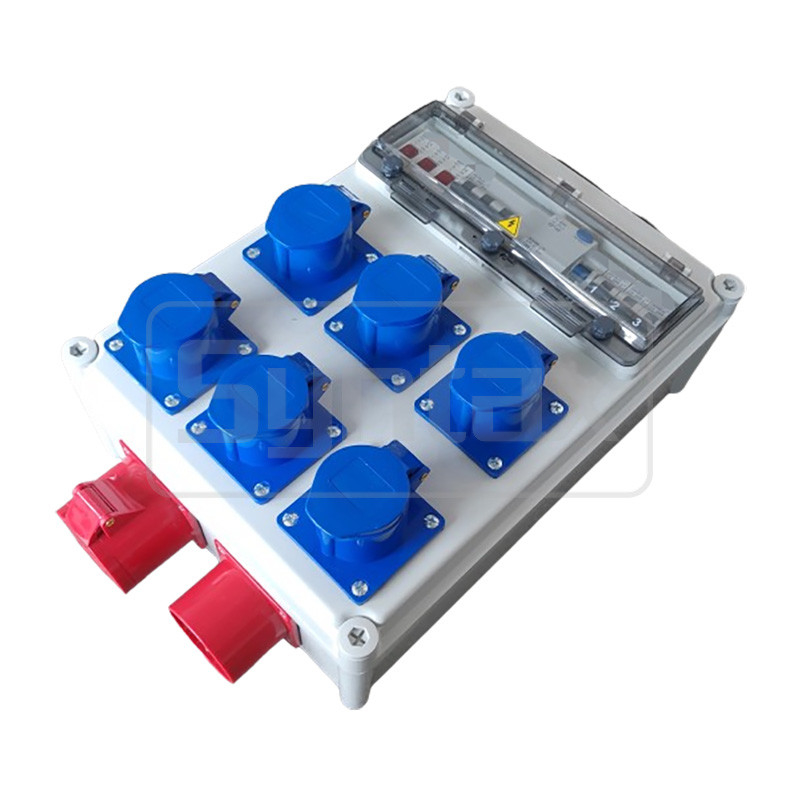

Syntax JJ17 Wall Mounted Distribution Box 32AMP Three Phase Earth Leakage Protection Maintenance Box 280*380*130mm

Basic Information
Place of Origin: China
Brand Name: Syntax
Certification: EN 60309, IEC 60529, SAA
Model Number: JJ17
Minimum Order Quantity: 1 set
Packaging Details: Packed by paper carton
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Detail Information
Material: PC (Polycarbonate Resin, The Best Material Of Plastic) Dimension: 280*380*130mm
IP Protection Rate: IP65 Waterproof Color: Electric Grey
High Light:

power box 32A

,

receptacle combination 32AMP

,

Electrical Maintenance Enclosure


Product Description

Syntax JJ17 Wall Mounted Distribution Box 32AMP Three Phase Earth Leakage Protection Maintenance Box 280*380*130mm



Technical Parameters:

Attribute Value
Box

JJ17 Wall Mounted Distribution Box IP65

Color

Electric Grey

Dimension of Box

280*380*160mm

Incoming

Main Switch

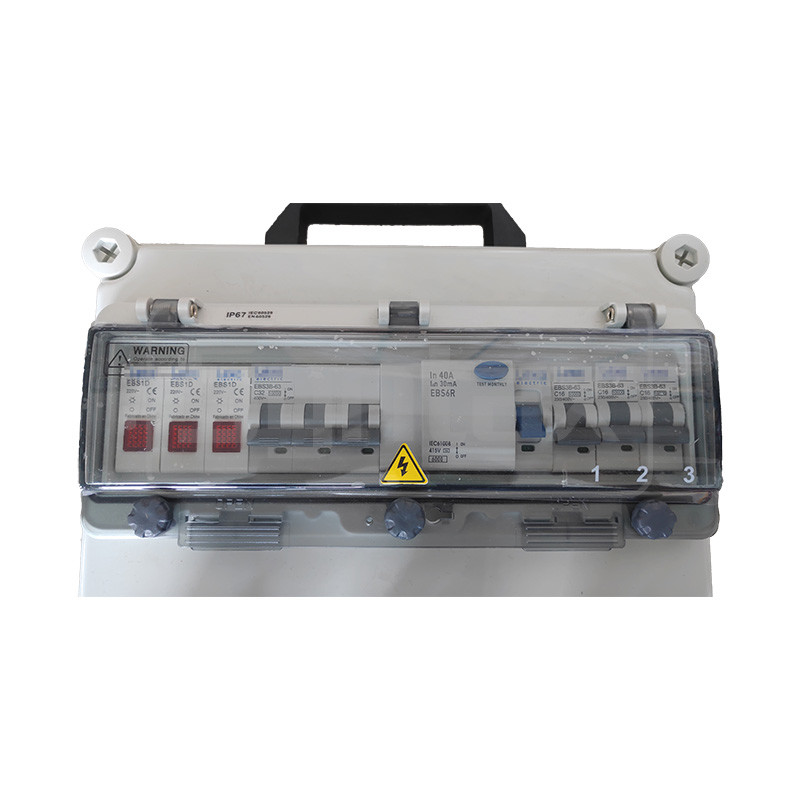

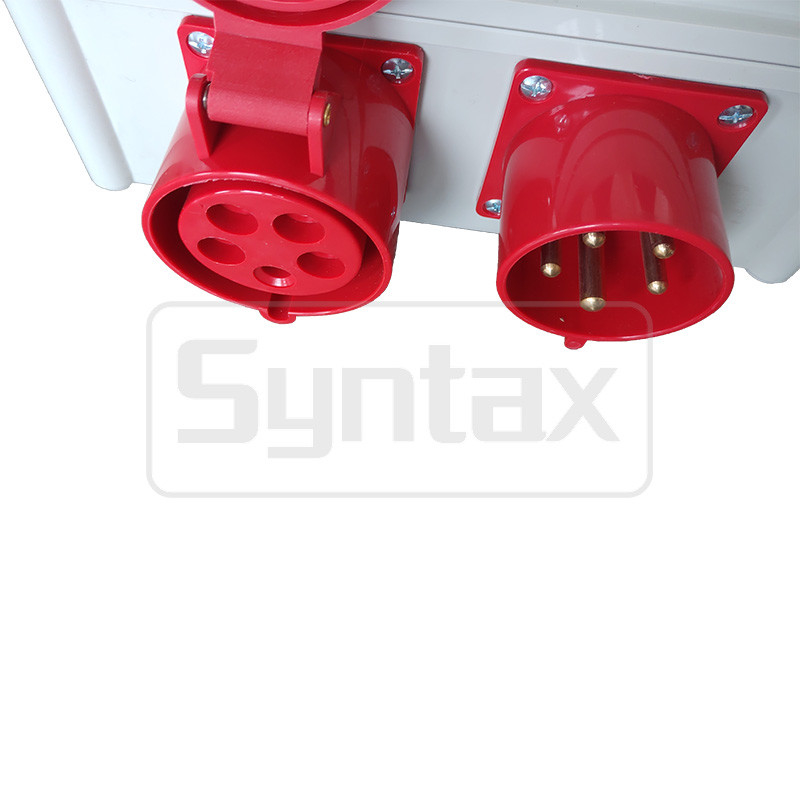

1 x 5P 32A 400V IP44 Inlet at the bottom, protected by 1 x 3P 32A MCB + 1 x 4P 40A 30mA RCD.

Outgoing 1

Outgoing 1 Breaker

1 x 5P 32A 400V IP44 Panel Mounted Sockets, loop through.

Outgoing 2

Outgoing 2 Breaker

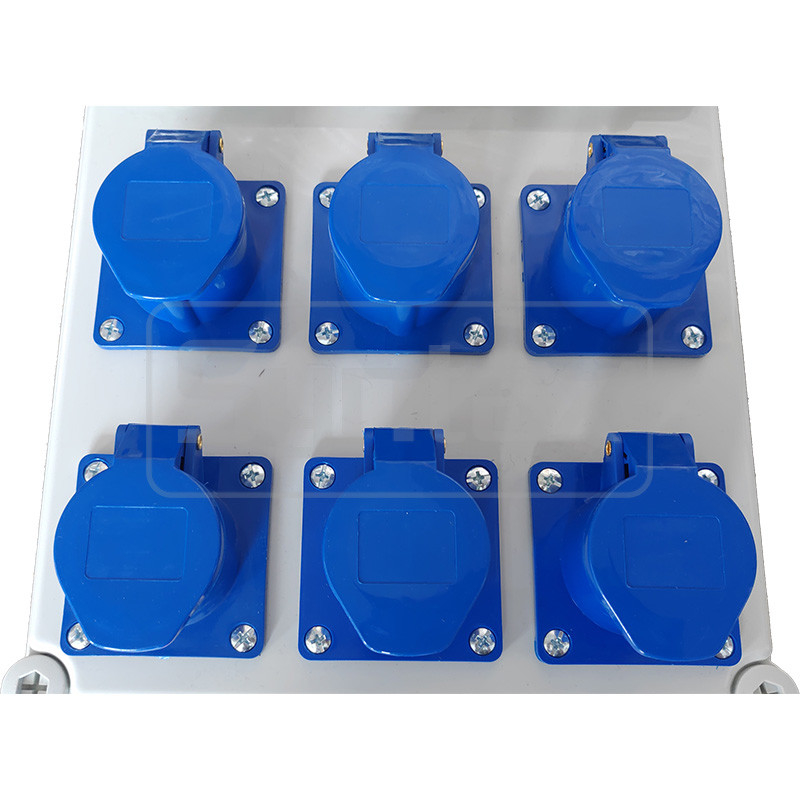

6 x 3P 16A 220V IP44 Panel Mounted Sockets, protected by 3 x 1P 16A MCBs.

Brands

Distribution Box by Syntax

Industrial Plugs & Sockets by PowerSyntax

Breakers by Chint



Drawing:

Syntax JJ17 Wall Mounted Distribution Box 32AMP Three Phase Earth Leakage Protection Maintenance Box 280*380*130mm 0



Dimension Drawing of Empty Box:

Syntax JJ17 Wall Mounted Distribution Box 32AMP Three Phase Earth Leakage Protection Maintenance Box 280*380*130mm 1



Features and Benefits:

• Design based on EN 60309, IEC 60529.

• Waterproof and Shockproof design, IP rating up to IP65.

• Color: Electric Grey. Other colors can be customized.

• Material: PC (Polycarbonate Resin, the best material of plastic).

• Wall Mounted or fixed a handle / a trolley on the box.

• Operating Temperature:-20℃~+75℃.

• Dimension: 280mm*380mm*130mm.



The Advantages of Our Distribution Boxes:

• Quick assembly/dismantling.

• Safe connections.

• Reliable in operation.

• Reusability of all components.

• Suitable for indoor or outdoor use.

• Robust distributor.

• Easy handling of distribution boxes and of the entire system.

• 24 Months Warranty on all Parts and Manufacturing Defects.



Specification:

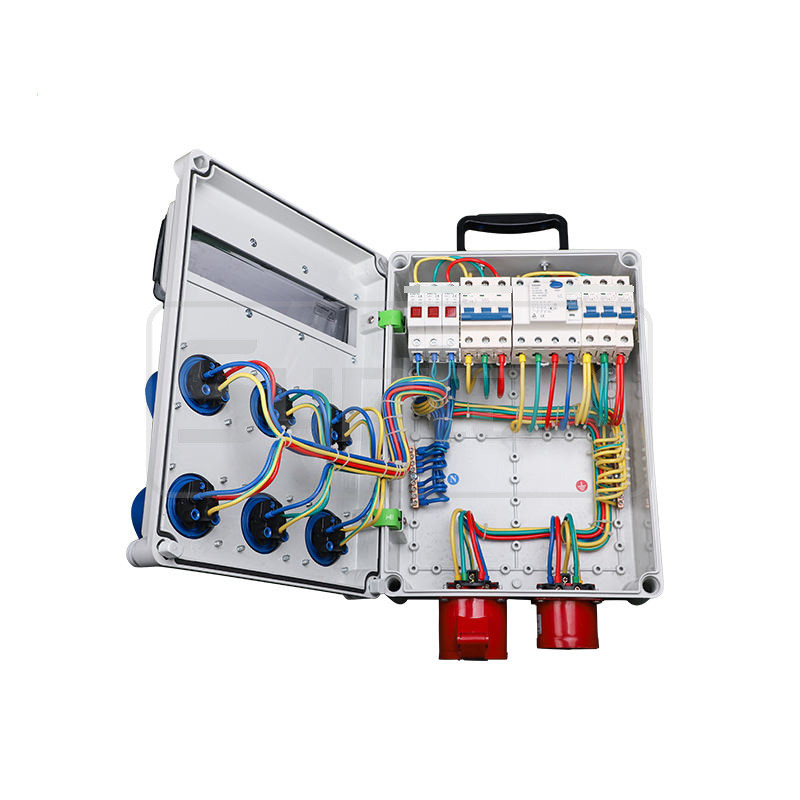

The 32 AMP three phase wall mounted distribution board is made in PC material, the incoming inlet 32A/5P is at the bottom, its easier for connection, the outgoing socket 32A/5P is loop through without protection, the 6 nos outgoing socket 16AMP/3P is protected by 3 nos MCBs. All the power distro boards are built to order.



Zhejiang Hyper Electrical Supplies manufacture a wide range of Portable Power Distribution products under the "Syntax" brand name. We provide the portable power distribution solution!



Syntax stands for high-quality, sophisticated design and expert manufacturing of your power solutions. Components are cutting-edge technology and our professional team of technicians produce products using state-of-the-art machining and techniques. We make the Power Distribution Enclosures from 16 Amp up to 630 Amp.



The MP series portable distribution boxes are primarily designed and manufactured for use within the events industry our range of portable event power distribution units provide all of the essential requirements for a successful installation.



Space Saving Stackable Modular Design allows multiple-tier, stacked use and storage.

Protection degree up to IP67 for weather resistance to rain, sleet, snow and external formation of ice on the box.



Remarks for the PC material: the PC material is almost the most expensive plastic material we can use for making plastic distribution boxes. It’s light, hard, strong and smooth.



Applications:

• Tunnel construction

Drilling rigs

Gravel pits

• Marine

• Railway

• Military

• Industry

• Construction site

• Event technology

Strip mining

• Chemistry

Airports

Quarries

Container terminals and crane connections in harbors

For versatile power supply at large-scale indoor and outdoor events

Power supply for market places



Customized Solutions:

If standard solutions do not meet all the requirements of an application, customer-specific solutions are made upon the request.



Application of the Portable Distribution Boxes, Industrial Plugs & Sockets:

• Public Infrastructure Industries: Urban Rail Transit, Nuclear Per Station, Wind Power Station, Port, Dock, Airport, Tunnel, Metro, Bridge, Road, Construction Site, and etc.

• Production and Processing Enterprises: Metal Processing Plant, Paper Mill, Cement Plant, Power Plant, Aluminum Manufacturer, Steel and Iron Works, Automobile Works, Sewage Treatment Plant, and etc.

• Communication Industries: 4G Communication Equipment, 5G Communication Equipment, 5G Communication Station, GPS Equipment, WIFI Equipment, and etc.

• Electronic Industries and Food Industries: Cellphone Automatic Production Line, Car Automatic Production Line, Food Automatic Production Line and etc.

• Music and Sports Industries: Concert, Stadium, Presentation, Meeting Center, Hotel, Touring and Film equipment, and etc.

• Civil Industries: Hospital, School, Bank, Square, Shopping Mall, Supermarket, and etc.

• Electric Automobile Industries: Electric Cars Charger, Charger Distribution Box, Intelligent Charging System, and etc.
