MP24 Series Portable Power Distribution Box IP67 Light Weight Strong Body

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: PE Hard Plastic Color: Yellow
Dimension: 370*340*330mm Rated Voltage: 208~240 Volt
IP Rating: IP67 Water Resistance Design: Customized Design Is Available
High Light:

power distribution box

,

temporary power boxes spider


Product Description

IP67 MP24 Series Customized Power Distribution System PE Orange Box Light Weight with Strong Body



Application



The new doghouse (portable distribution system) is ideal for tradeshow and exhibitions where a large number of convenience receptacles are needed over a wide area. The feed thru feature allows multiple boxes to be placed along one feed so that receptacles can be easily placed wherever needed. Doghouses are also popular in live event and audio applications where multiple amplifiers, speakers and other audio components require power while positioned on a stage or other venues.



Features & Benefits



  • Heavy-duty molded polyethylene enclosure is fully insulated and resistant to shock, impact and corrosion, preventing premature failure and minimizing equipment downtime
  • Compact design will save space while in use and allow for easier transportation when stowed
  • Choice of lightweight materials makes for a single-person lift at under 35 lbs.
  • Rounded edges will not damage tents and fabrics
  • Weather resistant, open-neutral GFCI protection helps prevent unsafe operation and nuisance tripping
  • Hydraulic magnetic circuit breakers provide overcurrent protection that will not trip due to ambient temperatures
  • All wiring and OCP devices located under sturdy, waterproof covers
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion
  • End plate grips for easy handling in tight spaces
  • Duplex receptacles are color coded for phase identification



Markets Served



  • Convention Center
  • Audio Entertainment
  • Live Events
  • Tradeshow
  • Exhibitions



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE flush mouted socket  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE flush mouted socket  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB



Product Pictures

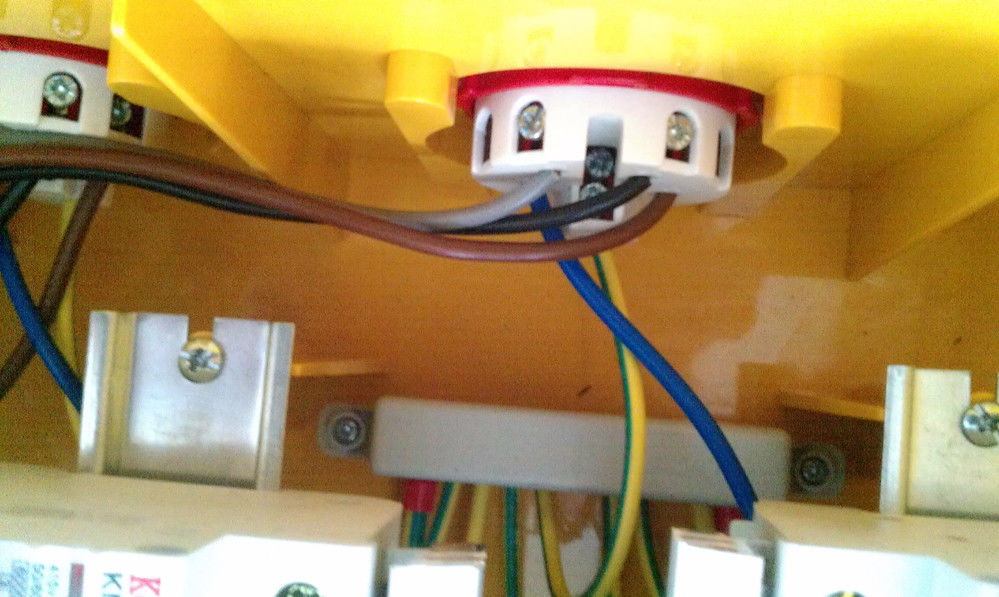

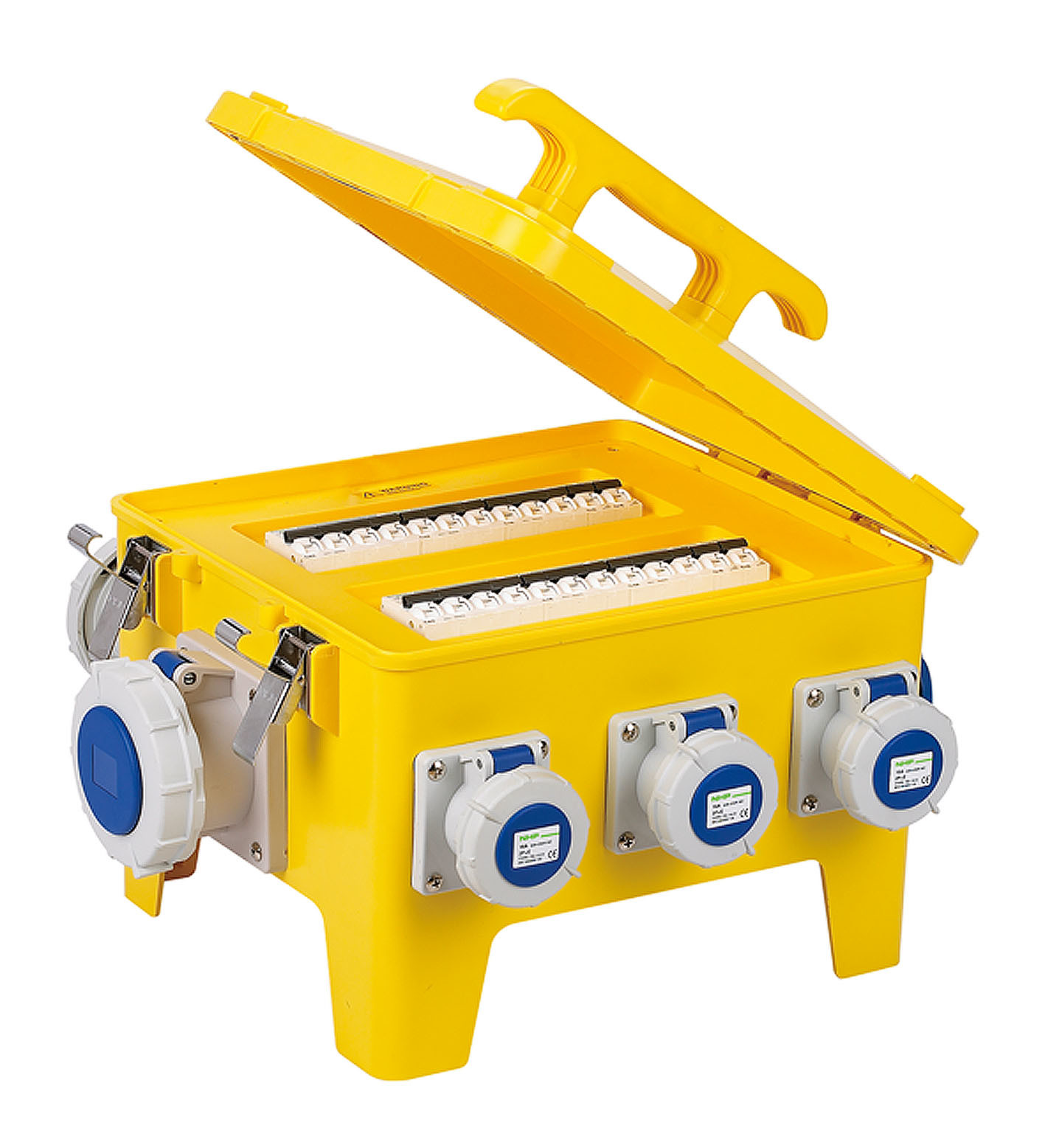

MP24 Series Portable Power Distribution Box IP67 Light Weight Strong Body 0

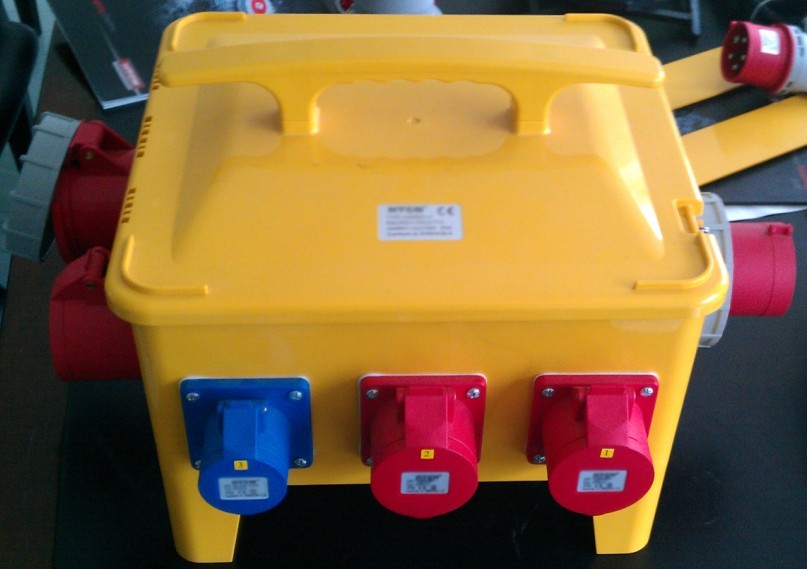

MP24 Series Portable Power Distribution Box IP67 Light Weight Strong Body 1
