| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP12 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Thermoplastic PE | Rated Voltage: | 240 Volts |
|---|---|---|---|
| Rated Current: | 63 Amps | Protection Degree: | IP66 Waterproof |
| Overcurrent Protection: | By RCD | Wire Connection: | All Connected |
| Highlight: | portable power board,portable electrical distribution box |
||
MP12 Waterproof Mobile Power Distribution Box in Black 63 Amps 240 volts PE Material
This weather resistant spider box includes (6) 20 Amp GFCI protected duplex receptacles for use in maintenance and temporary shelters to provide power to fans, lights, light power tools and computers.
Markets Served
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply panel mounted plug | 1 * 63A / 415V 5 pins IP67 CEE panel mounted socket | 1 * 4P 63A 30mA RCD |
| 1 * 32A / 415V 5 pins IP67 CEE panel mounted socket | 1 * 3P 63A MCB | |
| 2 * 16A / 415V 5 pins IP67 CEE panel mounted socket | 1 * 3P 32A MCB | |
| 2 * 16A / 415V 3 pins IP67 CEE panel mounted socket | 2 * 3P 16A MCB | |
| 4 * 16A / 230V SCHUKO socket outlets | 6 * 1P 16A MCB |

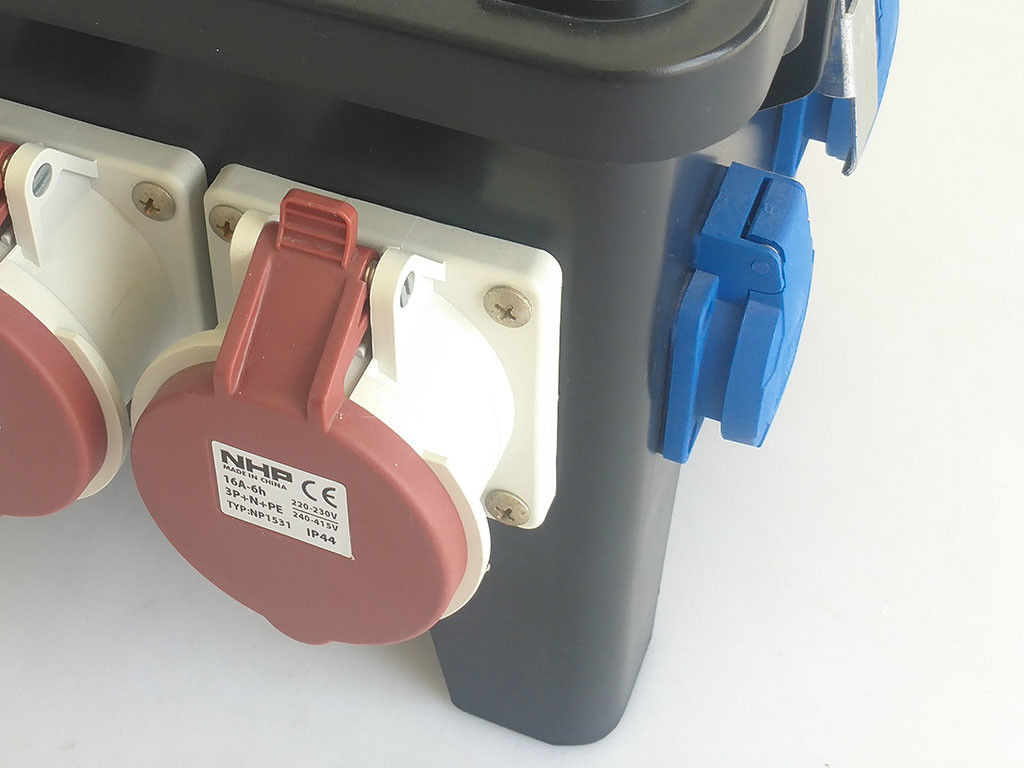

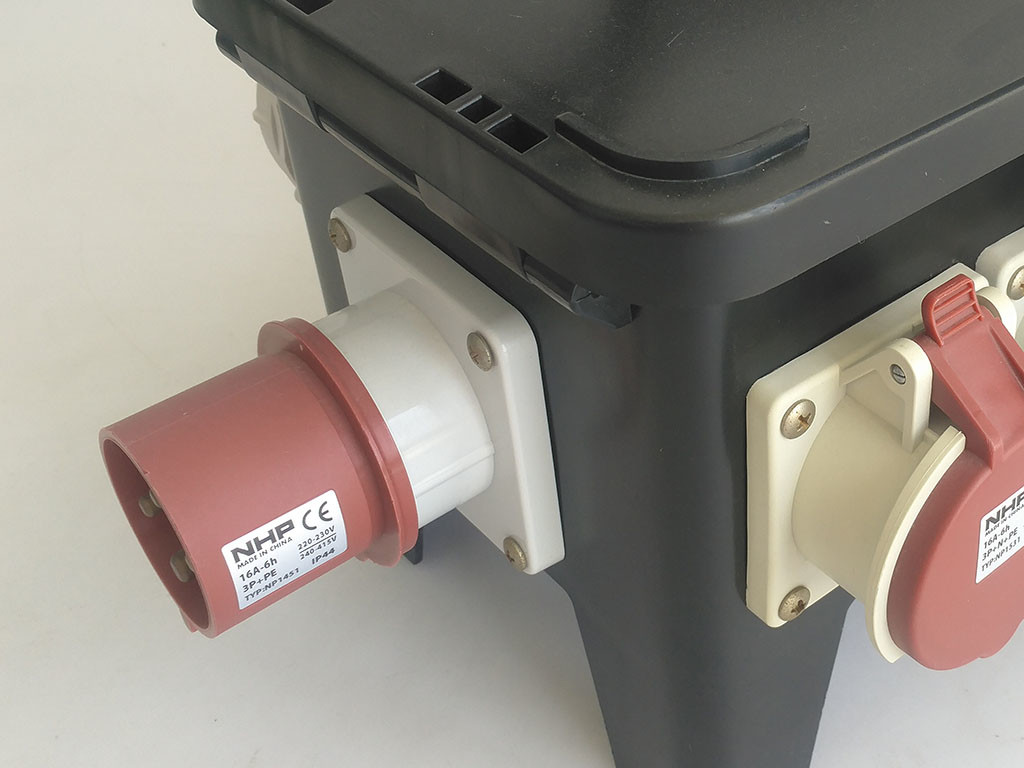

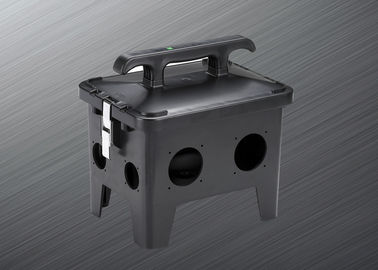

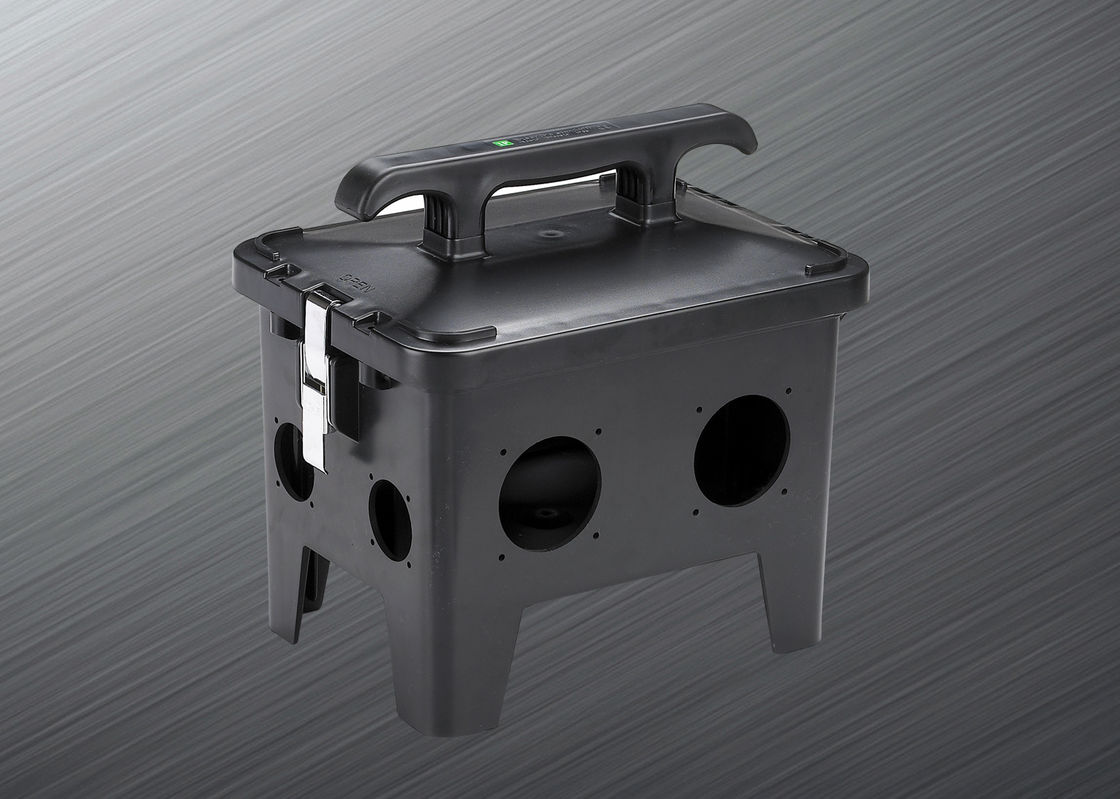

Product Pictures
