| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 836 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | PA | Poles: | 3P |
|---|---|---|---|
| Voltage & Current: | 230Volt 63Amps | IP Rating: | IP44 Weatherproofing |
| Frequency: | 50-60Hz | Color: | Bleu |
| Highlight: | industrial type socket,low voltage plugs and sockets |
||

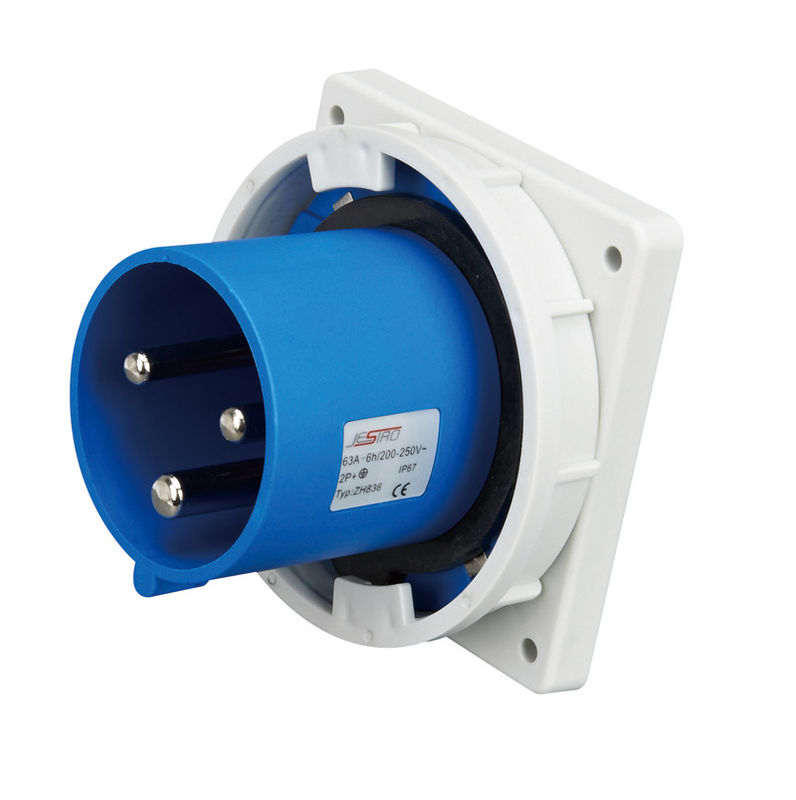

3P 63A IP44 Weather Resistant Panel Mounted Inlets Blue 3rd Generation Industrial Plugs part no. 836
Description:
HYPER IEC 60309 Plugs feature housings constructed of a rugged thermoplastic which provides maximum protection from physical and environmental abuse. They also resist impact, heat, flame and chemicals, provide superior performance in low-to-high ambient temperature extremes and offer excellent UV stability for superior outdoor performance.
Part no. 836
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 835 | 836 | 5 | 475 | ||||
| 4 | 3740 | 3656 | 3657 | 5 | 558 | ||||
| 5 | 3658 | 5 | 591 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | s | ||||
| 63A | 3 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | ||||
| 4 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | |||||
| 5 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | |||||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||||
