Description: | Industrial Plug | Current & Voltage: | 32 A 230 V |
---|---|---|---|
Earth Position: | 6 H | Poles: | 3P |
Protection Grade: | IP67 Water Resistance | Color: | Blue |
Highlight: | low voltage plugs and sockets,industrial power socket outlet |

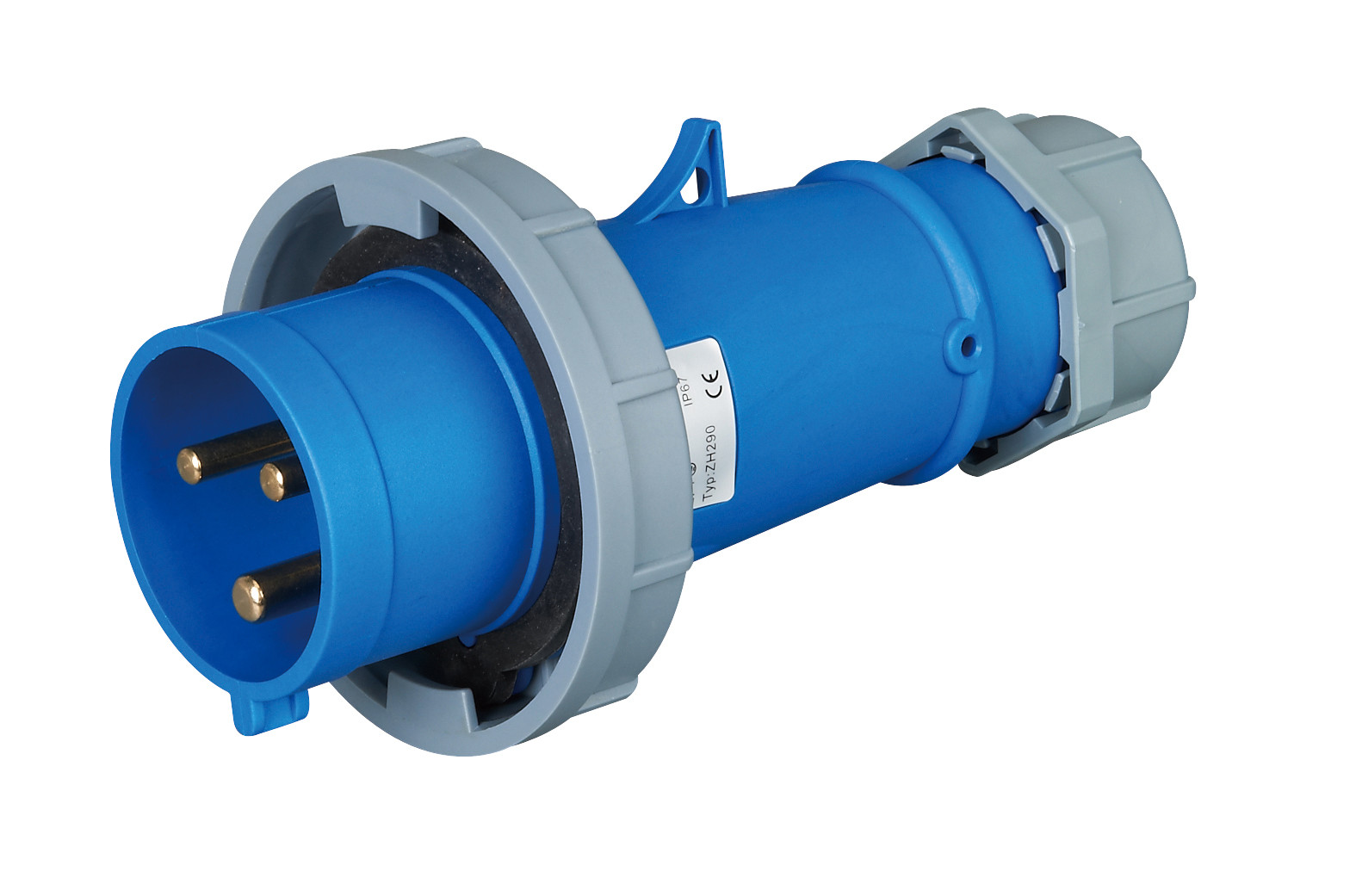

3P32A IP67 Water Resistance Blue Industrial Plug 3rd Generation Industrial Plugs and Sockets part no. 290
Main features:
Plug Easy & Safe
High quality basic range
IP44 (splash-proof) protection degree
Range from 16 A to 32 A
Contact parts made of brass for reliable connection
The housing is made of standard PA plastic material
Cable entry is equipped with a compression gland
Plugs Tough & Safe
Designed for tough environments
IP44 (splash-proof) or IP67 (watertight) protection degree
Range from 16 A to 125 A
Robust enclosure made of PBT plastic material which withstands heavy-duty usage and chemicals
Perfect for application in food and beverage industry, heavy industry, ship containers, airports, train stations, construction sites, mines, …
Part no. 290
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
32A | 3 | 289 | 290 | 291 | 10 | 292 | ||||
4 | 292 | 293 | 294 | 2175 | 295 | 296 | 297 | 10 | 310 | |
5 | 298 | 299 | 300 | 10 | 356 |
Current | Poles | a | b | c | d | e | f | g | ||
32A | 3 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | ||
4 | 170 | 141 | 32.5 | 93.3 | 51 | 25 | 62.2 | |||
5 | 177 | 148 | 32.5 | 101 | 56.5 | 30.3 | 68.7 | |||
Conductor cross-sectional area (mm²) Min To Max 4-6 |
