| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 522 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Connector | Ampere & Voltage: | 32A 230V |
|---|---|---|---|
| Earth Position: | 6h | Color: | Blue |
| Waterproof Rating: | IP44 Waterproofing | Weight: | 323G |
| Highlight: | industrial type socket,low voltage plugs and sockets |
||

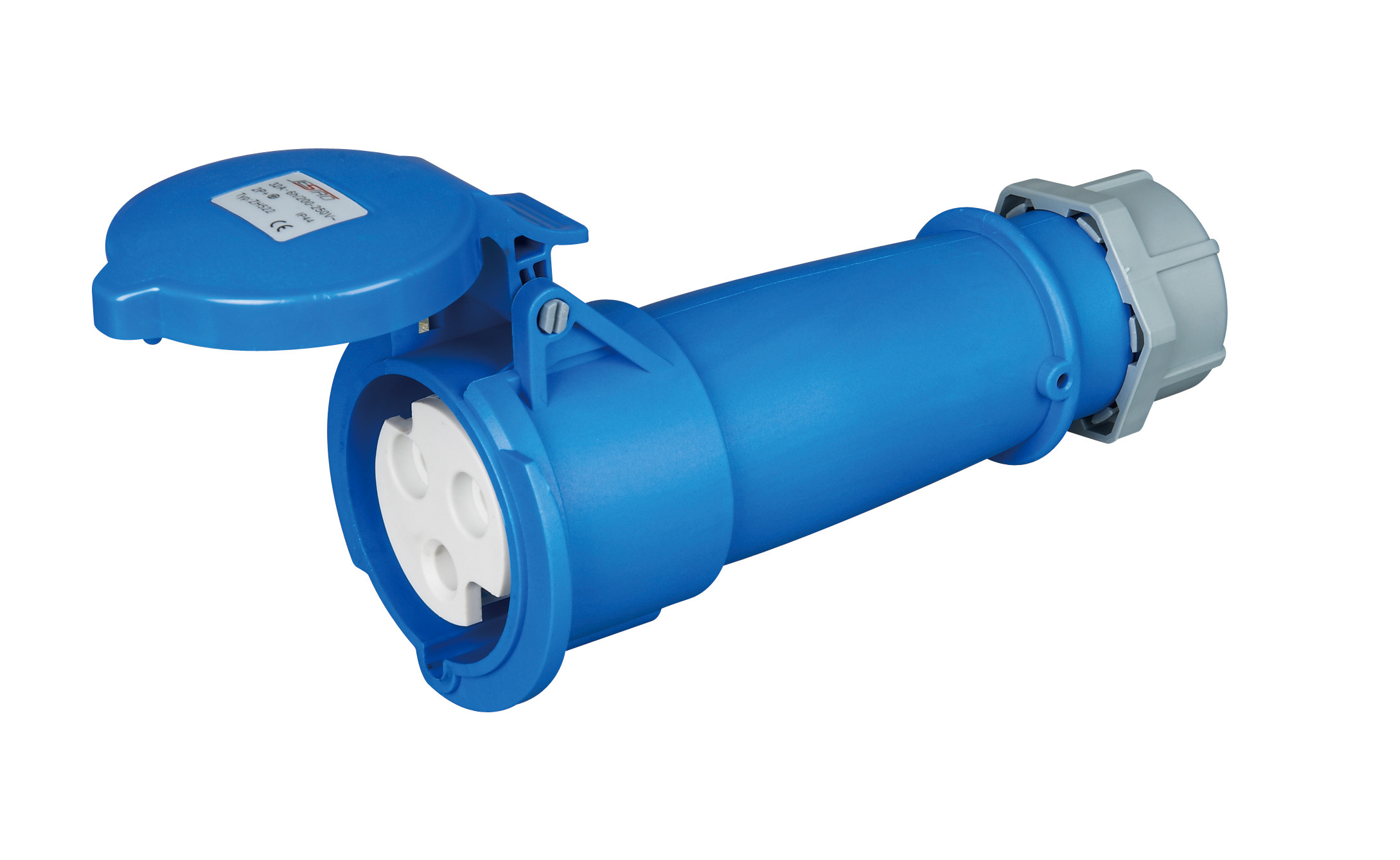

3P32A IP44 Rainproof Industrial Connector with Blue Cover Industrial Socket Outlet part no. 522
Main features:
Easy & Safe
IP44 (splash-proof) protection degree
Range from 16 A to 32 A
Contact parts made of brass for reliable connection
The housing is made of standard PA plastic material
Flexible membrane and metric threaded M20 / M25 for top cable entry
Rear knock-out cable entry
Tough & Safe
Designed for tough environments
IP44 (splash-proof) or IP67 (watertight) protection degree
Range from 16 A to 125 A
Robust enclosure made of PBT plastic material which withstands heavy-duty usage and chemicals
The 63A splashproof products have M32 top cable entry and a rear knock-out cable entry. The watertight series have cable entry on top 25 - 50mm
External screws in stainless steel
Calibrated contact parts in clear brass for reliable connection.
Part no. 522
Technique Parameter:
| Current | Poles |
110 V50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 521 | 522 | 523 | 2196 | 2674 | 10 | 323 | |
| 4 | 524 | 525 | 526 | 527 | 528 | 529 | 10 | 346 | |
| 5 | 530 | 531 | 6 | 2027 | 2245 | 2493 | 10 | 381 |
| Current | Poles | a | b | c | d | e | f | g | |
| 32A | 3 | 200 | 106.5 | 64.2 | 64.2 | 101.8 | 37 | 71.6 | |
| 4 | 200 | 106.5 | 64.2 | 64.2 | 101.8 | 37 | 71.6 | ||
| 5 | 200 | 108.7 | 62.7 | 70.8 | 111 | 37 | 79.5 | ||
| Conductor cross-sectional area (mm²) Min To Max 4-6 | |||||||||
