| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1502 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Connector | Ampere & Voltage: | 32A 230V |
|---|---|---|---|
| Earth Position: | 6h | Pins: | 3P |
| Waterproof Rating: | IP67 | Weight: | 284g |
| Highlight: | low voltage plugs and sockets,industrial power socket outlet |
||

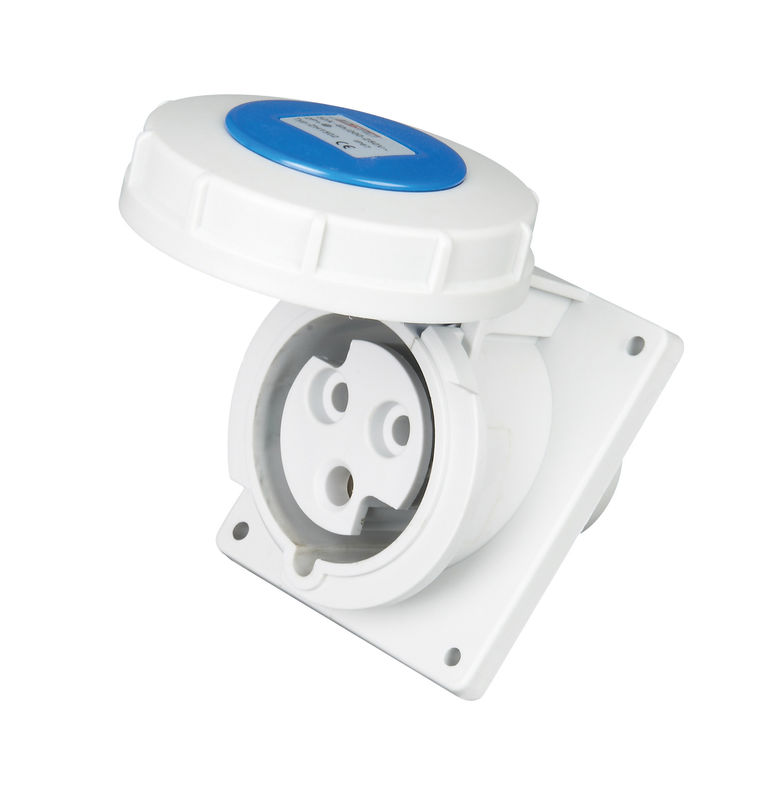

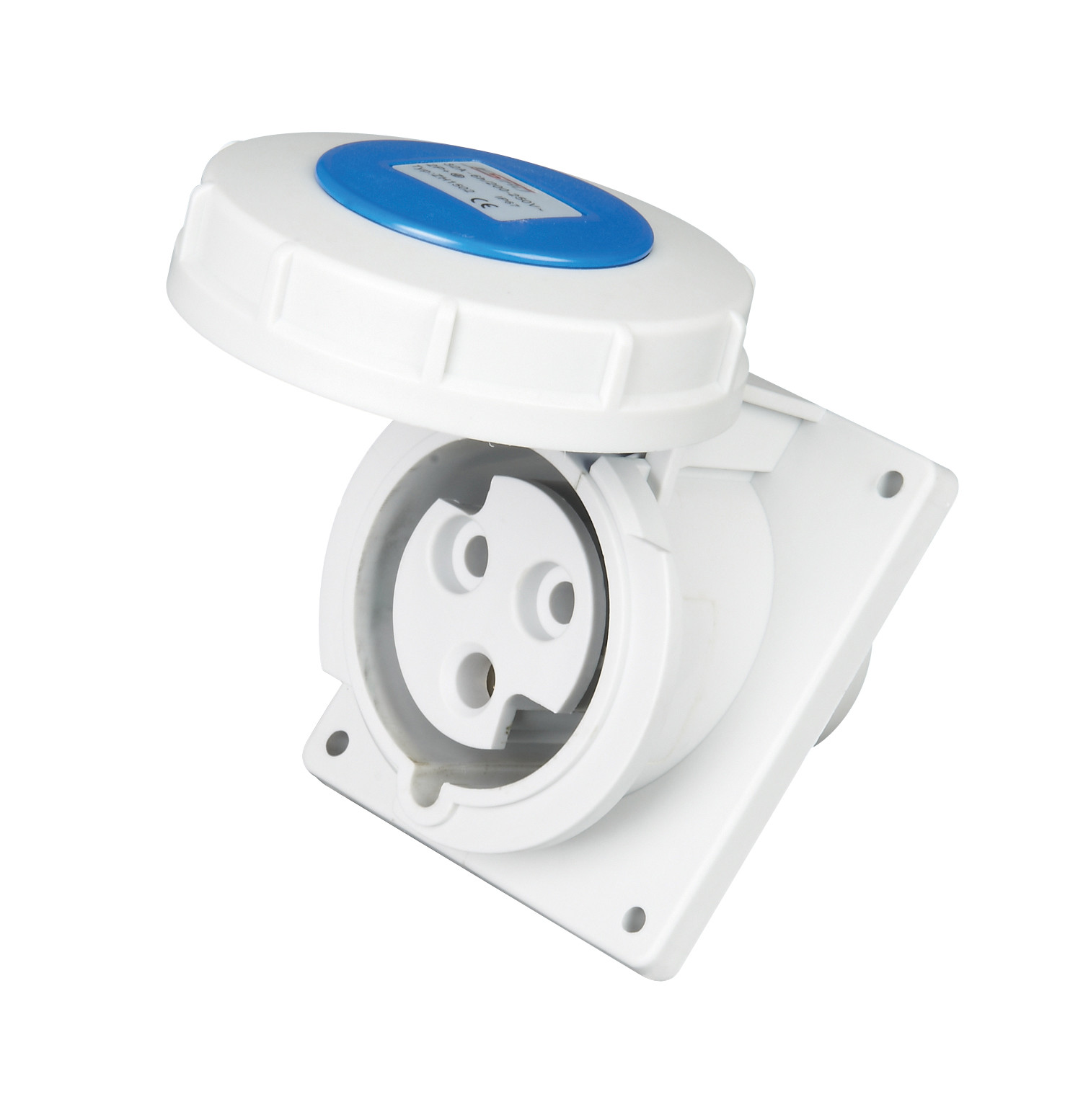

3P32A IP67 Weather-protected Wall Mounted Bevel Receptacles with Cover Industrial Socket Outlet part no. 1502
Safe, reliable, durable.
HYPER industrial socket outlets for panel mounting are high quality products for reliable and safe use in various environments. All approved according to IEC 60 309-1, -2.
Main benefits:
High quality for perfect performance
Easy & Safe range: clear terminal marking, easy installation
Tough & Safe range: clear terminal marking, stainless steel external screws, clear brass pins
Main features:
Range from 16 A to 125 A
IP44 Splashproof or IP67 Watertight
The housing is made of PA plastic material (Easy & Safe) or thermoplastic PBT material (Tough & Safe)
Minimized flange, straight. Type: R
Unified flange, straight. Type: RU
Minimized flange, angled. Type: RAM
Unified flange, angled. Type: RU
Part no. 1502
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 1501 | 1502 | 1503 | 10 | 284 | ||||
| 4 | 1504 | 1505 | 1506 | 2223 | 1507 | 1567 | 1568 | 10 | 303 | |
| 5 | 1489 | 1490 | 1551 | 10 | 337 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l1 | α | |
| 32A | 3 | 100 | 92 | 64 | 85 | 77 | 5.3 | 8 | 2 | 109 | 103 | 51 | 70 | 82 | 20° | |
| 4 | 100 | 92 | 64 | 85 | 77 | 5.3 | 8 | 2 | 109 | 103 | 51 | 70 | 82 | 20° | ||
| 5 | 100 | 92 | 66 | 85 | 77 | 5.3 | 8 | 2 | 113 | 110 | 52 | 73 | 85 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | ||||||||||||||||
