| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 3665 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Wall Mounted Industrial Plug | Material: | Hard Plastic PA |
|---|---|---|---|
| Poles & Current: | 3P 125amps | Voltage: | 230Volts |
| Frequency: | 50-60Hz | Color: | Blue |
| Highlight: | three phase plugs and sockets,industrial 3 phase plug and socket |
||

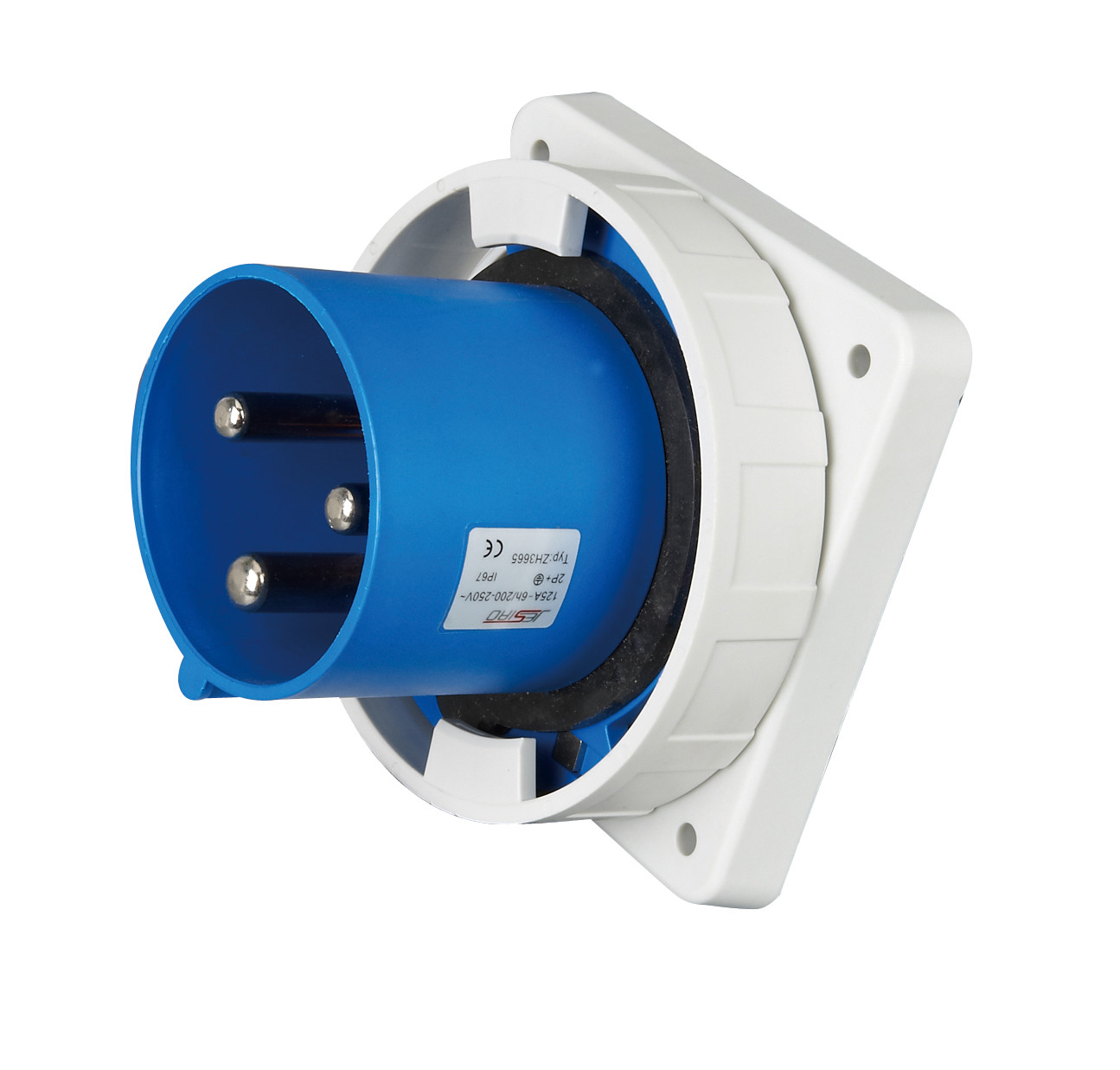

3P 125A IP67 Weather Resistant Panel Mounted Receptacles Third Generation Industrial Sockets part no. 3665
Description:
the most common range of heavy commercial and industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEEform or simply CEE plugs, or as "Commando connectors" (after the MK Commando brand name for these connectors).
Part no. 3665
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3665 | 5 | 890 | |||||
| 4 | 3413 | 3583 | 3600 | 5 | 1005 | ||||
| 5 | 1983 | 5 | 1130 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | s | ||||
| 125A | 3 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | ||||
| 4 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | |||||
| 5 | 130 | 130 | 112 | 104 | 104 | 6.5 | 18 | 2 | 95 | 132 | |||||
| Conductor cross-sectional area(mm²)Min To Max 25-35 | |||||||||||||||
