Name: | Straight Receptacle | Poles: | 5P |
---|---|---|---|
Current & Voltage: | 63 Amps & 400 Volts | Frequency: | 50-60Hz |
Protection Degree: | IP67 Waterproof | Material: | PA |
Highlight: | industrial 3 phase plug and socket,industrial socket plug |

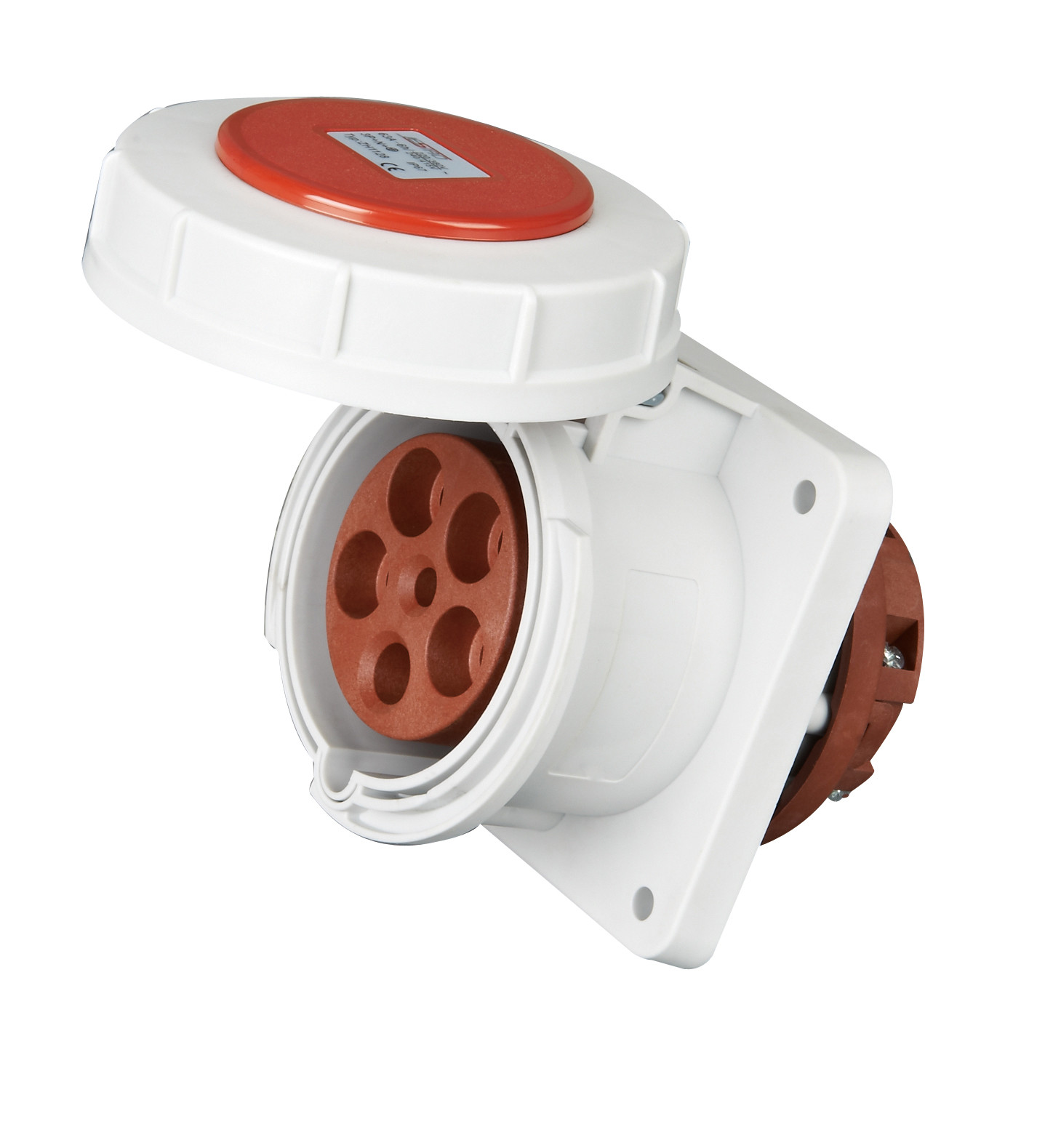

5P 63Amps IP67 Weather Resistant Panel Mounted Receptacle with Cover Industrial Socket Straight part no. 1128
Features:
1. PC plugs, sockets and couplings are constructed for extreme operating conditions.
They are of easy installation, long life and high reliability. They are widely used since many years ago in the
machine industry, crane industry, construction industry, trains and cars.
2. The material has extremely good insulation ability and it is unbreakable, wearable long-time durable up to
+120°C, resistant against oil, gasoline and salt water, almost non-aging, proof and splash-proof.
3. All units not only fit with the same system but also are fully compatible with units Of the same system of other manufacturers, through groove and tongue, joint for same polarity
Part no. 1128
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400- 440V |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
63A | 3 | 1263 | 1264 | 1265 | 5 | 560 | ||||
4 | 1122 | 1123 | 1124 | 1125 | 5 | 600 | ||||
5 | 1127 | 1127 | 1128 | 5 | 665 |
Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | |
63A | 3 | 107 | 100 | 84 | 85 | 77 | 6.5 | 12 | 2 | 113 | 118 | 55 | 88 | |
4 | 107 | 100 | 84 | 85 | 77 | 6.5 | 12 | 2 | 113 | 118 | 55 | 88 | ||
5 | 107 | 100 | 84 | 85 | 77 | 6.5 | 12 | 2 | 113 | 118 | 55 | 88 | ||
Conductor cross-sectional area(mm²)Min To Max 10-16
|
