| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 3658 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Pins: | 5 Pins |
|---|---|---|---|
| Current & Voltage: | 63 Amps & 400 Volts | Protection Grade: | IP67 Waterproof |
| Earth Position: | 6H | Type: | Panel Mounted |
| High Light: | three phase plugs and sockets,industrial 3 phase plug and socket |
||

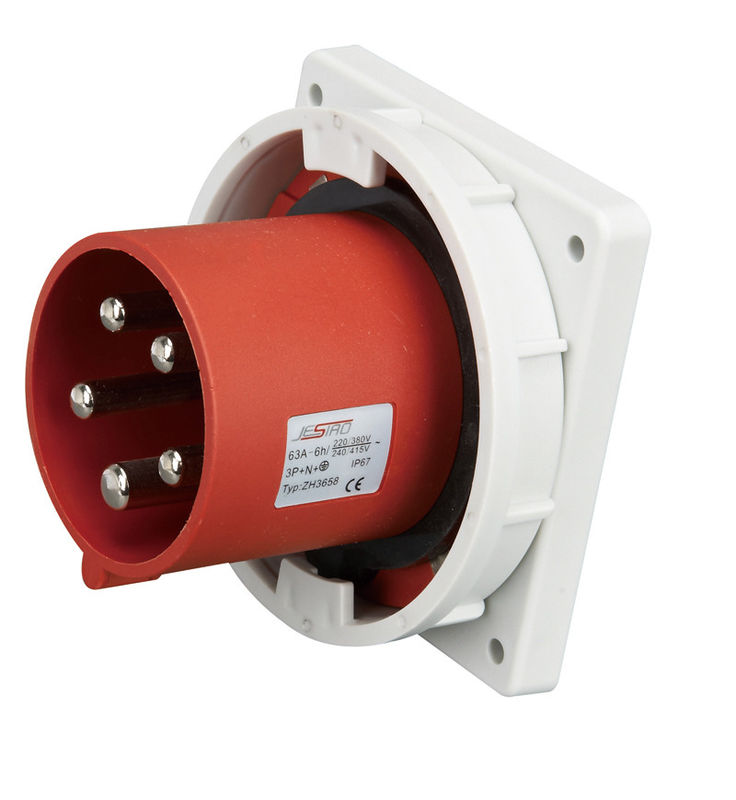

5P 63Amps IP67 Waterproof Panel Mount Red Inlet 3rd Generation Industrial Plug Straight part no. 3658
Features:
Industrial Plugs are the solution for products in industrial environments with high demands on safety, durability, reliability and cost saving for the end user.
Part no. 3658
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 835 | 836 | 5 | 475 | ||||
| 4 | 3740 | 3656 | 3657 | 5 | 558 | ||||
| 5 | 3658 | 5 | 591 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | s | ||||
| 63A | 3 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | ||||
| 4 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | |||||
| 5 | 110 | 106 | 86 | 90 | 90 | 5.5 | 11 | 2 | 73 | 113 | |||||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||||
