Panel Mounted 3 Phase Industrial Socket Strong PA Plastic Material

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 1506
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Material: PA Plastic Poles: 4P
Voltage & Current: 400Volt 32Amp Protection Grade: IP44 Rain Resistant
Hertz: 50-60 Hz Type: Inclination
Highlight:

three phase plugs and sockets

,

industrial 3 phase plug and socket


Product Description

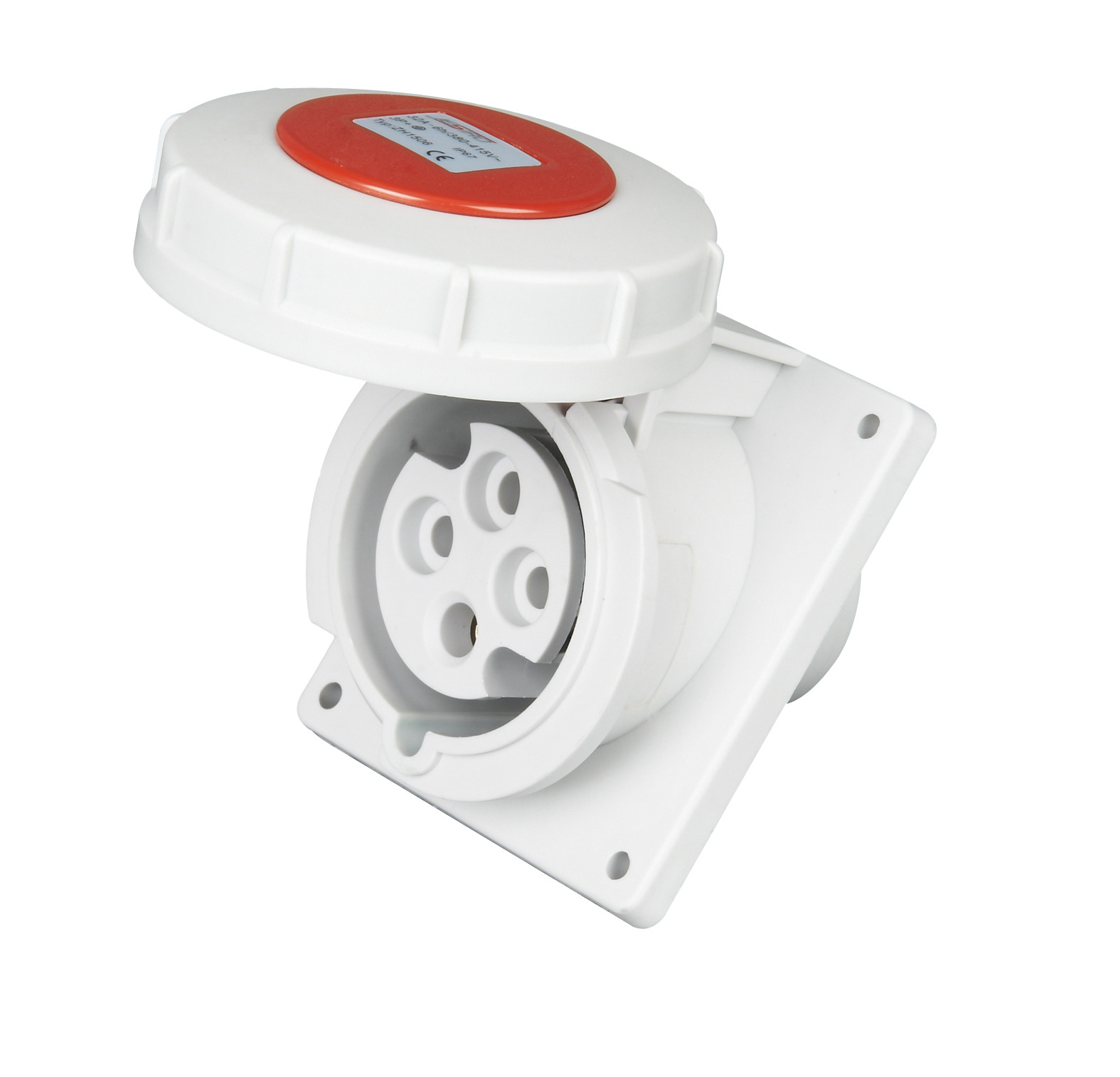

4P 32A IP44 Panel Mounted Red Industrial Receptacle with Cover Inclination 3 phase Industrial Socket part no. 1506



Description:


The outstanding mechanical characteristics of IEC309 Series plugs and sockets and their ability to withstand weathering and chemicals make them safe and reliable even in the most severe environmental conditions.


Part no. 1506



Technique Parameter:



Current Poles 110V
50a.60Hz
230V
50a.60Hz
400V
50a.60Hz
400-
440V
500V
50a.60Hz
>50-500V
100-300Hz
>50-500V
a.300-500Hz
Package Unit Weight

3P 4P 5P

4h 4h 4h

3P 4P 5P

6h 9h 9h

3P 4P 5P

9h 6h 6h

4P

3h

3P 4P 5P

7h 7h 7h

3P 4P 5P

10h 10h 10h

3P 4P 5P

2h 2h 2h

PCS/BOX G/PC
32A 3 1501 1502 1503         10 284
4 1504 1505 1506 2223 1507 1567 1568 10 303
5 1489 1490 1551         10 337

Current Poles a b c d e f g. g.1 h i k l l1 α
32A 3 100 92 64 85 77 5.3 8 2 109 103 51 70 82 20°
4 100 92 64 85 77 5.3 8 2 109 103 51 70 82 20°
5 100 92 66 85 77 5.3 8 2 113 110 52 73 85 20°
Conductor cross-sectional area(mm²)Min To Max 4-6
