| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1206 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Socket | Poles & Current: | 4P 32amps |
|---|---|---|---|
| Voltage: | 400volts | Protection Grade: | IP67 Waterproof |
| Frequency: | 50HZ | Connection Technology: | Screwless - SafeCONTACT |
| High Light: | industrial power plugs sockets,waterproof plug and socket |
||

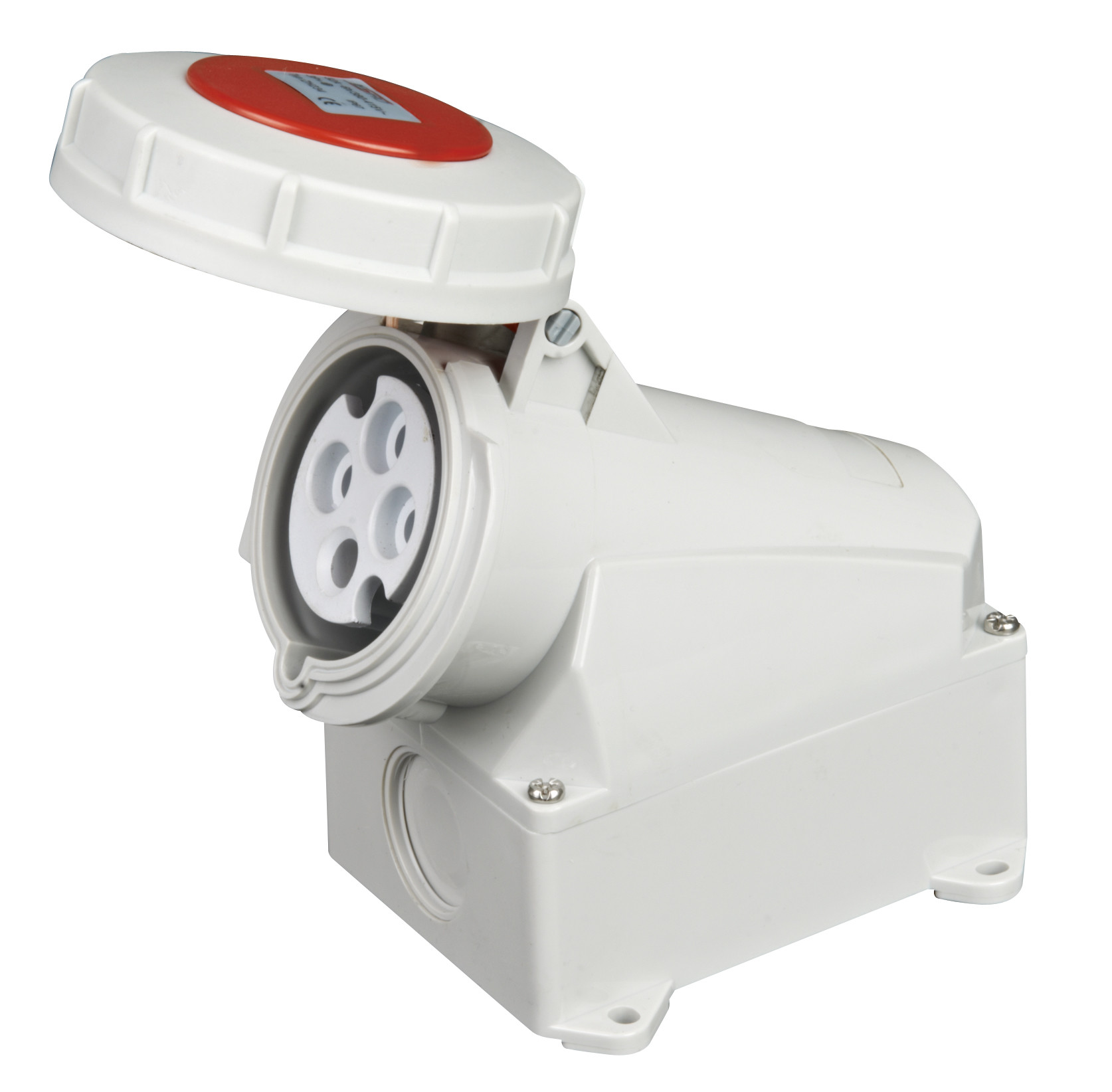

4P 32A IP67 Weatherproof Wall Mounted Receptacle with Red Cover Industrial Sockets Inclination part no. 1206
Description:
IP67 testing proofs that HYPER Industrial Plugs and Sockets products are perfect in food and beverage applications
For food and beverage applications with high demands on cleaning it can be hard to find plugs and sockets that can withstand both the high pressure, high temperature spray downs and the chemical detergents used to keep the environment as clean as it needs to be. Well, some of our long term customers know the solution: Our toughest products are well proven in these kind of environments.
Part no. 1206
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 32A | 3 | 1201 | 1202 | 1203 | 10 | 374 | ||||
| 4 | 1204 | 1205 | 1206 | 2644 | 1207 | 1214 | 1215 | 10 | 393 | |
| 5 | 1208 | 1209 | 1210 | 10 | 451 |
| Current | Poles | a | b | c | d | e | e1 | f | g. | h | M | m* | |
| 32A | 3 | 120 | 112 | 143 | 90.2 | 79 | 98.5 | 5.5 | 5 | 160 | 32 | can use 1PC M32 CABLE GLAND |
|
| 4 | 120 | 112 | 143 | 90.2 | 79 | 98.5 | 5.5 | 5 | 160 | 32 | |||
| 5 | 120 | 112 | 150 | 90.2 | 79 | 98.5 | 5.5 | 5 | 160 | 32 | |||
| Conductor cross-sectional area(mm²)Min To Max 4-6 | |||||||||||||
Product Dimension:
