| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1982 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Voltage & Current: | 400Volts 63Amps |
|---|---|---|---|
| Poles: | 4 Pins | Protection Grade: | IP44 Rainproof |
| Contact: | Standard | Frequency: | 50-60Hz |
| Highlight: | industrial power plugs sockets,waterproof plug and socket |
||

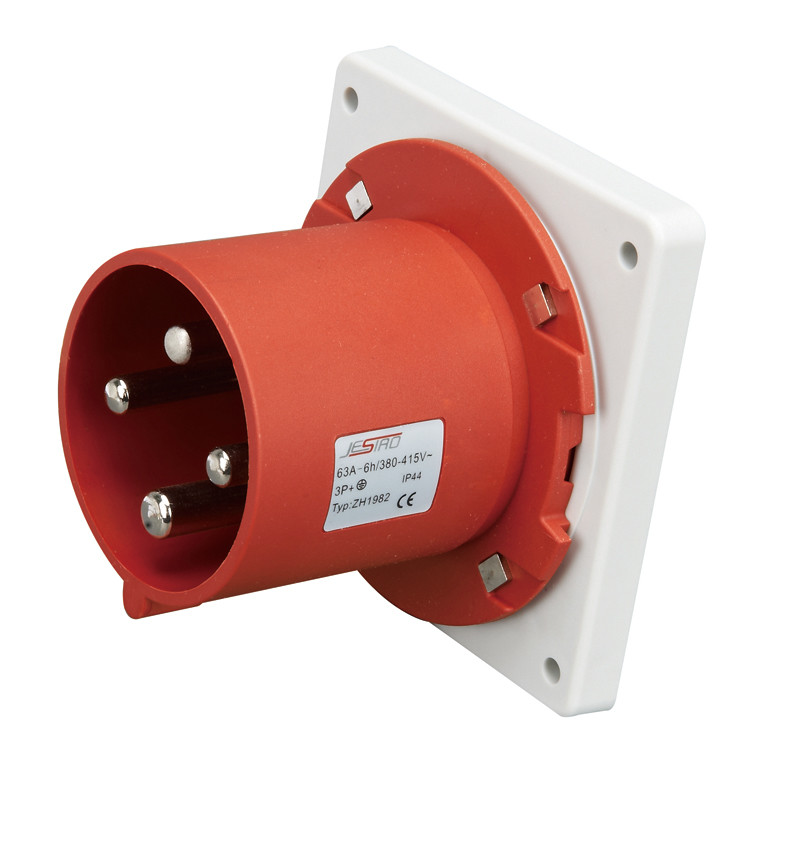

4P 63A IP44 Rain Resistant Panel Mounted Red Inlet Straight 3rd Generation Industrial Plug part no. 1982
Description:
The plastic material and robust design, which we use for the housings, is probably the best material used for these kind of products when it comes to chemical resistance. It also shows a remarkable combination of valuable properties, such as flammability rating, resistance to UV and humidity and resistance to impact.
Part no. 1982
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 822 | 1981 | 5 | 365 | ||||
| 4 | 1984 | 1982 | 824 | 5 | 481 | ||||
| 5 | 1688 | 5 | 533 |
| Current | Poles | a | b | c | d | e | f | g | g.1 | l | |||||
| 63A | 3 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | |||||
| 4 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | ||||||
| 5 | 110 | 106 | 85 | 90 | 90 | 5.5 | 12 | 2 | 86 | ||||||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | |||||||||||||||
Product Dimension:
