Name: | Industrial Receptacle | Poles: | 4P |
---|---|---|---|
Current & Voltage: | 63 Amps 400 Volts | Earth Position: | 6h |
Connection Technology: | Screwless - SafeCONTACT | Protection Type: | IP44 Rain-protected |
Highlight: | industrial power plugs sockets,waterproof plug and socket cable connector |

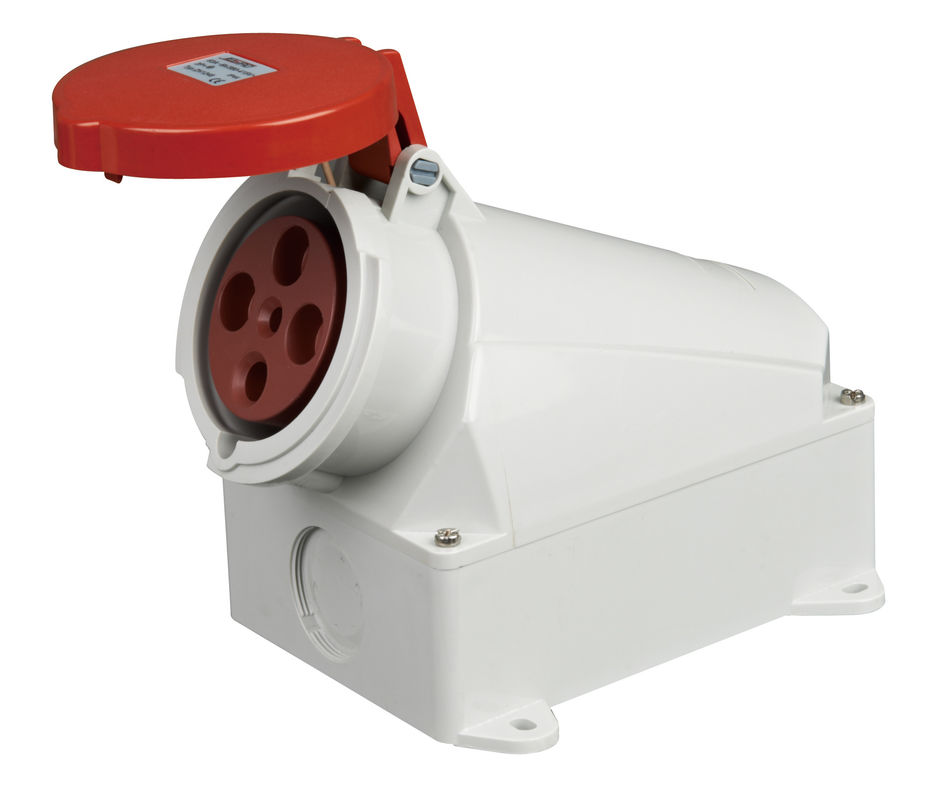

4P 63A IP44 Rainproof Wall Mounted Receptacle with Red Cover Industrial Socket Inclination part no. 1141
Description:
The high quality, along with a robust design results in a range of products that are ideal for heavy-duty applications. Customers also appreciate their functionality, reliability and safety.
Part no. 1141
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
63A | 3 | 1136 | 1137 | 1138 | 5 | 857 | |||
4 | 1139 | 1140 | 1141 | 1142 | 5 | 901 | |||
5 | 1143 | 1144 | 1145 | 5 | 925 |
Current | Poles | a | b | c | d | e | f | g. | h | M | m* | |
63A | 3 | 171 | 157 | 165 | 133 | 108 | 6 | 5 | 216 | 40 | can use 1PC M40 CABLE GLAND |
|
4 | 171 | 157 | 165 | 133 | 108 | 6 | 5 | 216 | 40 | |||
5 | 171 | 157 | 165 | 133 | 108 | 6 | 5 | 216 | 40 | |||
Conductor cross-sectional area(mm²)Min To Max 10-16 |
Product Dimension:
