| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 205 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Receptacle | Poles: | 4 Poles |
|---|---|---|---|
| Rated Current: | 63 Amps | Rated Voltage: | 400 Volts |
| Earthing Position: | 6 Hour | IP Rating: | IP67 Weatherproof |
| Highlight: | industrial power plugs sockets,waterproof plug and socket cable connector |
||

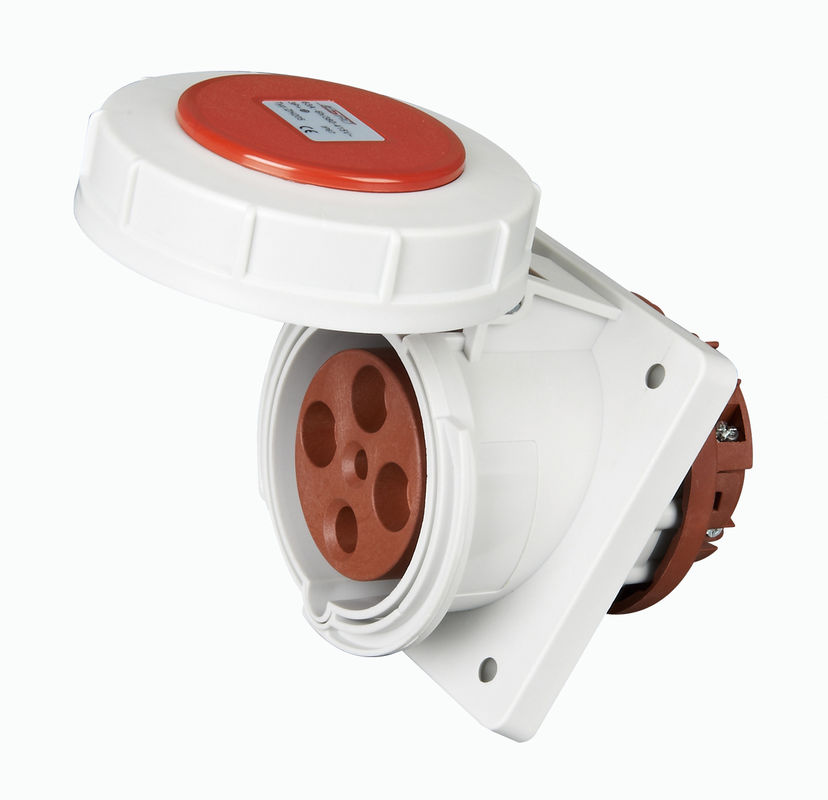

4P 63A IP67 Water Resistant Panel Mounted Receptacle Red 3rd Generation Industrial Socket Slanting part no. 205
Description:
The 3rd General Industrial Plugs and Sockets meet the highest requirements for safety, quality, reliability and functionality. Pin and sleeve configuration is according to IEC standard. Products are designed especially for entertainment applications, such as concerts, cinemas, radio and television studios, and open-air events.
Part no. 205
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 2179 | 2180 | 2181 | 5 | 582 | ||||
| 4 | 203 | 204 | 205 | 206 | 5 | 621 | ||||
| 5 | 207 | 208 | 209 | 3507 | 5 | 689 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | i | k | l | l 1 | α | |
| 63A | 3 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 73 | 85 | 20° | |
| 4 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 73 | 85 | 20° | ||
| 5 | 110 | 106 | 85 | 85 | 77 | 6.2 | 12 | 2 | 125 | 117 | 46 | 75 | 86 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 10-16 | ||||||||||||||||
Product Dimension:
