| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1117 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Receptacle | Poles & Current: | 4P 63 Amp |
|---|---|---|---|
| Voltage: | 400 Volt | Earthing Position: | 6h |
| Protection Degree: | IP67 Weather Proof | Connection Technology: | Screwless - SafeCONTACT |
| Highlight: | industrial power plugs sockets,waterproof plug and socket |
||

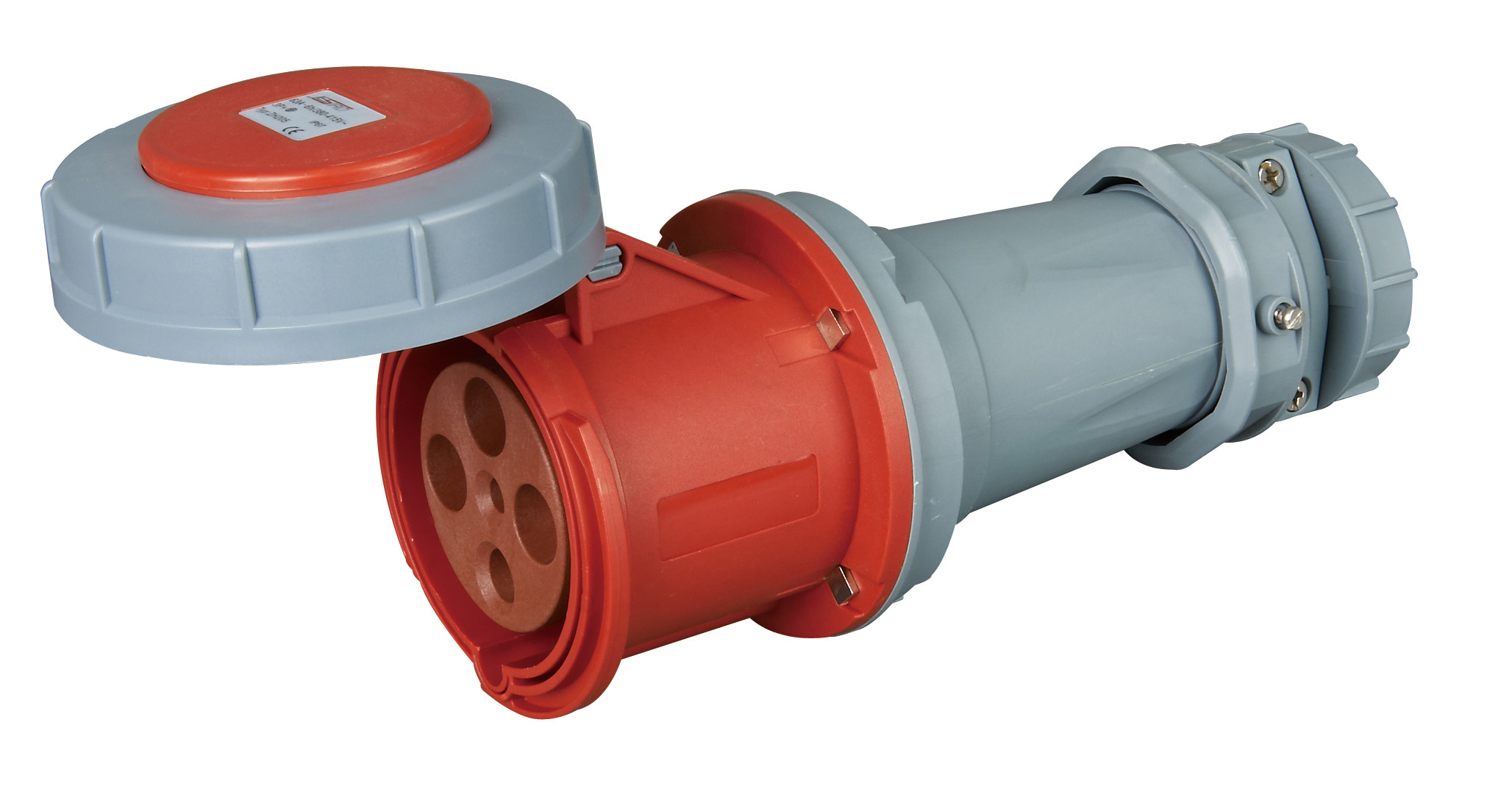

4P 63A IP67 Water Protected Red Connector with Cover Waterproof Plug Socket China Manufacturer part no. 1117
Description:
In times with high focus on productivity screwless terminal connectors are growing in popularity. Actually up sixty percent of the installation time can be saved with screwless terminals.
They supply requested power, they keep things connected.
Part no. 1117
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 63A | 3 | 1573 | 1574 | 1575 | 5 | 801 | ||||
| 4 | 1115 | 1116 | 1117 | 1118 | 5 | 850 | ||||
| 5 | 1119 | 1120 | 1121 | 3352 | 5 | 896 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 63A | 3 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | ||
| 4 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | |||
| 5 | 260 | 104 | 95.8 | 77.4 | 112.5 | 109 | 34 | |||
| Conductor cross-sectional area (mm²) Min To Max 10-16 | ||||||||||
