| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1450 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | Hard Plastic PA | Poles: | 4 Poles |
|---|---|---|---|
| Current And Voltage: | 125A 400V | Connection Technology: | Screwless - SafeCONTACT |
| Water Protection: | IP67 Weather Protected | Weight: | 1425g |
| Highlight: | industrial power plugs sockets,waterproof plug and socket cable connector |
||

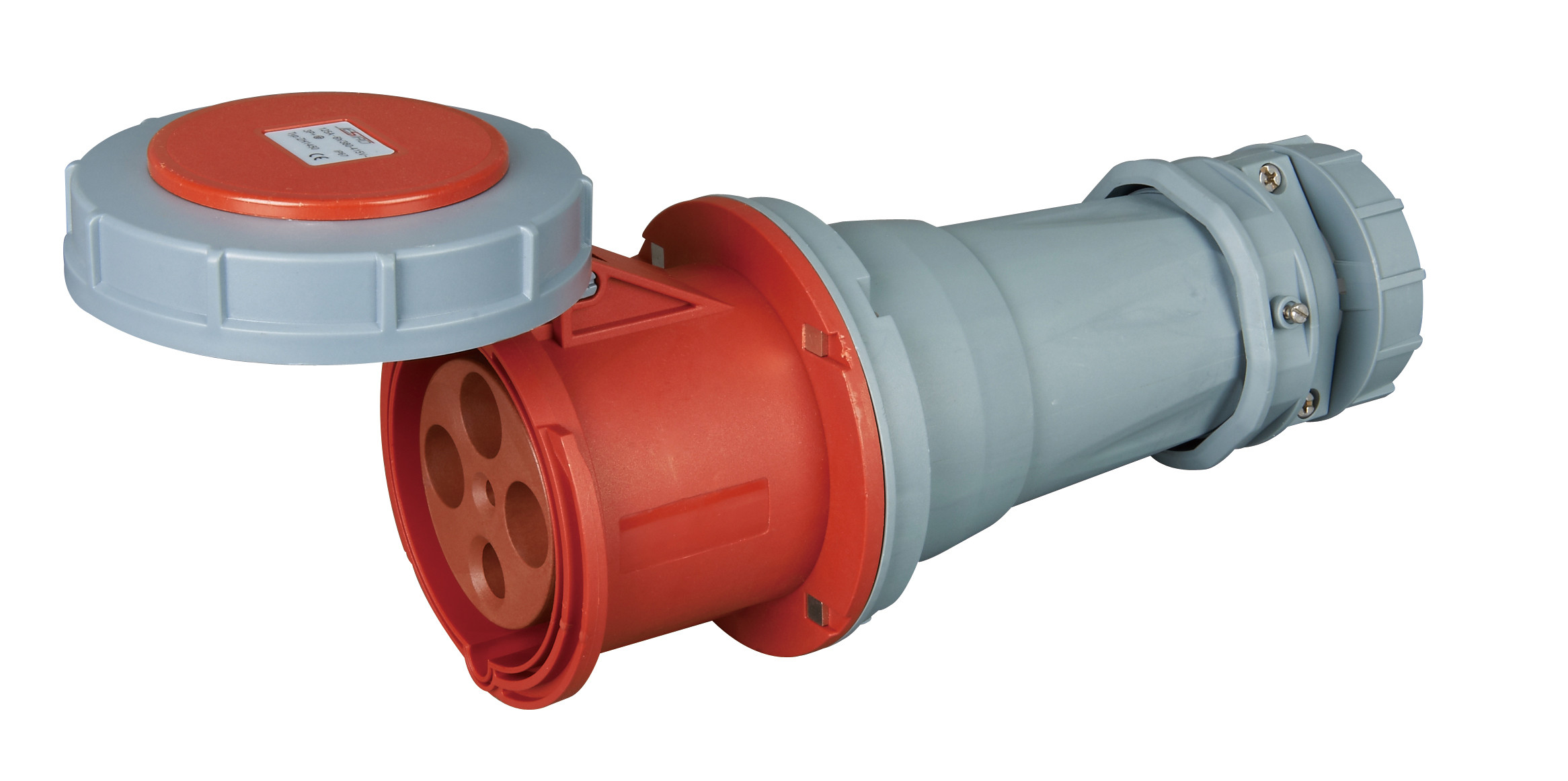

4P 125A IP67 Water Resistance Red Receptacle with Cover 3rd Generation Industrial Socket part no. 1450
Desription:
Socket outlet with builtin switch-disconnectors 16 – 32A. Enclosure in thermoplastic (PBT).
The plug is connected with a vertical movement. (The outlet is in the bottom of the product). 16 – 32A products have two 20mm knock-outs in the top.
Heavy Duty Switched Interlocked Socket Outlets, Vertical
Socket outlet with builtin switch-disconnectors 16 – 125A. Enclosure in thermoplastic (PBT).
Part no. 1450
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3389 | 3390 | 5 | 1334 | |||||
| 4 | 1448 | 1449 | 1450 | 1451 | 5 | 1425 | ||||
| 5 | 1452 | 1453 | 1454 | 3174 | 5 | 1603 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 125A | 3 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | ||
| 4 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | |||
| 5 | 300 | 140 | 100 | 89.5 | 34.5 | 121 | 123 | |||
| Conductor cross-sectional area (mm²) Min To Max 25-35 | ||||||||||
