| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1473 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Material: | PA (Nylon) | Poles: | 5P |
|---|---|---|---|
| Current: | 16 Amps | Voltage: | 400 Volts |
| Hertz: | 50-60 Hz | Protection Grade: | IP44 Rain Resistant |
| Highlight: | waterproof plug and socket,waterproof plug and socket cable connector |
||

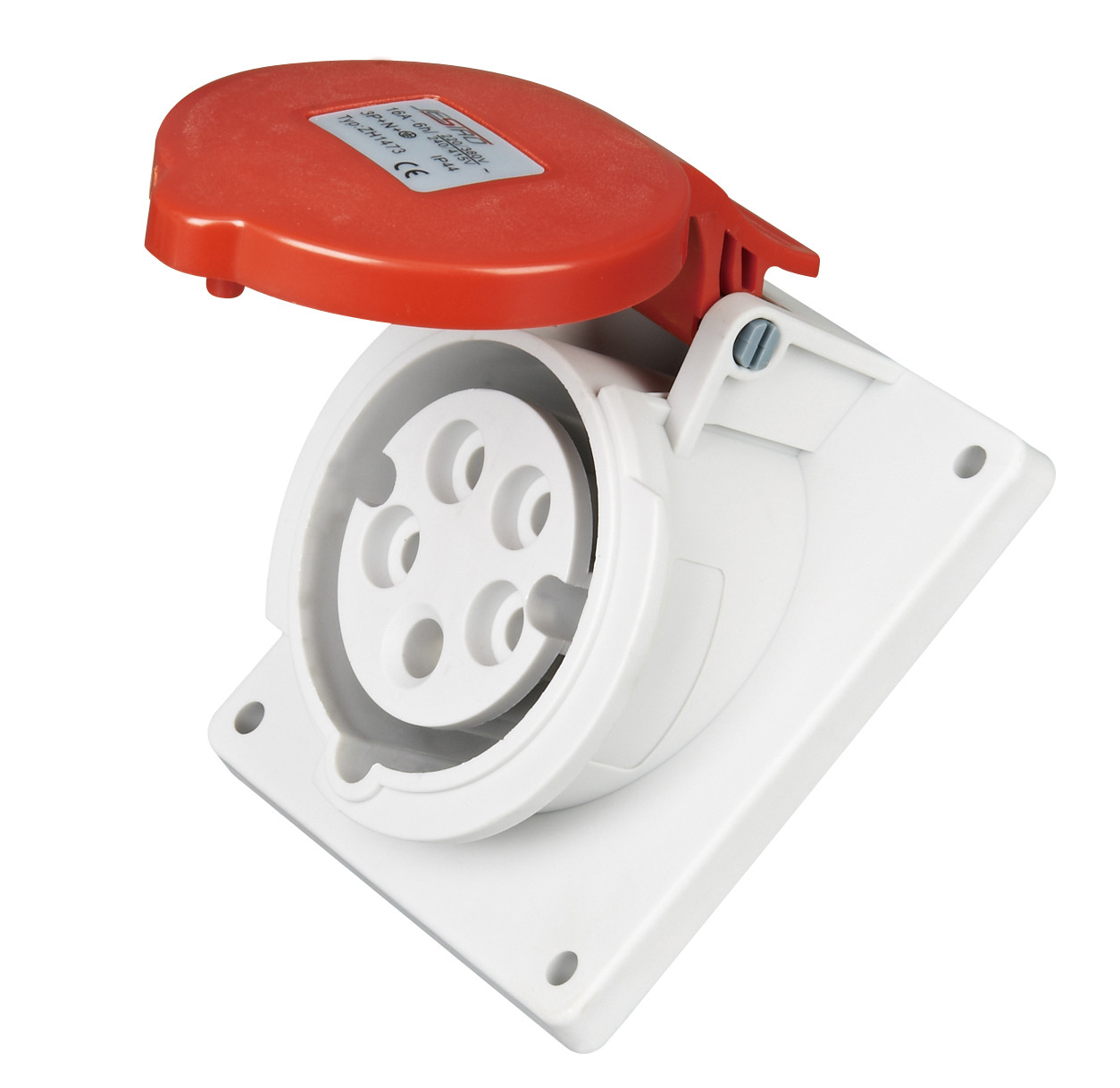

5P 16A IP44 Panel Mounted Receptacle with Red Cover Industrial Socket Inclination Third Generation Socket part no. 1473
Description:
A complete range of IP 44 and IP 67 Industrial plugs, connectors, socket outlets and inlets in a new attractive and functional design. New IP 67 products are perfect for the application when you need to protect contacts from water and dust. Robust design and unique self-cleaning calibrated contacts bring reliability, prevent arcing, reduce downtime and thus lower maintenance costs.
Part no. 1473
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1462 | 1463 | 1464 | 3186 | 3187 | 10 | 130 | |
| 4 | 1465 | 1466 | 1467 | 1468 | 1469 | 1470 | 10 | 185 | |
| 5 | 1471 | 1472 | 1473 | 3188 | 3189 | 3190 | 10 | 185 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | k | l | l1 | α | |
| 16A | 3 | 75.5 | 64 | 52 | 60 | 52 | 5.3 | 7 | 2 | 79 | 41 | 55 | 65 | 20° | |
| 4 | 100 | 92 | 58 | 85 | 77 | 5.3 | 8 | 2 | 105 | 41 | 70 | 80 | 20° | ||
| 5 | 100 | 92 | 58 | 85 | 77 | 5.3 | 8 | 2 | 105 | 41 | 70 | 80 | 20° | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | |||||||||||||||
Product Dimension:
