| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 288 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Description: | Industrial Plug | Pins: | 5pins |
|---|---|---|---|
| Ampere: | 16A | Voltage: | 400V |
| Protection Degree: | IP67 Weatherproof | Earth Position: | 6 H |
| Highlight: | industrial power plugs sockets,waterproof plug and socket cable connector |
||

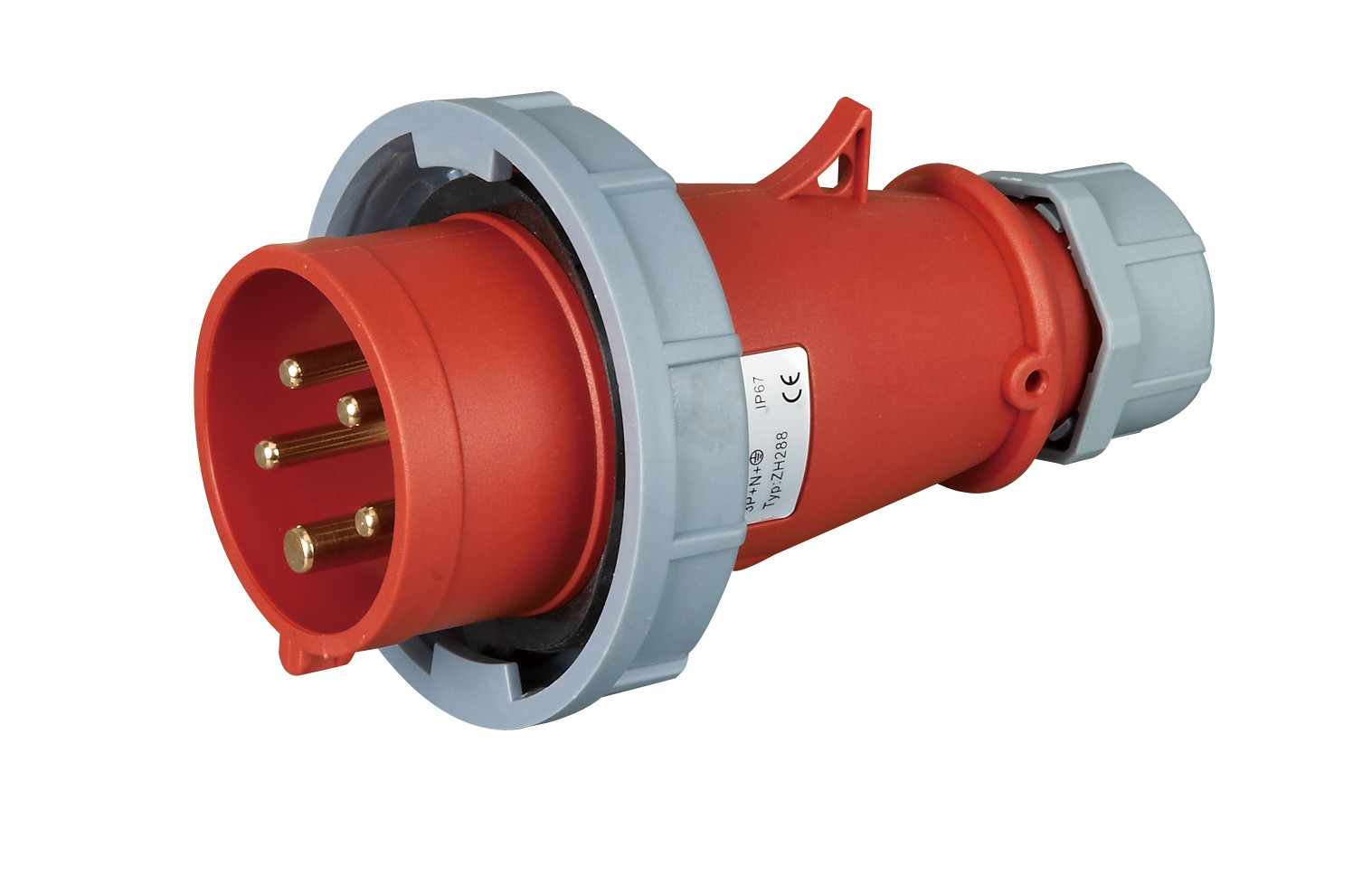

5P 16A IP 67 Water Resistant Red Industrial Plugs 3rd Generation Waterproof Plug Socket part no. 288
Description:
Tough & Safe is the range for applications in environments that have high demands of functionality and safety. The robust housing is made of PBT plastic. The range Tough & Safe is available as watertight (IP67 16 – 125A) and splashproof (IP44 63 A). The devices are equipped with internal and external cable clamps. The 125A devices are equipped with two screws on each terminal.
Part no. 288
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 277 | 278 | 279 | 10 | 158 | ||||
| 4 | 280 | 281 | 282 | 283 | 284 | 285 | 10 | 181 | ||
| 5 | 286 | 287 | 288 | 10 | 215 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 16A | 3 | 138 | 115 | 24.5 | 70.2 | 38.3 | 17.5 | 47 | ||
| 4 | 144 | 120.5 | 25.2 | 78 | 43.8 | 21.5 | 52.2 | |||
| 5 | 144 | 120.5 | 25.2 | 87 | 50.2 | 26.5 | 60 | |||
| Conductor cross-sectional area (mm²) Min To Max 1.5-2.5 | ||||||||||
Product Dimension:
