| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1200 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Description: | Industrial Socket | Pins: | 5P |
|---|---|---|---|
| Ampere & Voltage: | 16Amps 400Volts | Hertz: | 50/60 HZ |
| Contact: | Standard | Protection Type: | IP67 Water Protected |
| Highlight: | industrial power plugs sockets,waterproof plug and socket |
||

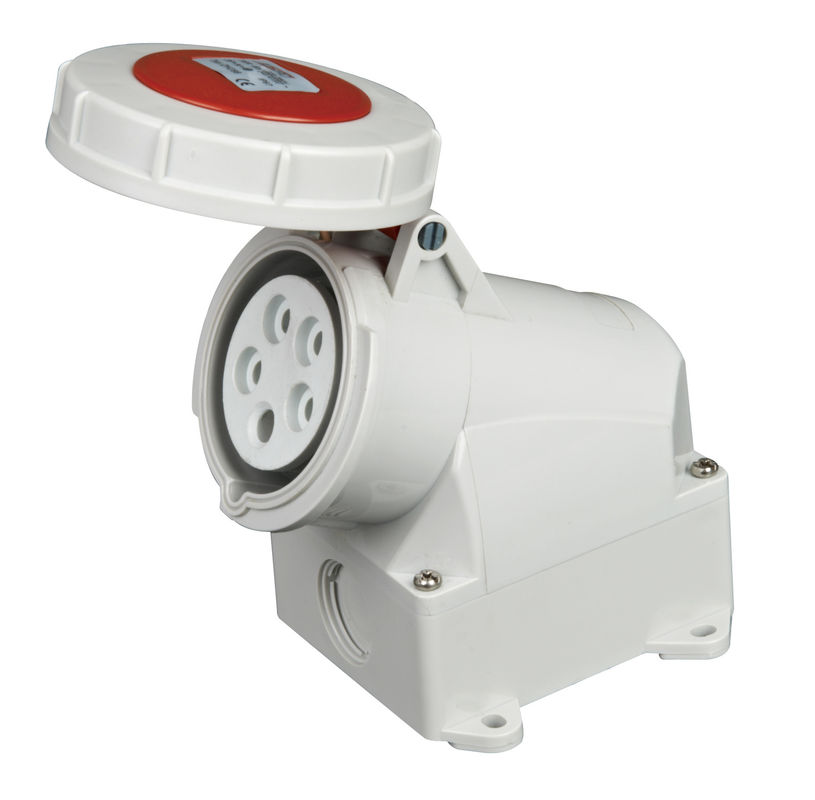

5P 16A IP67 Waterproof Wall Mounted Receptacle Third Generation Industrial Socket Slanting part no. 1200
Features:
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1193 | 1192 | 1211 | 10 | 241 | ||||
| 4 | 1194 | 1195 | 1196 | 1197 | 1212 | 1213 | 10 | 267 | ||
| 5 | 1198 | 1199 | 1200 | 10 | 320 |
| Current | Poles | a | b | c | d | e | e1 | f | g. | h | M | m* | |
| 16A | 3 | 95 | 102 | 115 | 64.2 | 77.5 | 88 | 5.5 | 5 | 128 | 25 | can use 1PC M25 CABLE GLAND |
|
| 4 | 95 | 102 | 124 | 64.2 | 77.5 | 88 | 5.5 | 5 | 128 | 25 | |||
| 5 | 95 | 102 | 129 | 64.2 | 77.5 | 88 | 5.5 | 5 | 132 | 25 | |||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | |||||||||||||
Product Dimension:
