| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1447 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Name: | Industrial Plug | Pins: | 5 Pins |
|---|---|---|---|
| Ampere & Voltage: | 125A & 400V | Frequency: | 50/60 Hz |
| Earth Position: | 6H | Material: | PA (Nylon) |
| High Light: | waterproof plug and socket,waterproof plug and socket cable connector |
||

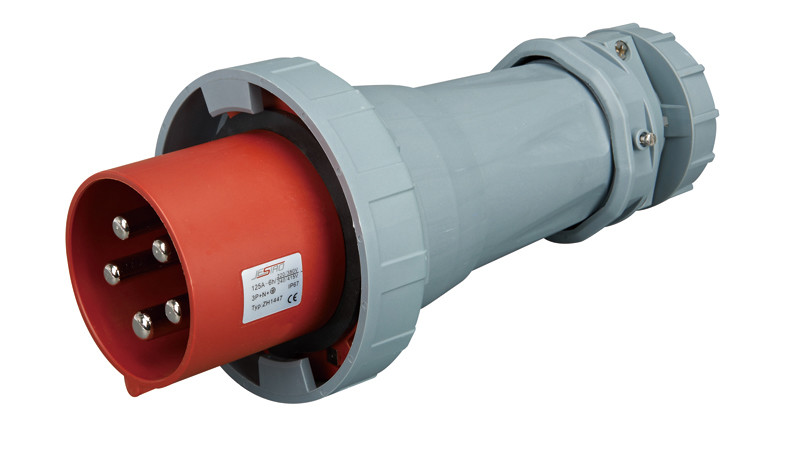

5P 125A IP67 Watertight 3rd Generation Industrial Plug Straight and Red part no. 1447
Description:
Different voltage and frequency combinations are distinguished by the location of the ground pin (or a plastic projection called the minor keyway, for connectors with no ground pin), as shown in the following table. The ground pin can be in one of twelve locations spaced at 30° intervals around the circle on which all the pins lie.
Part no. 1447
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
400-440V | 500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
4P 3h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 125A | 3 | 3399 | 3400 | 5 | 1195 | |||||
| 4 | 1441 | 1442 | 1443 | 1444 | 5 | 1320 | ||||
| 5 | 1445 | 1446 | 1447 | 3173 | 5 | 1421 |
| Current | Poles | a | b | c | d | e | f | g | ||
| 125A | 3 | 286 | 219 | 57 | 81.1 | 131.5 | 83.3 | 42.5 | ||
| 4 | 286 | 219 | 57 | 81.1 | 131.5 | 83.3 | 42.5 | |||
| 5 | 286 | 219 | 57 | 81.1 | 131.5 | 83.3 | 42.5 | |||
| Conductor cross-sectional area (mm²) Min To Max 25-35 | ||||||||||
