Name: | Big Current Industrial Socket | Poles: | 5Poles |
---|---|---|---|
Current: | 250Amps | Voltage: | 400Volts |
Earth Position: | 6H | Protection Type: | IP67 Water Resistant |
Highlight: | industrial power connectors,heavy duty plug sockets |

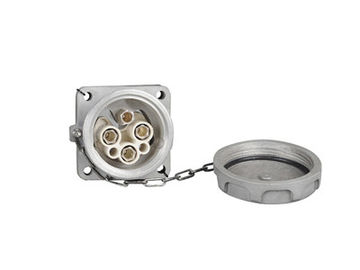

4 Poles 250 Amps IP67 Weather Protected Large Current Receptacle Industrial Socket with Cover part no. 4022
Features:
Socket outlets with builtin switch-disconnectors. Horizontal, veltical, plastic or aluminium enclosure, version with protection.
Part no. 4022
Technique Parameter:
Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | weight |
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
250A | 4 | 4022 | 1 | 1745 | |||||
5 | 4032 | 1 | 1840 |
Current | Poles | a | b | c | d | e | f | g | h | l | |||||
250A | 4 | 127 | 130 | 3 | 13 | 116 | 116 | 91 | 91 | 108 | |||||
5 | 127 | 130 | 3 | 13 | 116 | 116 | 91 | 91 | 108 | ||||||
Conductor cross-sectional area (mm2)Min To Max 70-100 |
Product Dimension:
