Large Current Inclination Wall Mounted Receptacle , IP55 Industrial Power Socket

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: DIN VDE 0623 EN/IEC 60309-2
Model Number: 75236
Minimum Order Quantity: 500pcs
Packaging Details: packed by standard paper carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs / month
Detail Information
Ampere: 200Amps Poles: 5poles
Voltage: 400Volts Frequency: 50-60Hz
Protection Grade: IP55 Waterproof Name: Receptacle With Switched Metal Box
High Light:

industrial electrical sockets and plugs

,

industrial power connectors


Product Description

5P 200A IP55 Water Resistant Large Current Inclination Wall Mounted Receptacle with Switched Metal Box part no. 75236



Description:



  • screw terminals
  • switched
  • mechanical interlock
  • cable entry bushing for cables of up to 65 mm at top and blind flange at bottom
  • enclosure made of sheet steel, painted in RAL 1021
  • seawater resistant products are available on request
  • Part no. 75236
  • For this model, 160A is also available.



Technique Parameter:



Technical information
Ampere 200 A
Poles
5 p
Voltage
400 V
Earth position 6 h
Hertz 50-60 Hz
Connection technology Screw terminals
Contact standard
Protection type
IP 55


Product Dimension:



Large Current Inclination Wall Mounted Receptacle , IP55 Industrial Power Socket 0

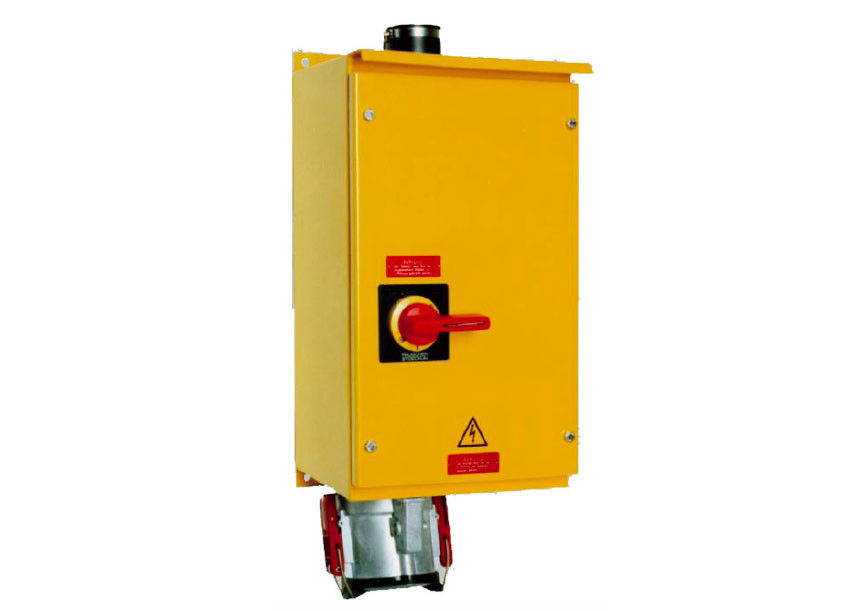

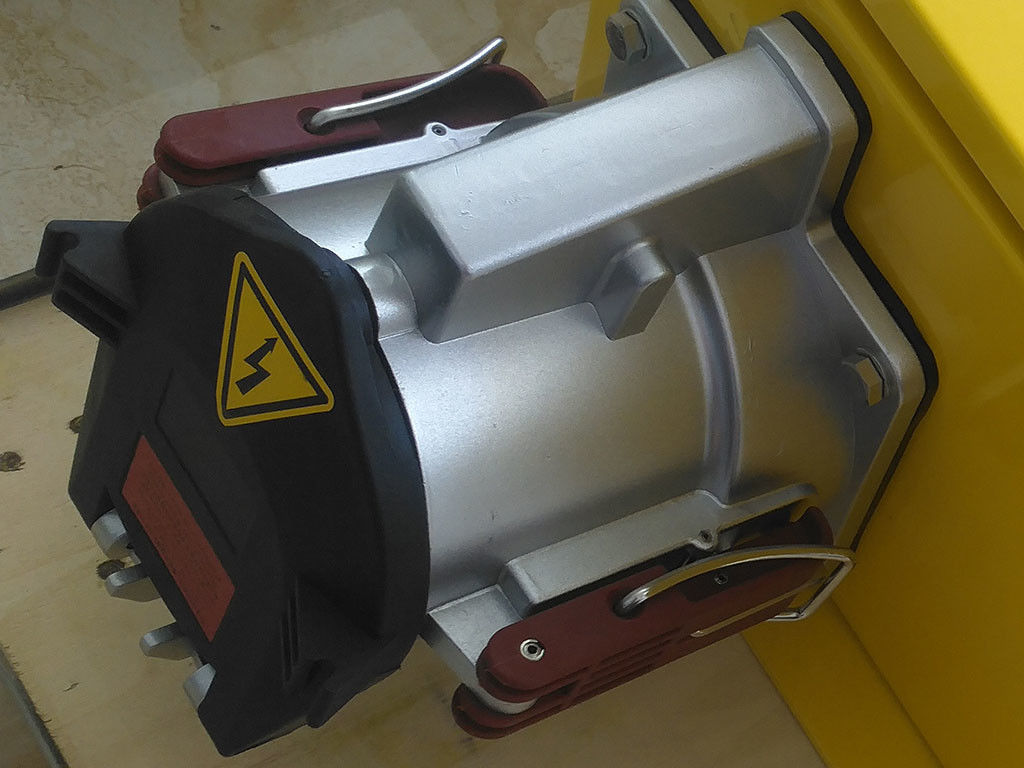

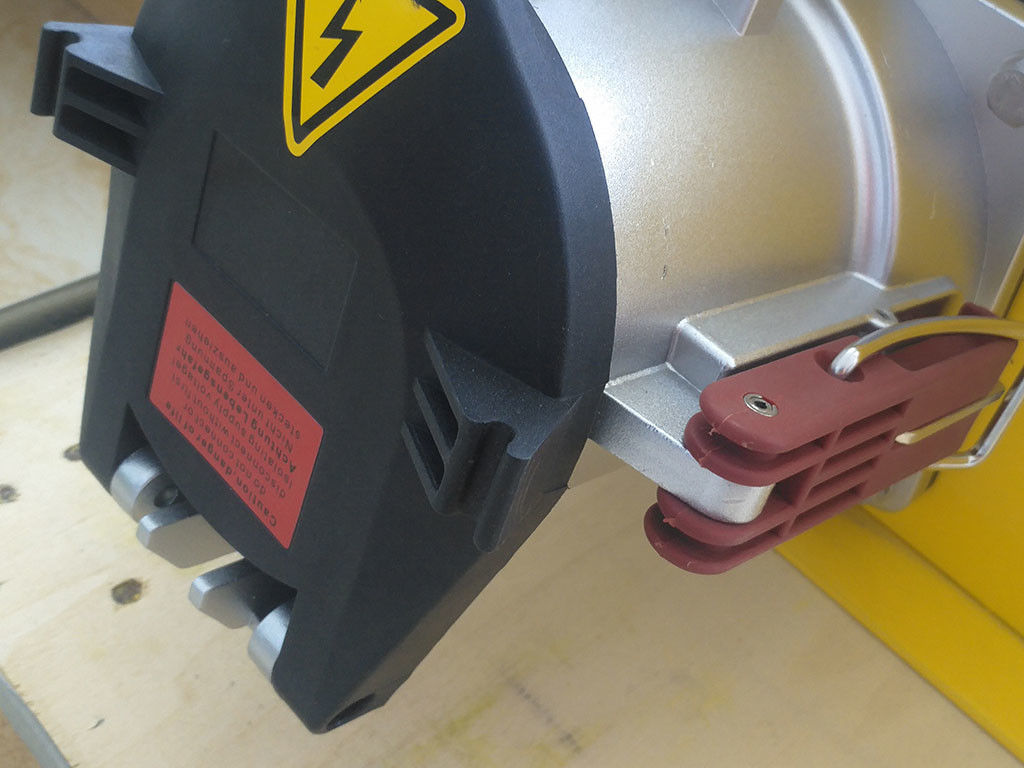

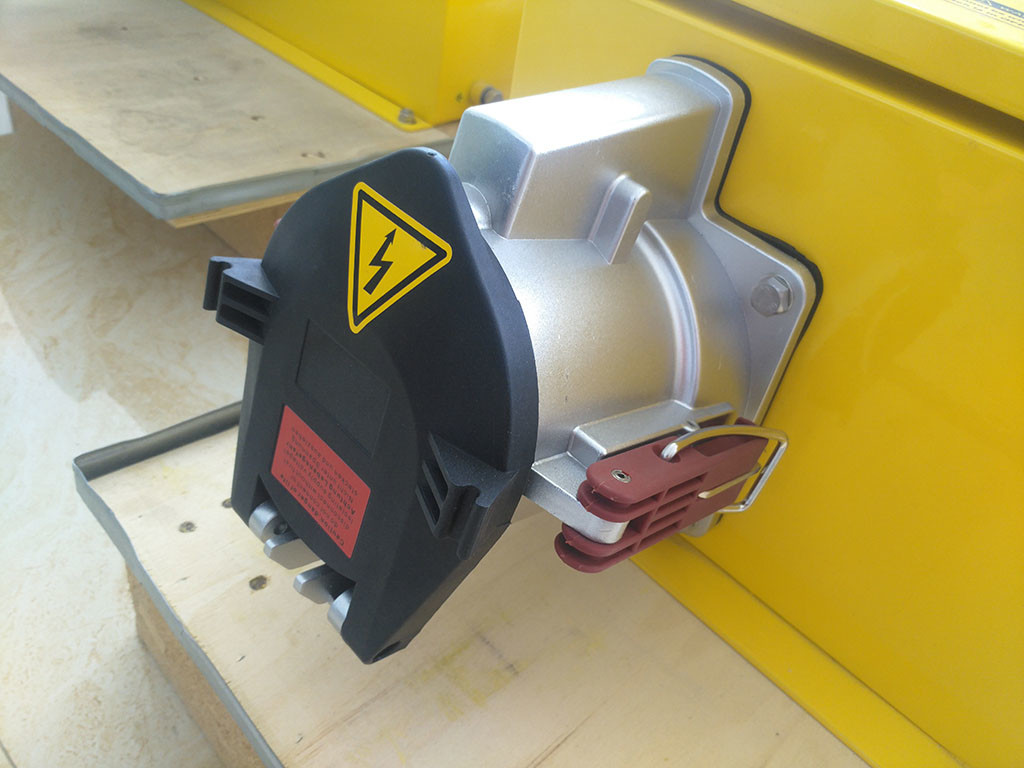

Picture:



Large Current Inclination Wall Mounted Receptacle , IP55 Industrial Power Socket 1
Large Current Inclination Wall Mounted Receptacle , IP55 Industrial Power Socket 2
