IP 67 Electrical Distribution Box 37 * 34 * 33cm Dimension 24 Way Poles

Basic Information

Get Best Price Contact Now

Detail Information

Material:	Polyethylene PE	Poles:	24 Ways
Dimension:	373433cm	Net Weight:	13.5kgs
IP Grade:	IP66 Waterproofing	Color:	Yellow
Highlight:	power spider box , event power distribution

Product Description

24-way IP 67 Water protected Polyethylene Simplified Handling Pagoda Distribution Box with Industrial Plugs and Sockets

Our portable power distribution substations consist of a power line feed, load center with breakers, transformer and outlets.

Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
Locking receptacles provide secure connections that prevent accidental separation
Rainproof for outdoor use
Feed thru feature allows multiple boxes to be placed along one feed

Input	Output	Circuit Breaker
1 * 63A / 415V 5 pins CEE supply plug	2 * 63A / 415V 5 pins IP67 CEE panel mounted Receptacles	1 * 4P 63A 30mA RCD
6 meters 5*10mm2 cable	3 * 32A / 415V 5 pins IP67 CEE panel mounted Receptacles	3 * 3P 32A MCB
	2 * 16A / 415V 5 pins IP67 CEE panel mounted Receptacles	2 * 1P 32A MCB
	2 * 16A / 415V 3 pins IP67 CEE panel mounted Receptacles	2 * 3P 16A MCB

Product Pictures

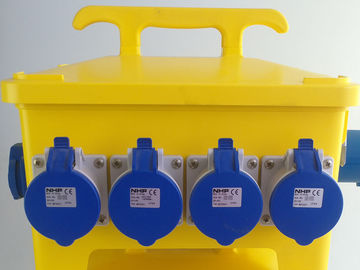

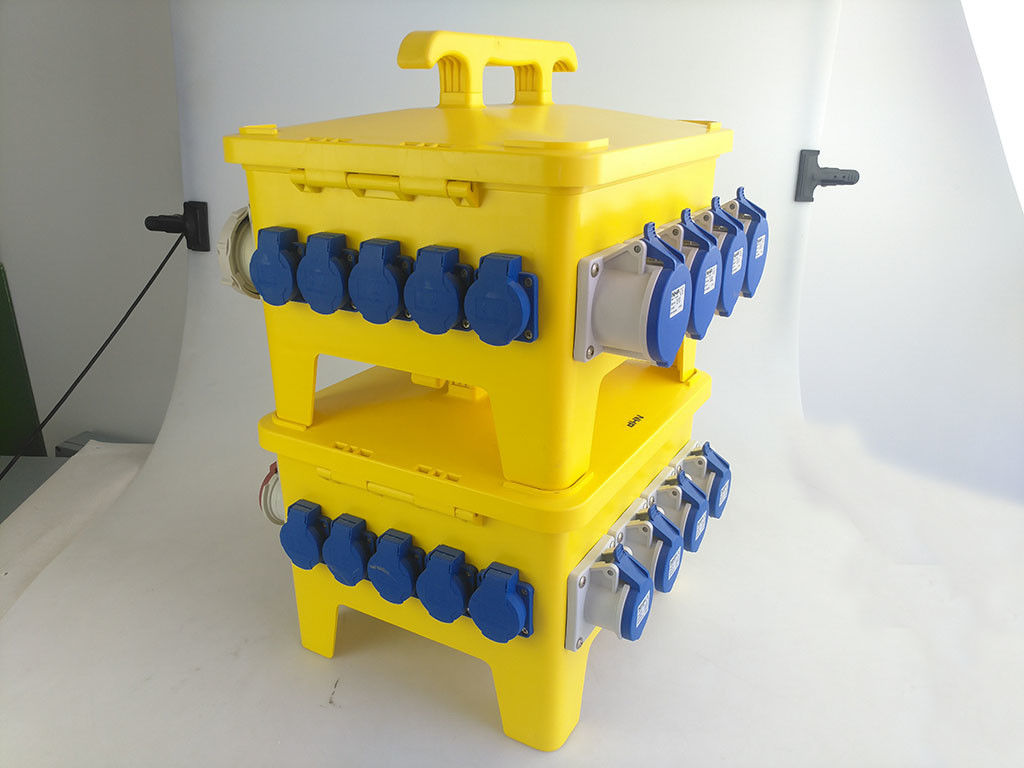

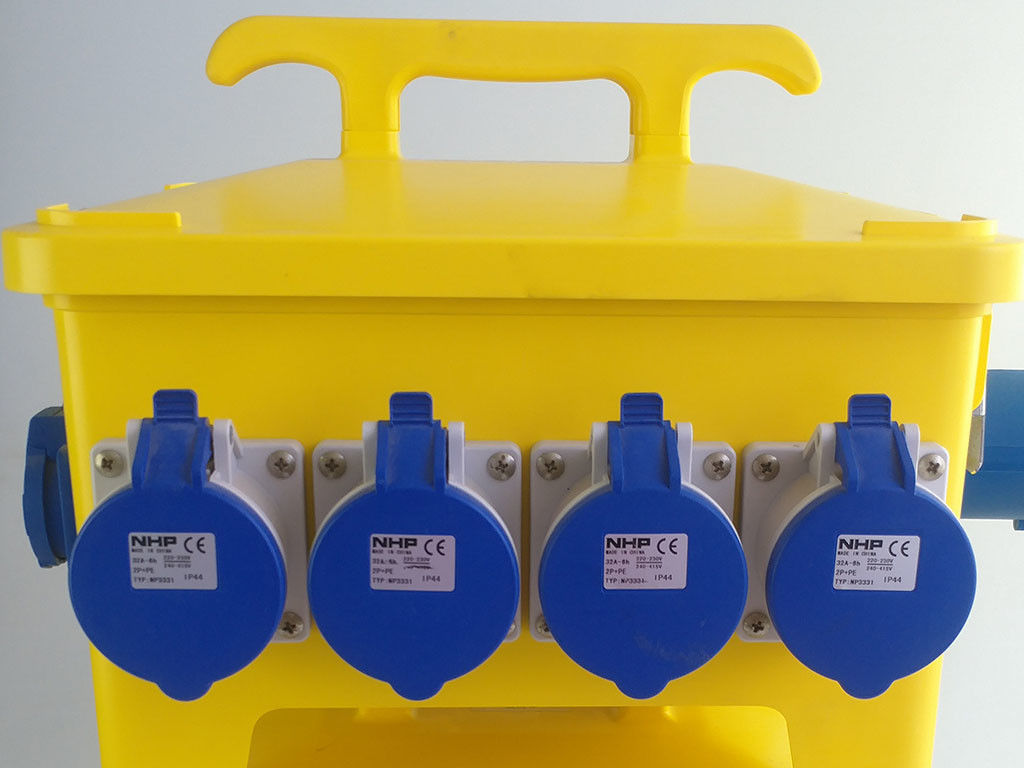

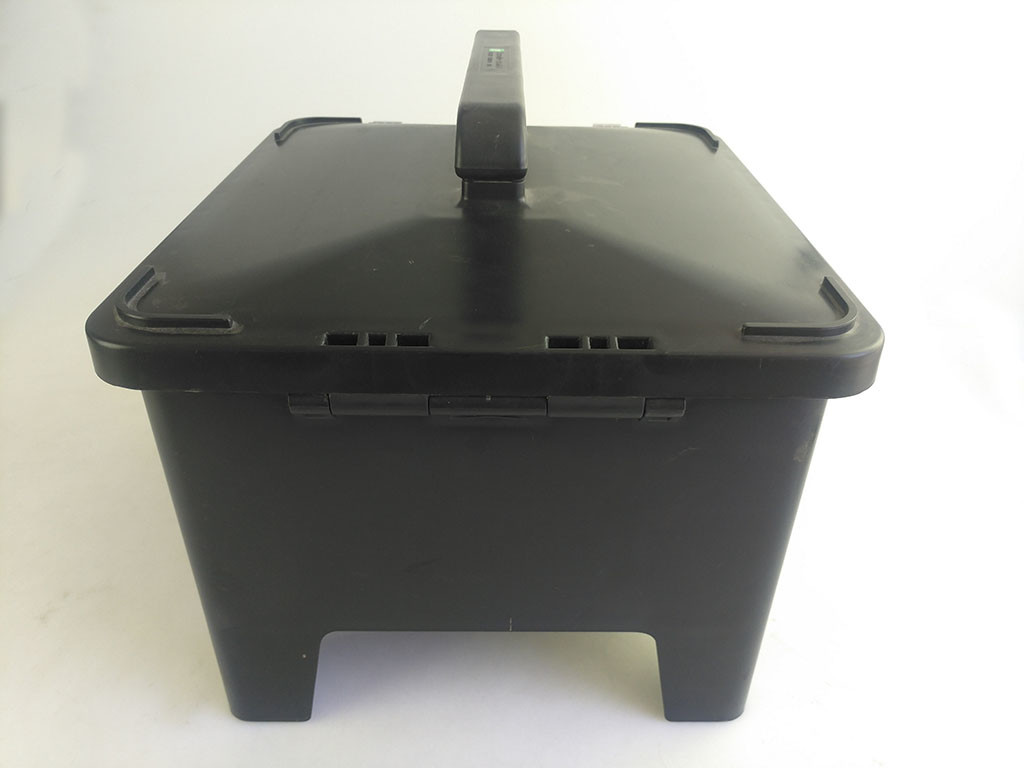

IP 67 Electrical Distribution Box 37 * 34 * 33cm Dimension 24 Way Poles 0

IP 67 Electrical Distribution Box 37 * 34 * 33cm Dimension 24 Way Poles 1
