Water Resistance Event Power Distribution Box , 13.5kg Weight Temp Power Spider Box

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP24
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene PE Poles: 24 Ways
Dimension: 37*34*33cm Net Weight: 13.5kgs
IP Grade: IP66 Waterproofing Color: Yellow
Highlight:

electric spider box

,

event power distribution


Product Description

24-ways IP66 Water Resistance Polyethylene Simplified Handling Pagoda Enclosure with Industrial Plugs and Sockets



Application



Combination socket box is based on enclosure series products, produced with high quality Germany CEE socket. It is a high power supply device of high protection degree and multi-function.



Features & Benefits



  • Meets the requirements for construction site use
  • Meets the standards for open-neutral socket protection for enhanced safety
  • Heavy duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion for years of trouble-free service versus painted metal
  • Thermal magnetic circuit breakers are located under a heavy duty rubber, waterproof, self-closing lid for enhanced breaker protection



Markets Served



These power distribution boxes are wildly used in:

  • Coal mines
  • machinery
  • textile
  • ports



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply plug  2 * 63A / 415V 5 pins IP67  CEE panel mounted socket  1 * 4P 63A 30mA RCD
 4 meters 5*10mm2 cable  1 * 32A / 415V 5 pins IP67  CEE panel mounted socket  1 * 3P 32A MCB
   4 * 16A / 415V 5 pins IP67  CEE panel mounted socket  4 * 1P 32A MCB
   1 * 16A / 415V 3 pins IP67  CEE panel mounted socket  1 * 3P 16A MCB
     2 * 1P 16A MCB



Product Pictures

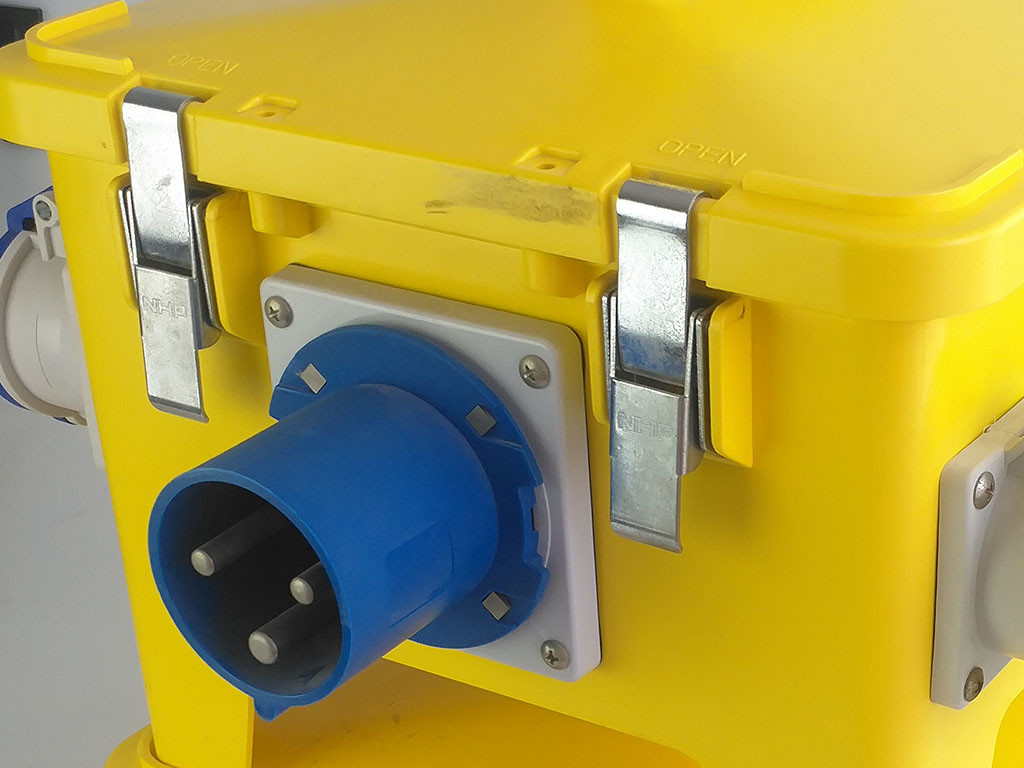

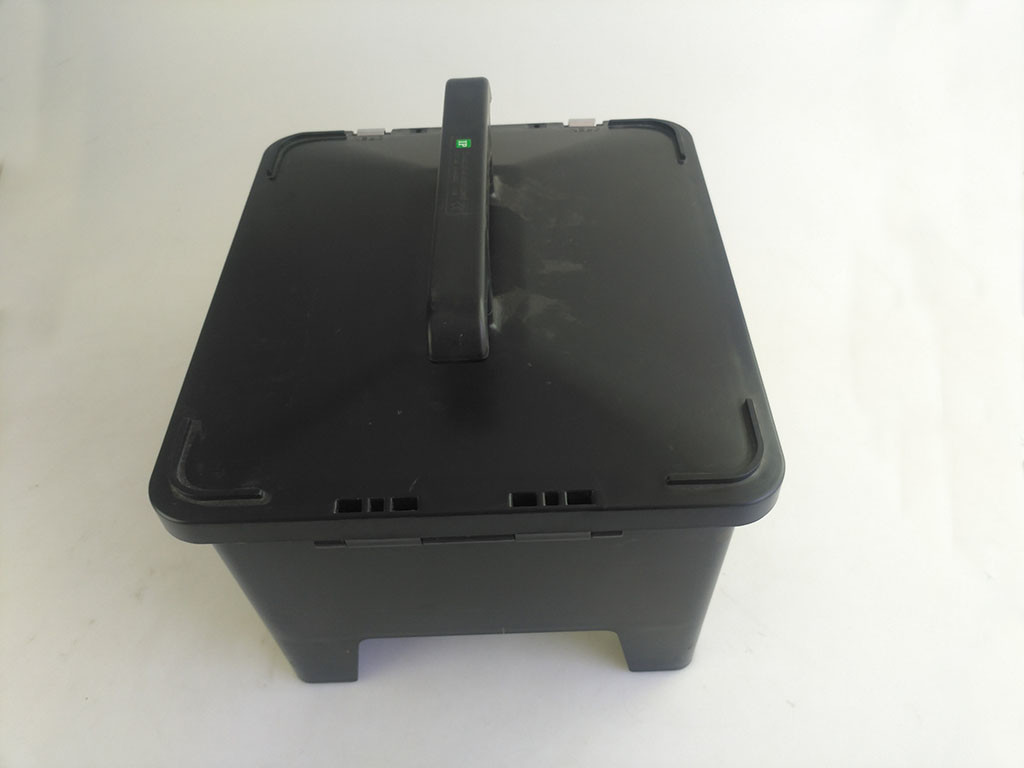

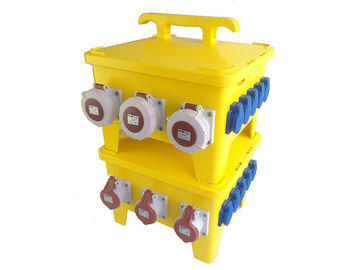

Water Resistance Event Power Distribution Box , 13.5kg Weight Temp Power Spider Box 0

Water Resistance Event Power Distribution Box , 13.5kg Weight Temp Power Spider Box 1
