| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MK2 |
| Minimum Order Quantity: | 10 sets |
| Packaging Details: | Packed by paper carton with pallet |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 units / month |
| Material: | Heavy-duty Molded PE Enclosure | Rated Voltage: | 380~415V |
|---|---|---|---|
| Protection Grade: | IP66 Waterproof | Product Weight: | 16kgs |
| Dimension: | 0.42*0.42*0.54m (L*W*H) | Color: | Orange |
| Highlight: | power spider box,event power distribution |
||
Weatherproof Customized Portable Electrical Distribution Box with MCB, industrial sockets IP66
Application
Designed to be the most versatile portable distribution box, it is fed from a generator or panel and can accept up to (13) cords. The distribution box is extremely compact and used to power audio equipment, computers, lights and tools.
Features & Benefits
Markets Served
Specification
| Input | Output | Circuit Breaker |
| 1 * 125A / 415V supply industrial panel mounted plug | 1 * 63A / 415V panel mounted socket | 1 * 4P 63A MCB |
| without cable | 1 * 32A / 415V panel mounted socket | 1 * 4P 32A MCB |
| 3 * 32A / 230V panel mounted socket | 3 * 2P 32A RCBO | |
| 9 * 16A / 230V panel mounted socket | 9 * 2P 16A RCBO |

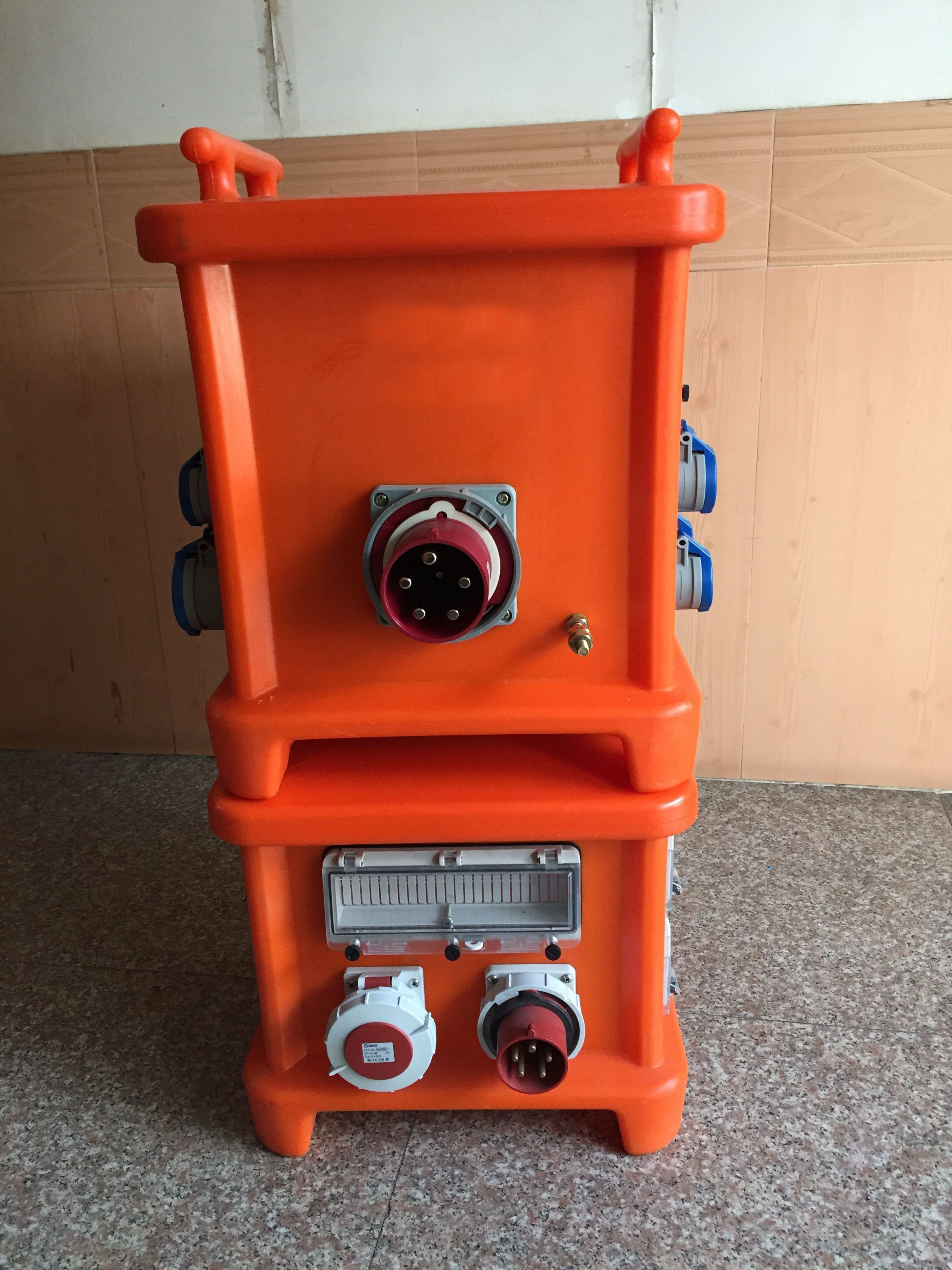

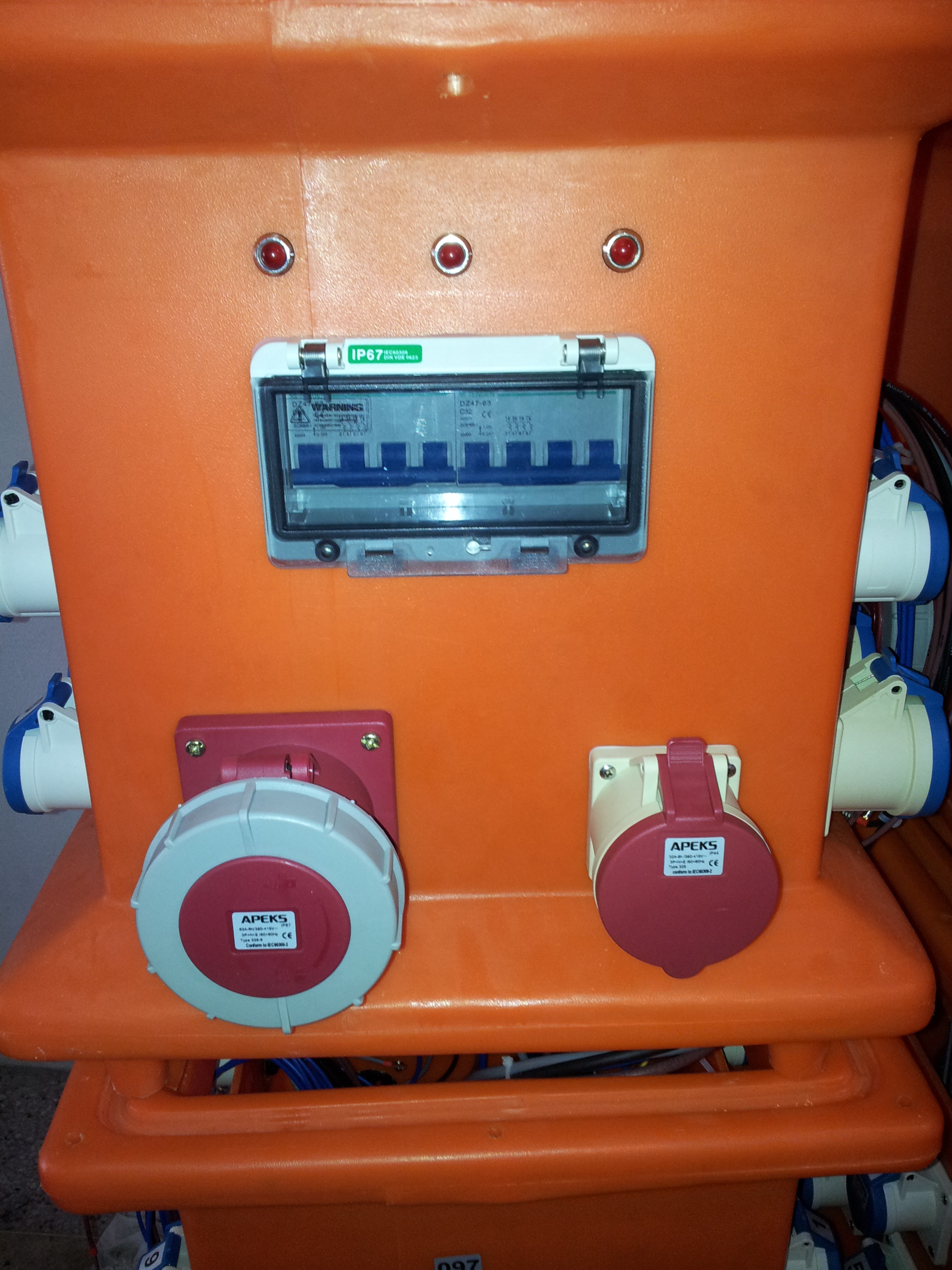

Product Pictures
