| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | EN60439-4, IEC60529, SAA |
| Model Number: | MP24 |
| Minimum Order Quantity: | 15 set |
| Packaging Details: | Packed by carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000sets / month |
| Material: | Polyethylene PE | Poles: | 24 Ways |
|---|---|---|---|
| Dimension: | 37*34*33cm | Net Weight: | 13.5kgs |
| IP Grade: | IP66 Waterproofing | Color: | Yellow |
| High Light: | electric spider box,power spider box |
||
24Poles IP66 Waterproof Rubber Simplified Handling Movable Enclosure with Overcurrent Protection
The Portable Distribution Box is in line with relative IEC standards, which is for electrical Industrial (50-60Hz, Voltage not higher than 660V). At the same time, they are with circuit protection like overload, short circuit and current leakage and provide the power outlets for electrical equipments.
The Portable Distribution Box are suppressed by special synthetic material (PC) in one tIme which has the sum of features: high hardness, stable size, good insulation, good thermal stability and chemical stability (resistant mineral acids, carbohydrates, saturated fat, petrol, fats and oils erosion stability), flame retardant (the material is non-flammable and it can be self-extinguishing after combustion fire).
These boxes are wildly used in oil, chemical industry, metallurgy, power plants, coal mines, machinery, textile, ports, docks and other industries, specifically for maintenance in the tunnel range of rail transit.
| Input | Output | Circuit Breaker |
| 1 * 63A / 415V 5 pins CEE supply plug | 2 * 63A / 415V 5 pins IP67 CEE panel mounted socket | 1 * 4P 63A 30mA RCD |
| 5 meters 5*10mm2 cable | 2 * 32A / 415V 5 pins IP67 CEE panel mounted socket | 2 * 3P 32A MCB |
| 3 * 16A / 415V 5 pins IP67 CEE panel mounted socket | 3 * 1P 32A MCB | |
| 2 * 16A / 415V 3 pins IP67 CEE panel mounted socket | 2 * 3P 16A MCB | |

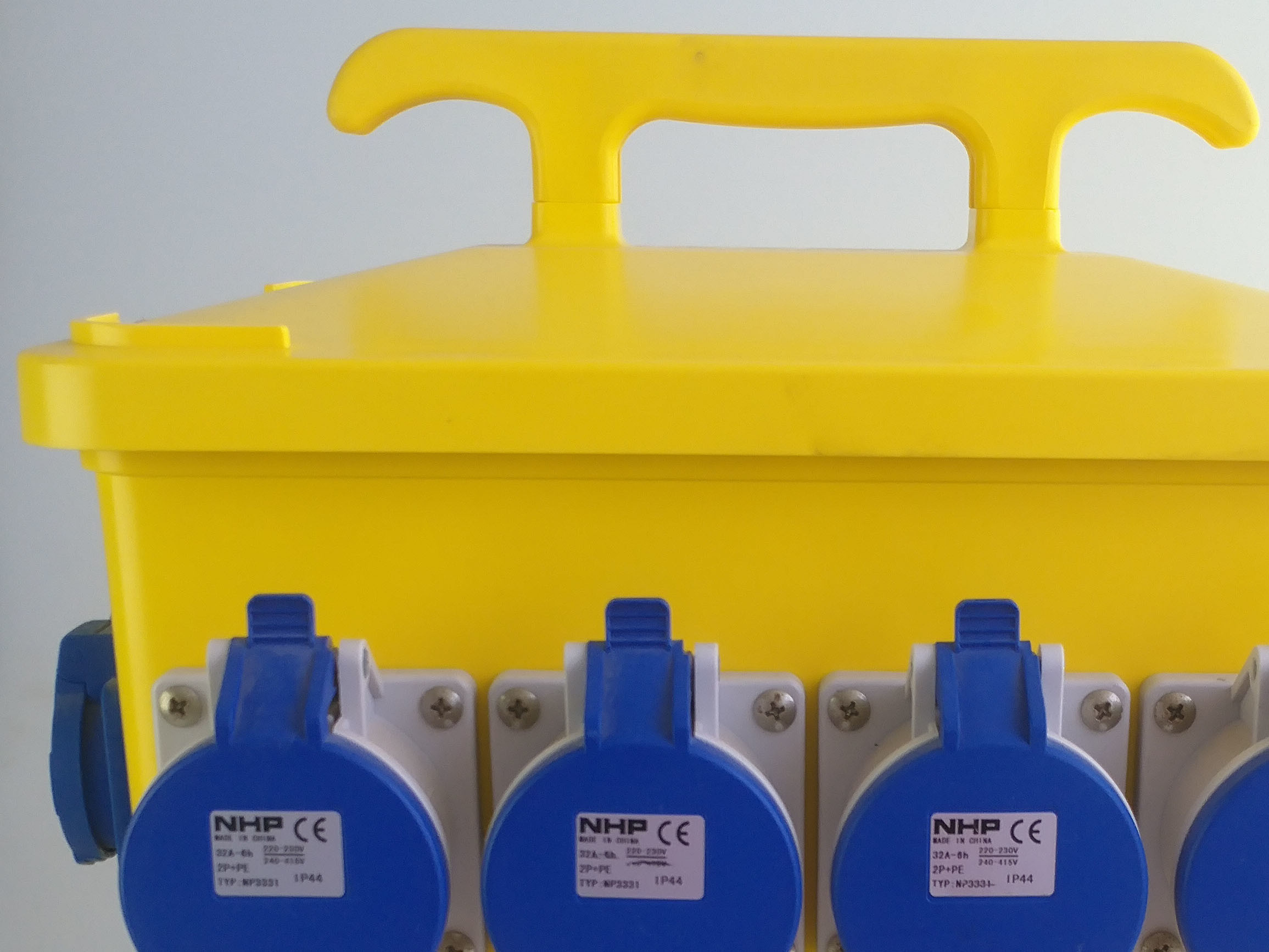

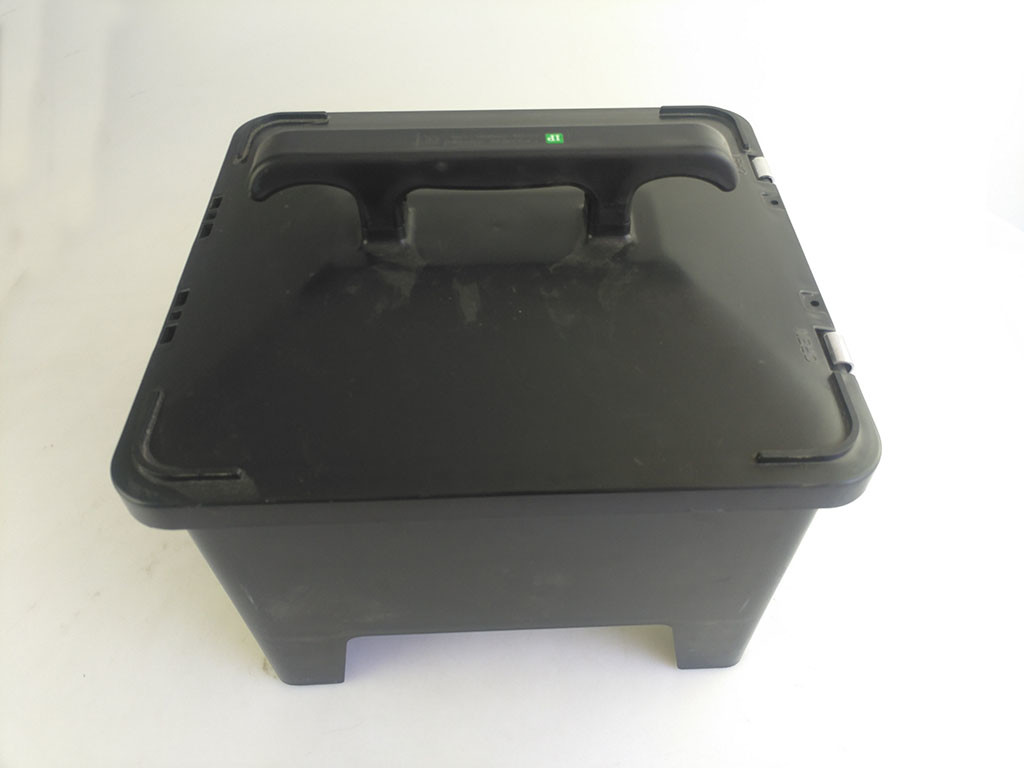

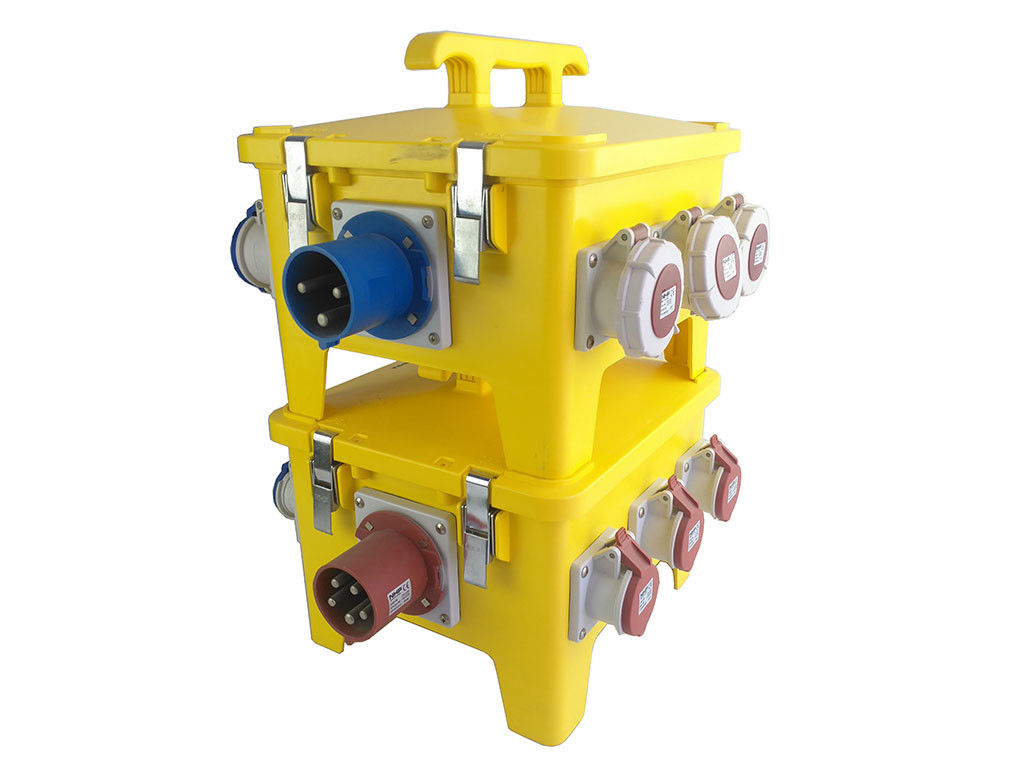

Product Pictures
