| Place of Origin: | China |
|---|---|
| Brand Name: | PowerSyntax, Syntax, zucc |
| Certification: | SAA, CE, RoHs, ISO 9001 |
| Model Number: | MP36 |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Packed by hard paper cartons |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T |
| Description: | Portable Power Distribution | Material: | PC |
|---|---|---|---|
| Color: | Yellow (black Is Optional) | IP Rating: | IP67 Weather- And Age-resistant |
| Incoming: | 5P 63A IP67 Inlet | Outgoing: | 1*5P 32A Sockets +2*5P 16A Sockets + 2*3P 32A Sockets + 4*3P 16A Sockets |
| Protection: | All Protected By ABB RCBO | Customize: | Accepted |
| Application: | For Events, Music, Sports, Generator Rental And Etc. | Type: | Heavy-duty |
| Highlight: | 380V Portable Electrical Distribution Box,Welding Machines Electrical Distribution Box,PC Portable Electrical Distribution Box |
||
Syntax Safety Kit Box 380V for Welding Machines with Residual Current Breaker with Over Load Protection Daisy Chained
Application
The CEE Weather Proof Socket and Plug series is designed to prevent incorrect insertion with high impact resistant and excellent electric insulation. Other feature of this product includes dustproof, damp proof, waterproof and corrosion resistant. This product is perfect for mining, petrochemical industry, construction, wharf, factory, exhibition center and many other industries which requires high heat resistant plugs & sockets.
Features & Benefits
Material are from Flame resistant PC, Galvanised Copper.
Comes with individual circuit breaker (RCBO).
Standard Certification : IEC60309-1 IEC60309-2 CE, CCC
Protection Degree : IP 67
Safety Information
The RCBO should be tested each day before work commences.
Connect the equipment to the power supply as above with the RCBO ON/OFF switch (behind clear plastic panel) to OFF. And press the test button on RCBO. The RCBO should trip out. If it doesn’t, check that there is power to the RCBO. If there is, the RCBO unit is faulty. It should not be used but returned to HYPER after service team immediately for inspection.
ANY QUERIES ABOUT THE CORRECT OR SAFE FUNCTIONING OF THE EQUIPMENT SHOULD BE REFERRED TO THE SUPPLIER.
Specification
1. Dimension of Empty Box: 478*340*330mm
2. Incoming: 5P 63A IP67 Inlet by Mennekes
3. Outgoing 1: 1*5P 32A Sockets by Mennekes
4. Outgoing 2: 2*5P 16A Sockets by Mennekes
5. Outgoing 3: 2*3P 32A Sockets by Mennekes
6. Outgoing 4: 4*3P 16A Sockets by Mennekes
7. Protection 1: 1*4P 32A 30mA RCBO by ABB
8. Protection 2: 2*4P 16A 30mA RCBO by ABB
9. Protection 3: 1*2P 32A 30mA RCBO by ABB
10. Protection 3: 2*4P 16A 30mA RCBO by ABB
11. Extension Cable: 3 meters long 5*16mm2 with 5P 63A IP44 Plug and Connector by Mennekes

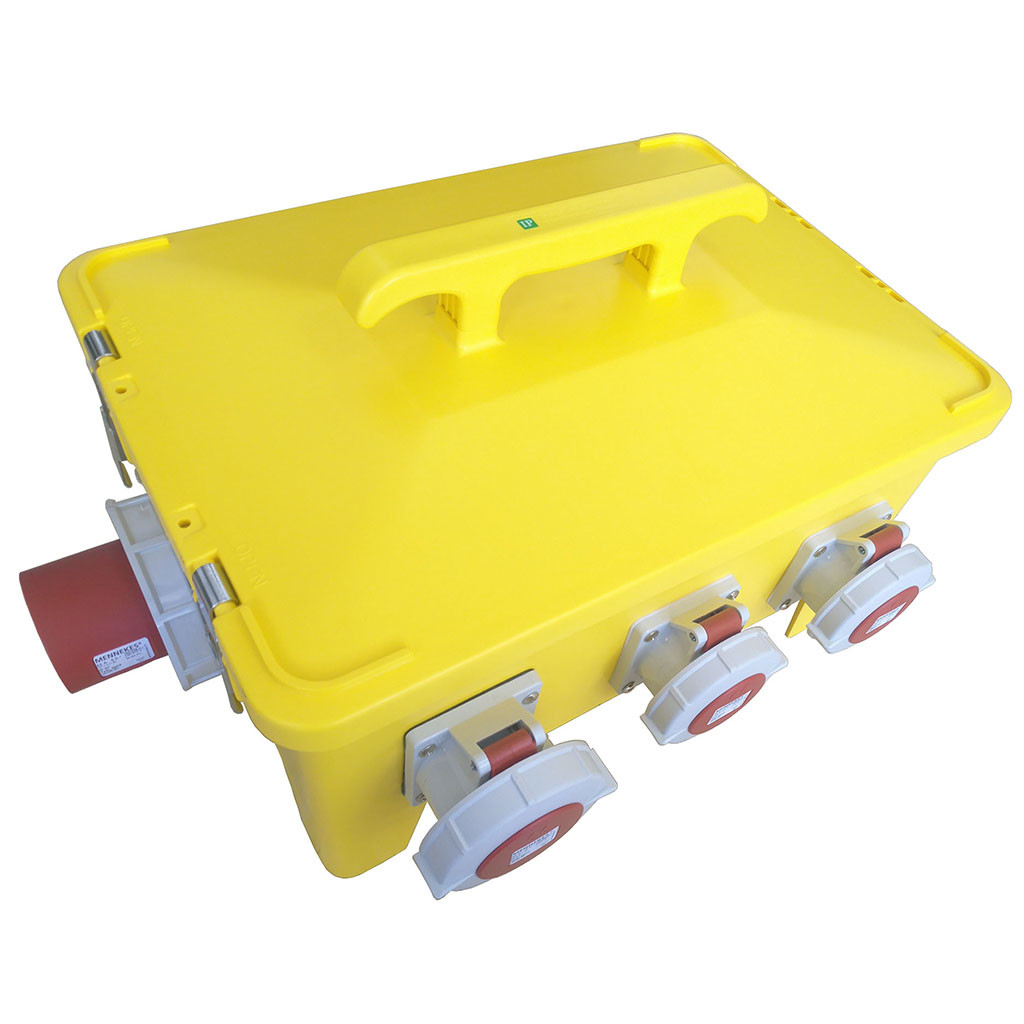

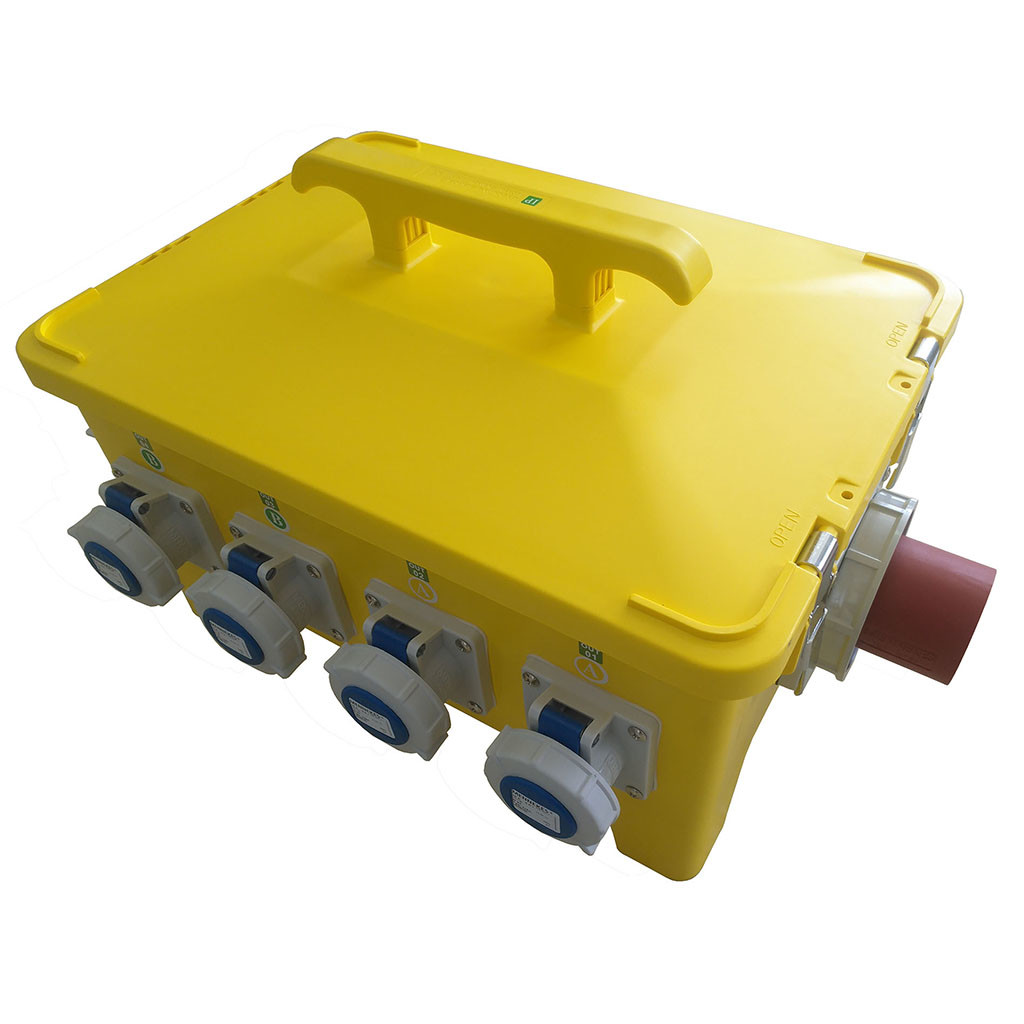

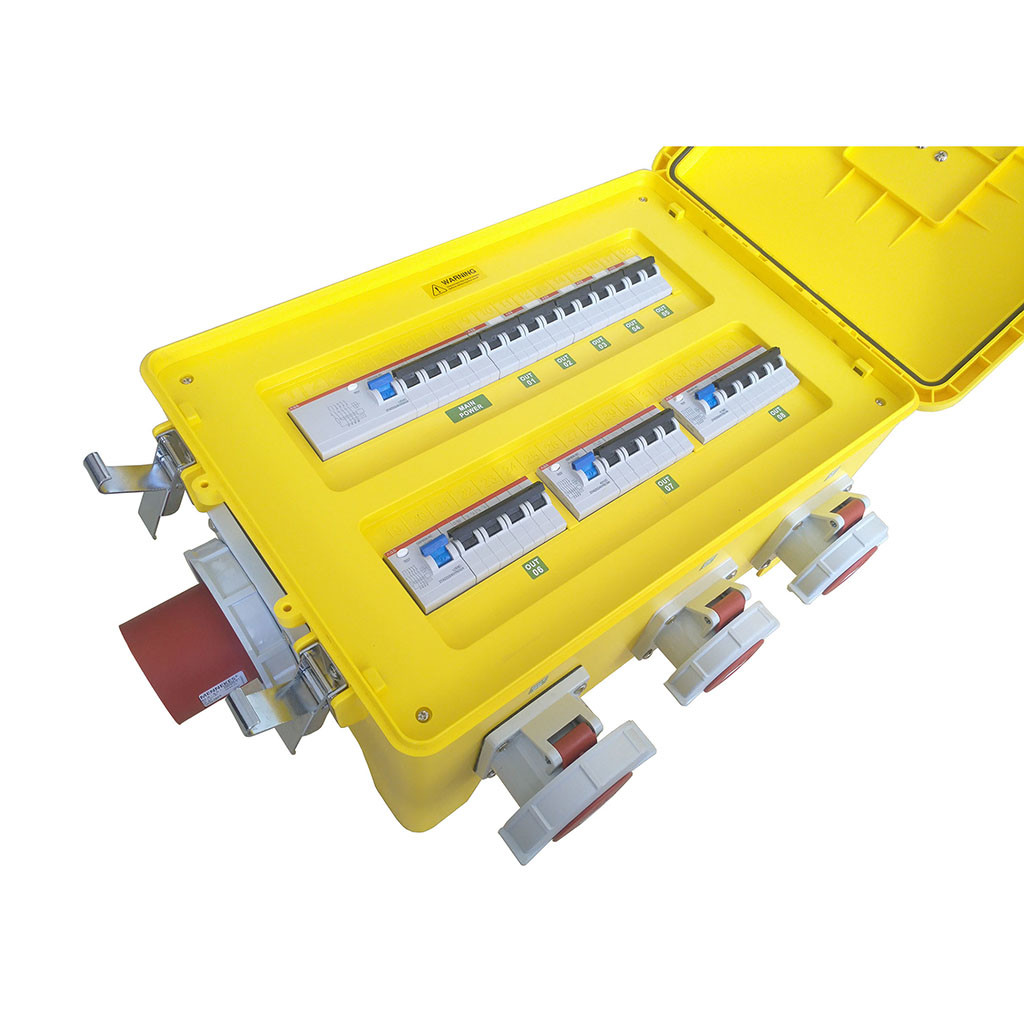

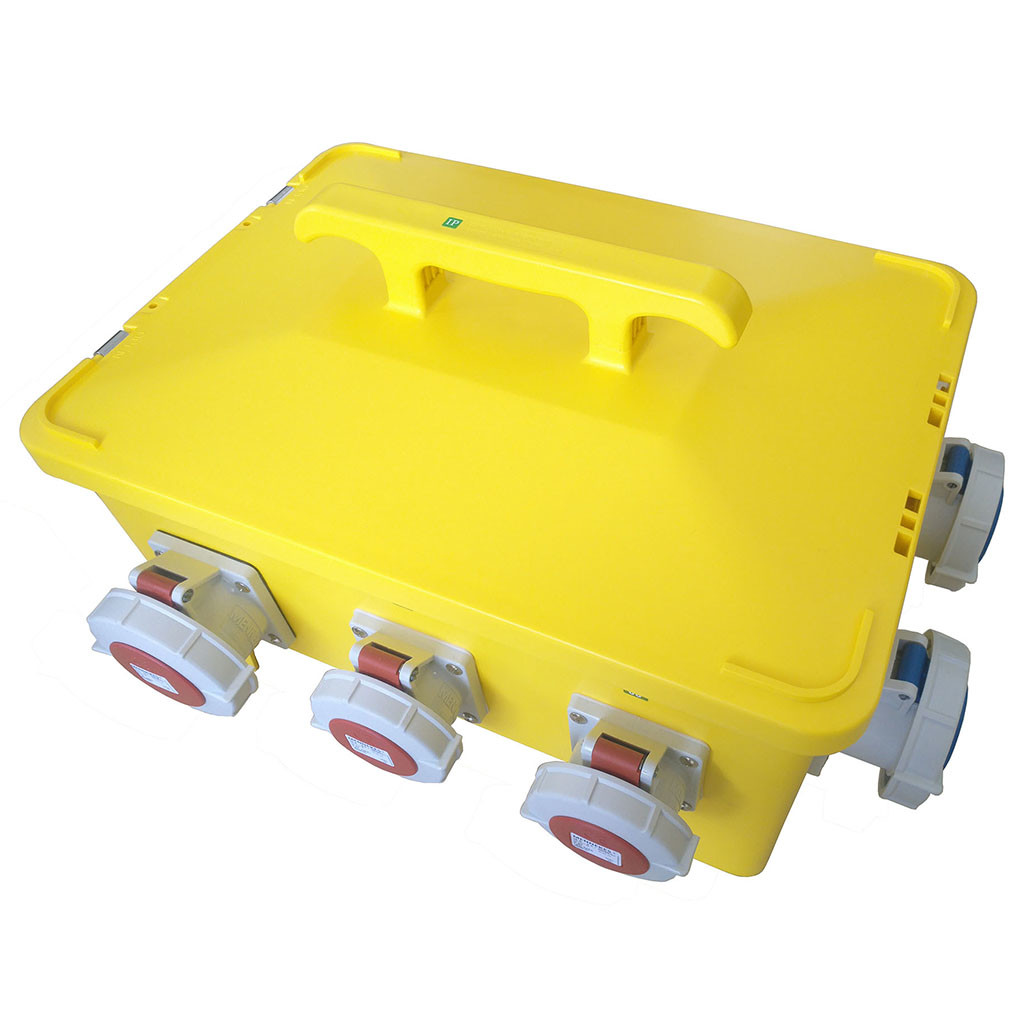

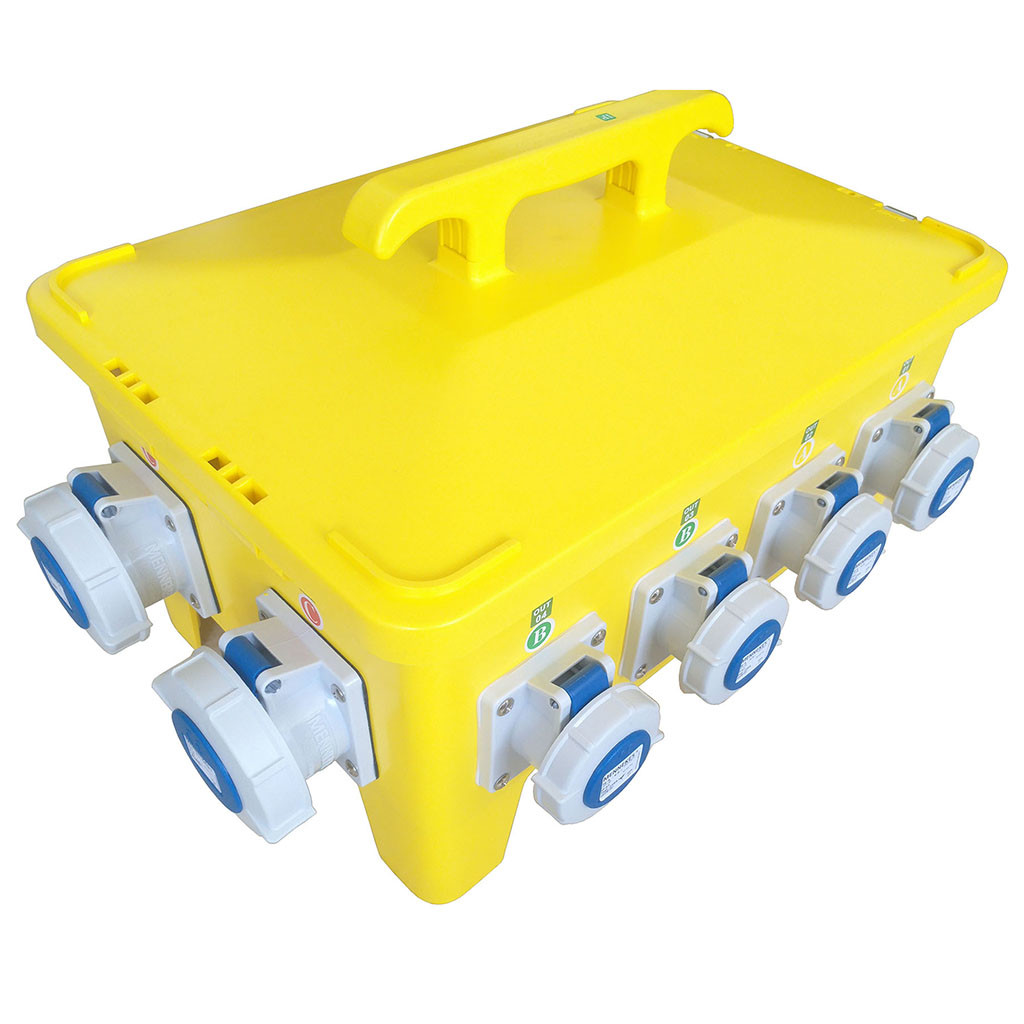

Product Pictures
