IP66 Water Tight Mobile Power Distribution Box Heavy Duty Rubber Housing

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: PE Dimension: 370*340*330mm
Voltage: 220 Volts Current: 125 Amps
Protection Degree: IP 66 Waterproof Color: Black
High Light:

construction spider box


stage power distribution box

Product Description

36 Pole IP66 Water Tight Heavy Duty Rubber Temporary Power Distribution Black Spider Box with Overcurrent Protection




They feature weatherproof covers to prevent nuisance tripping caused by moisture entering the contacts, a clear port hole panel for viewing circuit-breaker status, an a reinforced metal housing and legs that withstand abuse.


Features & Benefits


  • Heavy-duty PE legs position the box at the NEC regulatory while allowing for storage and transport stacking
  • Multiple Configuration Alternatives Available
  • Lifting DIN rails: We can withdraw the DIN rail and install the circuit breaker and other articles on the DIN rail and then send the device into the Power distribution box which provides a large smooth wiring space significantly for easy the insertion as well as connection of large cables.
  • The product weighs approximately 1/4 the weight of an iron box and can be easily installed or moved,The product is free from corrosion, carries superior insulation.


Markets Served


  • docks
  • maintenance in the tunnel range of rail transit
  • Construction sites
  • Exhibition center




Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE Receptacles  1 * 4P 63A 30mA RCD
   1 * 32A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 63A MCB
   2 * 16A / 415V 5 pins IP67  CEE Receptacles  1 * 3P 32A MCB
   2 * 16A / 415V 3 pins IP67  CEE Receptacles  2 * 3P 16A MCB
   4 * 16A / 230V SCHUKO  socket outlets  6 * 1P 16A MCB


Product Pictures

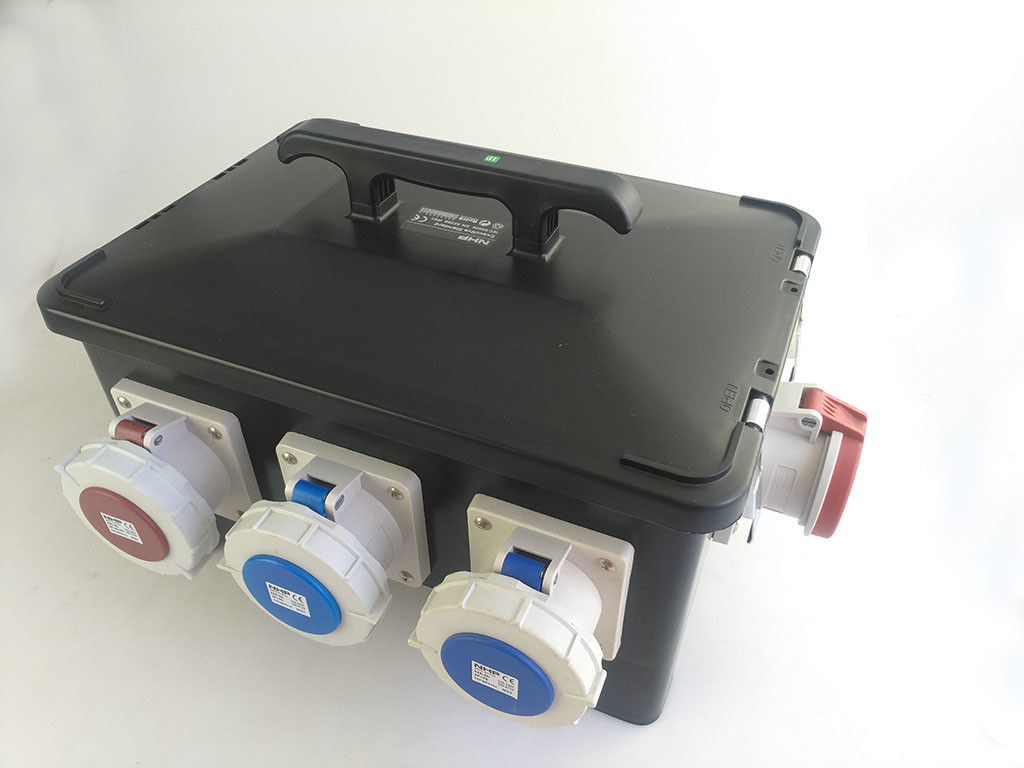

IP66 Water Tight Mobile Power Distribution Box Heavy Duty Rubber Housing 0

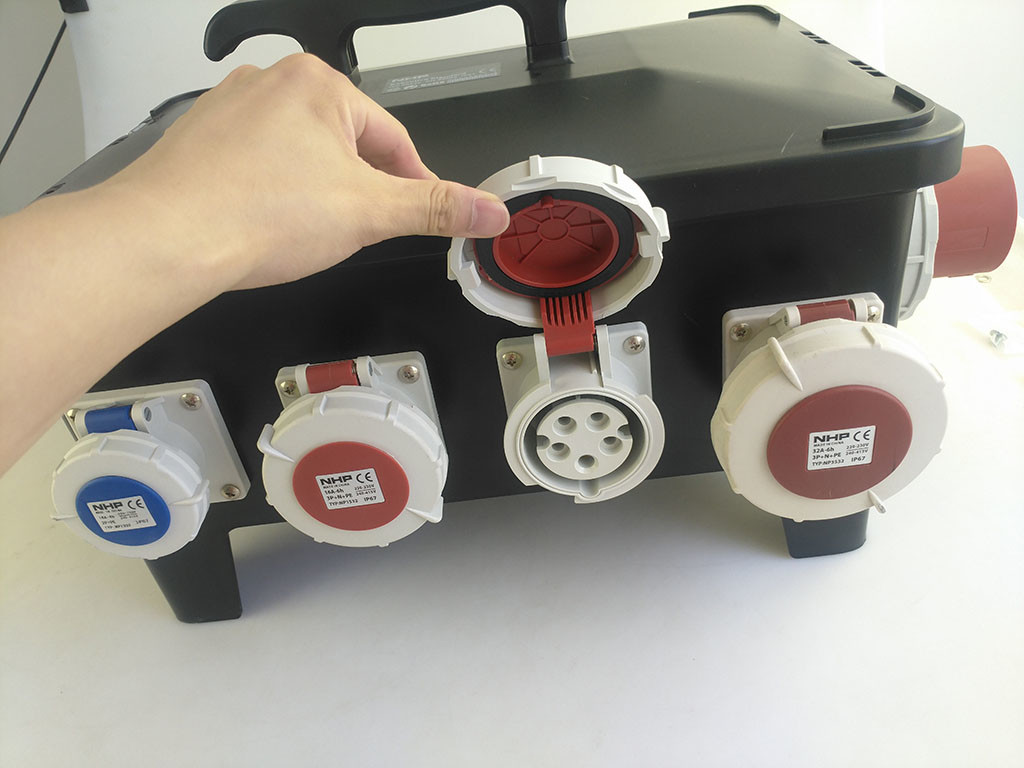

IP66 Water Tight Mobile Power Distribution Box Heavy Duty Rubber Housing 1
