products

Black Mobile Power Distribution Box IP65 Rain Resistance 36 Way Poles

Basic Information
Place of Origin: China
Brand Name: HYPER
Certification: EN60439-4, IEC60529, SAA
Model Number: MP36
Minimum Order Quantity: 15 set
Packaging Details: Packed by carton with pallet
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets / month
Detail Information
Material: Polyethylene Poles: 36-way
Rated Voltage: 220-230 / 240-415 Volts Rated Current: 125A
Protection Degree: IP66 Weather Protected Color: Black
High Light:

stage power distribution box

,

portable power outlet box


Product Description

36 Way iP65 Rain Resistance Impact Free Portable Enclosure Black Power Panels with Industrial Plugs and Sockets



Application



HYPER's Portable Power Distribution Centers have been designed to be the easiest power box you will ever plug in. All power boxes come standard with the correct Amp overcurrent protection.



Features & Benefits



  • Weather resistant socket helps to prevent unsafe operating conditions and nuisance tripping
  • Duplex receptacles are color coded for phase identification
  • Adjustable circuit breakers are mounted under a hinged lid for easy access and enhanced protection
  • Easy for connection to lighting and other equipment



Markets Served



  • mining
  • marine terminals
  • agriculture
  • household



Specification



Input Output Circuit Breaker
 1 * 63A / 415V 5 pins CEE  supply surface mounted plug  1 * 63A / 415V 5 pins IP67  CEE flush mouted socket  1 * 4P 63A 30mA RCD
 2 meters 5*10mm2 cable  1 * 32A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 63A MCB
   1 * 16A / 415V 5 pins IP67  CEE flush mouted socket  1 * 3P 32A MCB
   3 * 16A / 415V 3 pins IP67  CEE flush mouted socket  1 * 3P 16A MCB
   5 * 16A / 230V SCHUKO  socket outlets  8 * 1P 16A MCB



Product Pictures

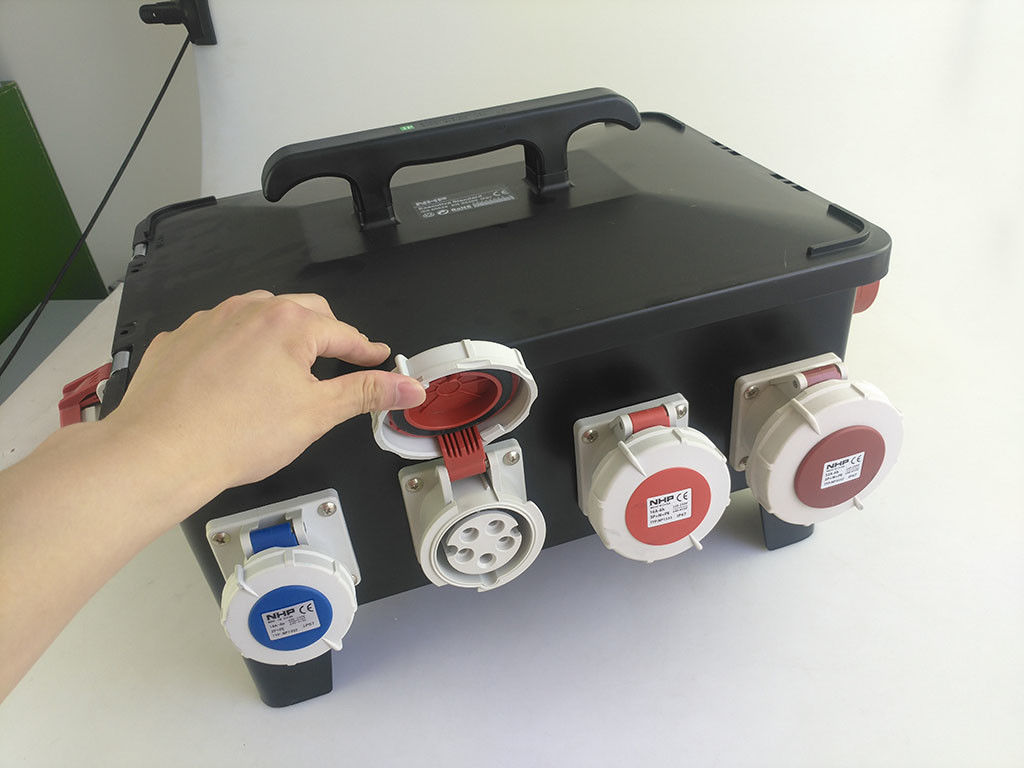

Black Mobile Power Distribution Box IP65 Rain Resistance 36 Way Poles 0

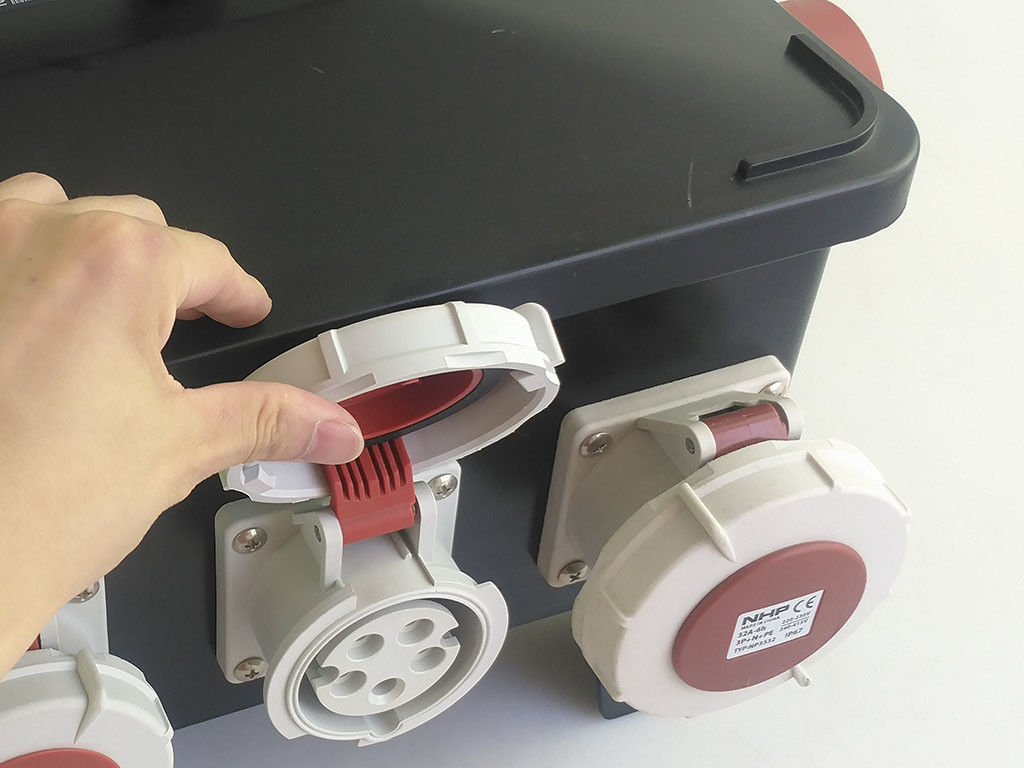

Black Mobile Power Distribution Box IP65 Rain Resistance 36 Way Poles 1
