Ampere: | 16 A | Poles: | 2 P |
---|---|---|---|
Voltage: | 20-40 V | Earth Position: | 12 H |
Hertz: | 50-60 Hz | Connection Technology: | Screwless - SafeCONTACT |
Contact: | Standard | Protection Type: | IP 44 Waterproof |
Highlight: | low voltage plugs and sockets,industrial power socket outlet |

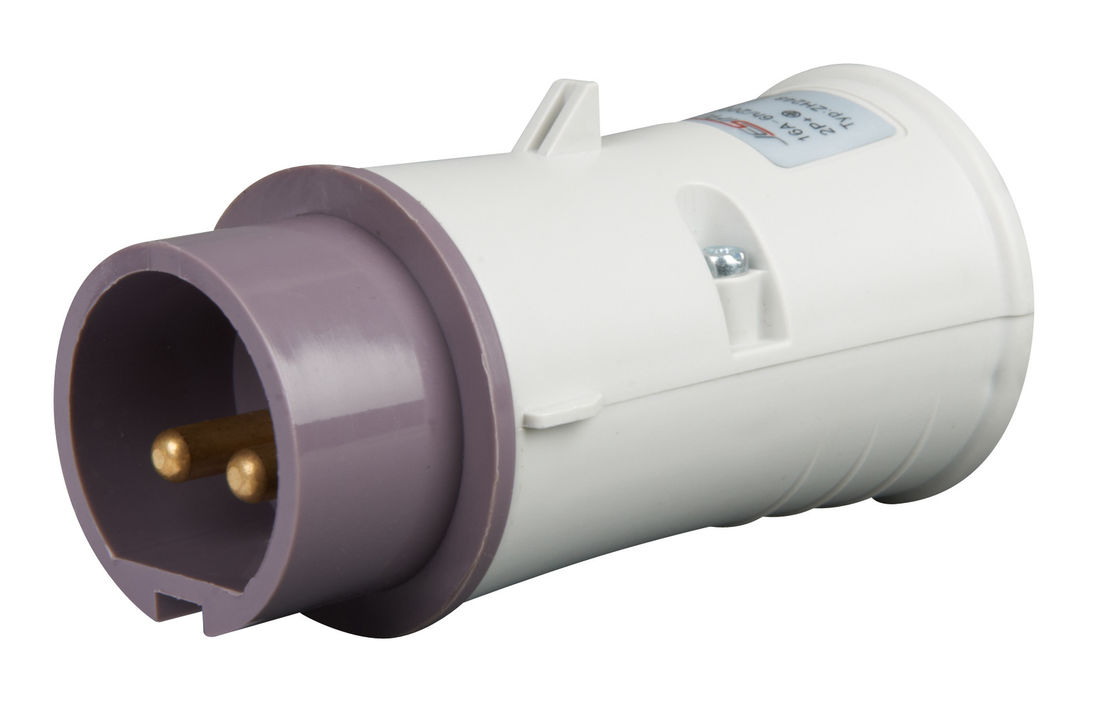

2P16A IP44 Extra Low Voltage Plugs and Connectors Small Voltage 3rd Generation Industrial Plugs And Sockets part no. 629
Description:
Extra low voltage Plugs, connectors and socket outlets.
Using extra low voltage is a way how to protect from electrical shock. Extra low voltage is used where the risk is high: swimming pools, wandering-lead hand lamps, and other portable appliences for outdoor use, etc. The plugs and sockets are intended for an operating voltage not exceeding 50 V.
Products follows standards IEC 60 309-1 and IEC 60 309-2.
Benefits:
A complete range of products to supply circuits with risks of direct and indirect contacts with live parts.
1) Housing made up of Self Extinguishing polymer with nickel plated brass & stainless steel screws.
2) IP 44 & IP 67 Protection levels & IK 08 degree protection against mechanical impacts.
3) Easy installation
Wall-mounted near the receiver
Wander version for flexible feeder cable connection
Part no. 629
Technique Parameter:
Current | Poles | 20-25V 50a.60Hz |
40-50V 50a.60Hz |
20-25V 40-50V 100-200Hz |
20-25V 40-50V 300Hz |
20-25V 40-50V 400Hz |
20-25V 40-50V 400-500Hz |
Package Unit | Weight |
12h | 12h | 4h | 2h | 3h | 11h | PCS/BOX | G/PC | ||
16A | 2 | 629 | 630 | 10 | 140 | ||||
3 | 636 | 637 | 638 | 10 | 154 | ||||
Current | Poles | a | b | c | d | e | f | g | |||||||
16A | 2 | 130 | 102 | 22.3 | 50 | 41.5 | 17.5 | 58.2 | |||||||
3 | 130 | 102 | 22.3 | 50 | 41.5 | 17.5 | 58.2 | ||||||||
Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 |
Product Dimension:
