Rated Current: | 16AMP | Rated Voltage: | 20-25Volts |
---|---|---|---|
Poles: | 2P | Earth Position: | 12h |
Color: | Purple | Protection Grade: | IP 44 Weather Resistance |
Highlight: | industrial type socket,industrial power socket outlet |

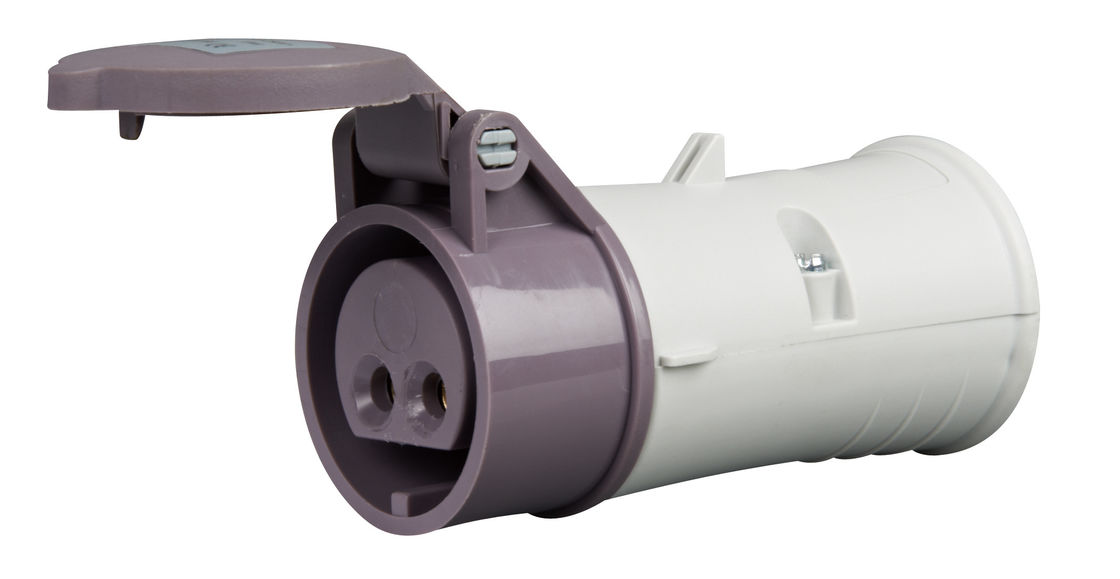

2P16A IP44 Watertight Low Voltage Connector with Cover Small Volts Industrial Socket Outlet part no. 681
Description:
Extra low voltage
Plugs, connectors and socket outlets.
Using extra low voltage is a way how to protect from electrical shock. Products follows standards IEC 60 309-1 and IEC 60 309-2.
Extra low voltage is used where the risk is high:
swimming pools, wandering-lead hand lamps, and other portable appliences for outdoor use, etc.
The plugs and sockets are intended for an operating voltage not exceeding 50 V.
Main benefits:
Main features:
Technique Parameter:
Current | Poles | 20-25V 50a.60Hz |
40-50V 50a.60Hz |
20-25V 40-50V 100-200Hz |
20-25V 40-50V 300Hz |
20-25V 40-50V 400Hz |
20-25V 40-50V 400-500Hz |
Package Unit | Weight |
12h | 12h | 4h | 2h | 3h | 11h | PCS/BOX | G/PC | ||
16A | 2 | 681 | 682 | ||||||
3 | 688 | 689 | 690 | ||||||
Current | Poles | a | b | c | d | e | f | |||||||
16A | 2 | 140.6 | 114.8 | 34.9 | 47 | 54 | 66.8 | |||||||
3 | 140.6 | 114.8 | 34.9 | 47 | 54 | 66.8 | ||||||||
Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 |
Product Dimension:
