| Place of Origin: | China |
|---|---|
| Brand Name: | HYPER |
| Certification: | DIN VDE 0623 EN/IEC 60309-2 |
| Model Number: | 1366 |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | packed by standard paper carton |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs / month |
| Current: | 16 Amps | Voltage: | 230 Volts |
|---|---|---|---|
| Poles: | 3 Poles | Earth Position: | 6h |
| Connection Technology: | Screwless - SafeCONTACT | Contact: | Standard |
| High Light: | low voltage plugs and sockets,industrial power socket outlet |
||

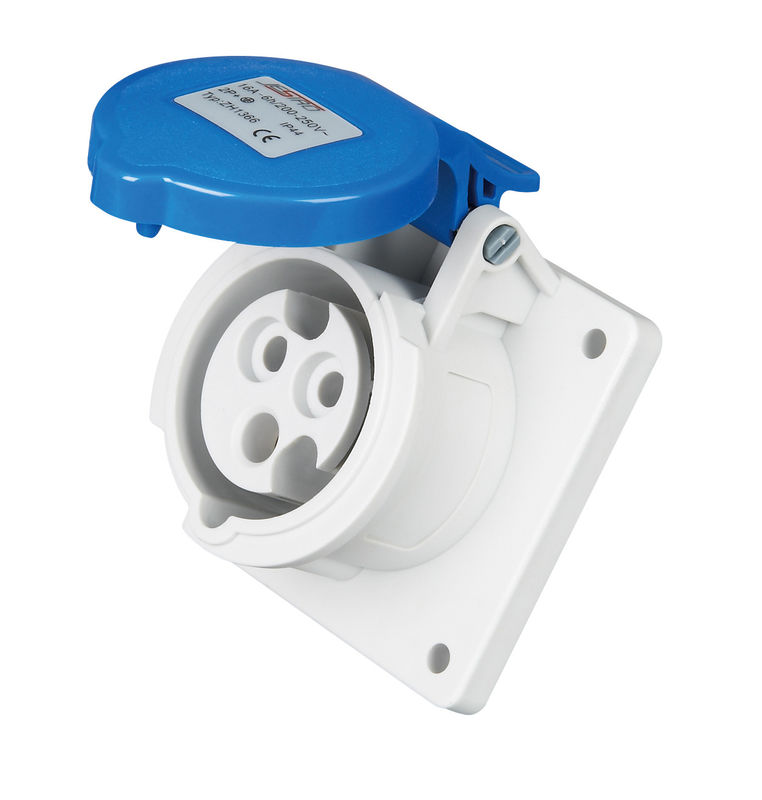

3P16A IP44 Panel Mounted Straight Receptacles with Blue Cover Industrial Socket Outlet part no. 1366
Description:
In Europe, the most common range of heavy industrial plugs are made to IEC 60309 (formerly IEC 309) and various standards based on it (including BS 4343 and BS EN 60309-2). These are often referred to in the UK as CEE industrial, CEE form or simply CEE plugs.
Part no. 1366
Technique Parameter:
| Current | Poles | 110V 50a.60Hz |
230V 50a.60Hz |
400V 50a.60Hz |
500V 50a.60Hz |
>50-500V 100-300Hz |
>50-500V a.300-500Hz |
Package Unit | Weight |
|
3P 4P 5P 4h 4h 4h |
3P 4P 5P 6h 9h 9h |
3P 4P 5P 9h 6h 6h |
3P 4P 5P 7h 7h 7h |
3P 4P 5P 10h 10h 10h |
3P 4P 5P 2h 2h 2h |
PCS/BOX | G/PC | ||
| 16A | 3 | 1628/1365 | 1629/1366 | 1367 | 3054 | 3055 | 10 | 134 | |
| 4 | 1388 | 1389 | 1390 | 1391 | 1392 | 1393 | 10 | 155 | |
| 5 | 1384 | 1386 | 1385 | 3057 | 13059 | 3060 | 10 | 179 |
| Current | Poles | a | b | c | d | e | f | g. | g.1 | h | h1 | k | i | |
| 16A | 3 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 68 | 1 | 28 | 50 | |
| 4 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 77 | 5 | 28 | 54 | ||
| 5 | 75 | 75 | 54 | 60 | 60 | 5.5 | 8 | 2 | 85 | 9 | 28 | 57 | ||
| Conductor cross-sectional area(mm²)Min To Max 1.5-2.5 | ||||||||||||||
